Trend Worktop True Cut Kitchen Worktop Jig Out Of Square Device KWJ/OSD

Trend Worktop True Cut Kitchen Worktop Jig Out Of Square Device KWJ/OSD

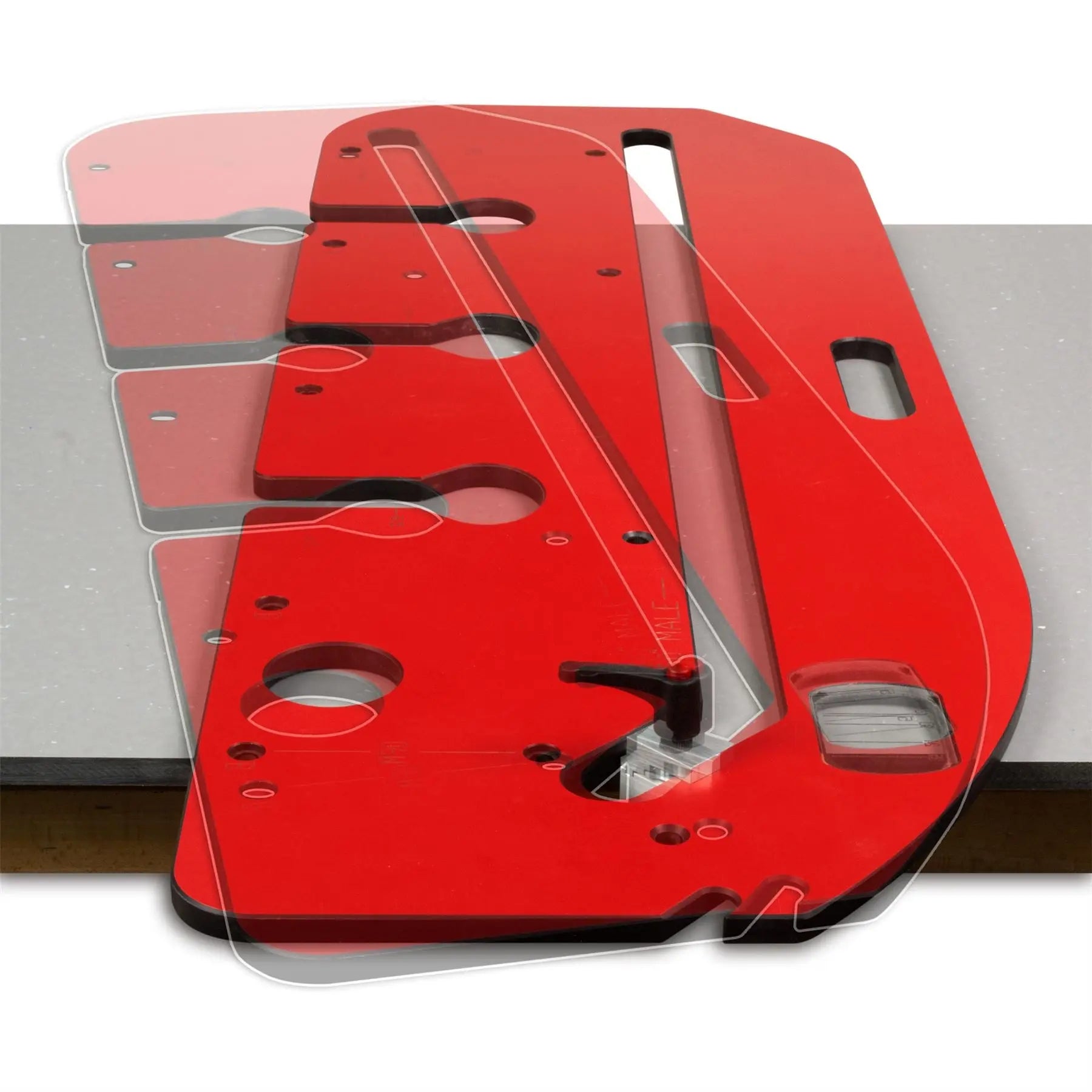

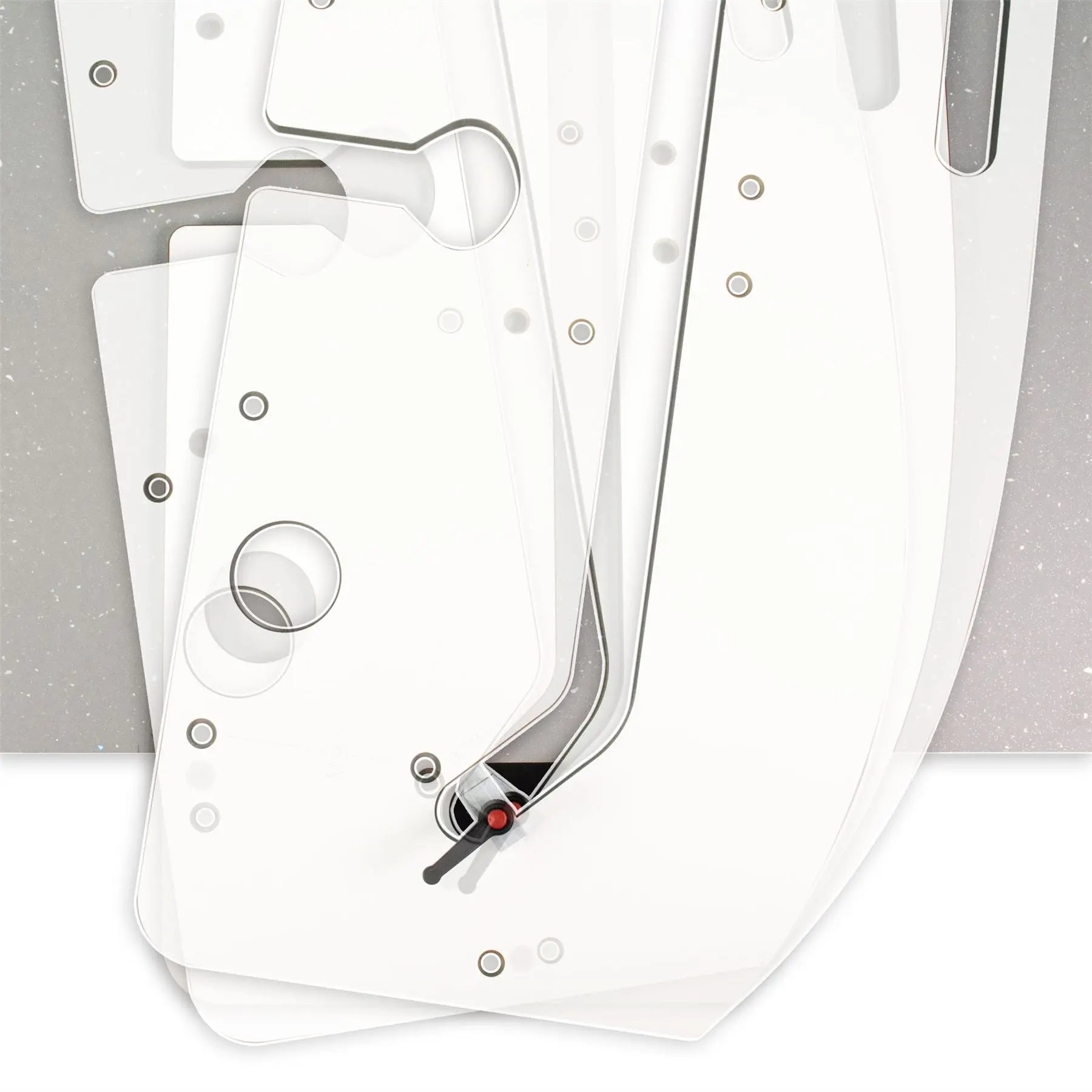

Worktop Jig Accessory for making fast, accurate angled worktop joints to accommodate out of square walls

ADAPTABLE ANGLE RANGE Can be used for acute and obtuse wall angles up to 25 degrees out of square

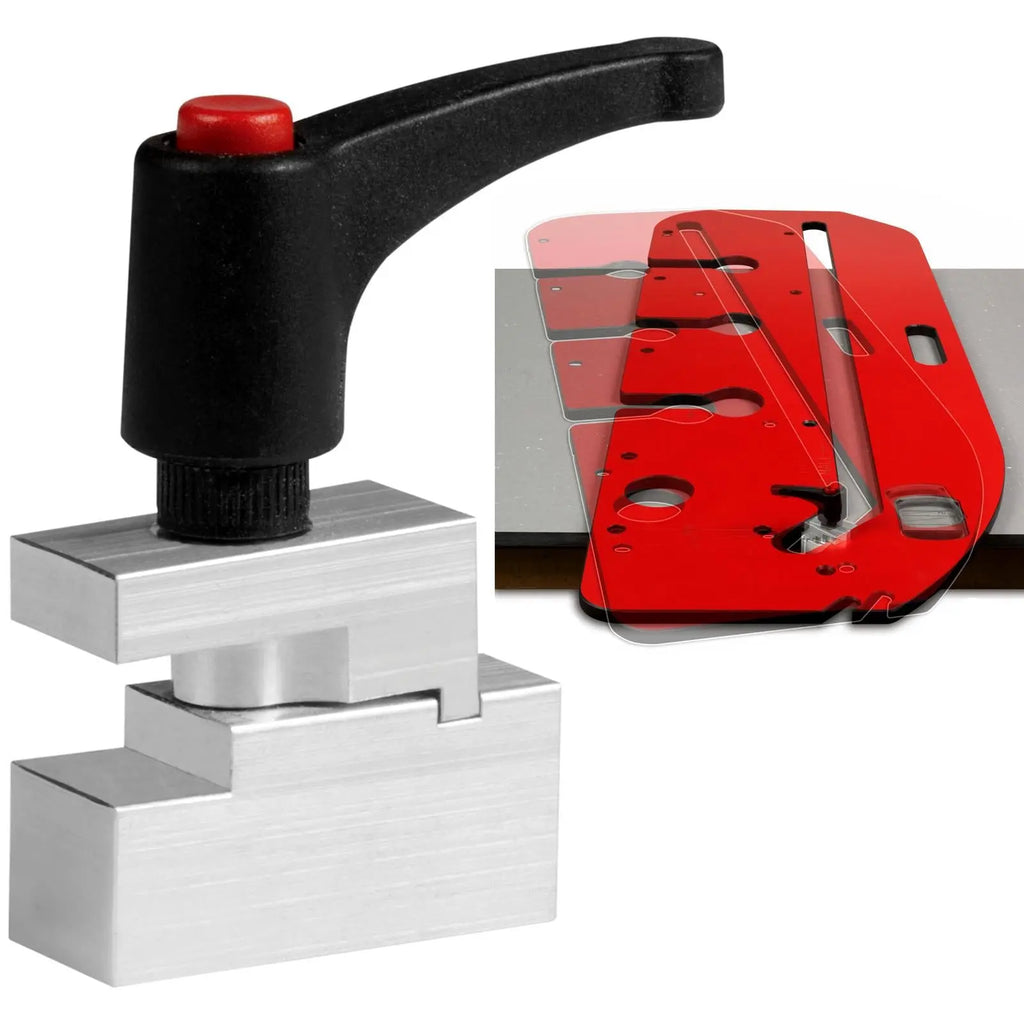

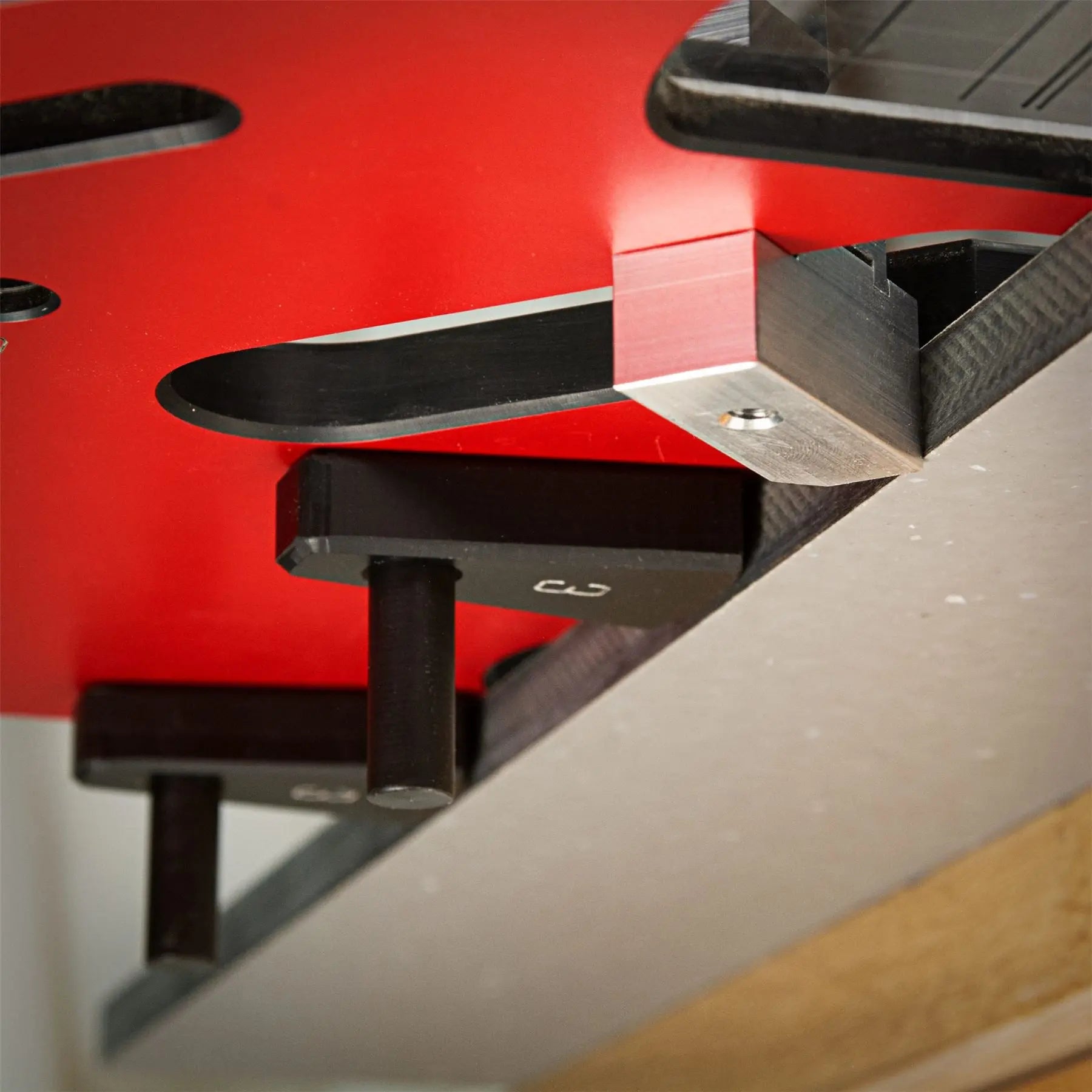

COMPATABILITY Works with Trend KWJ 750P Pro, KWJ 900P Pro, KWJ 700, KWJ 700S, KWJ 900 worktop jigs and jigs up to 12mm thick

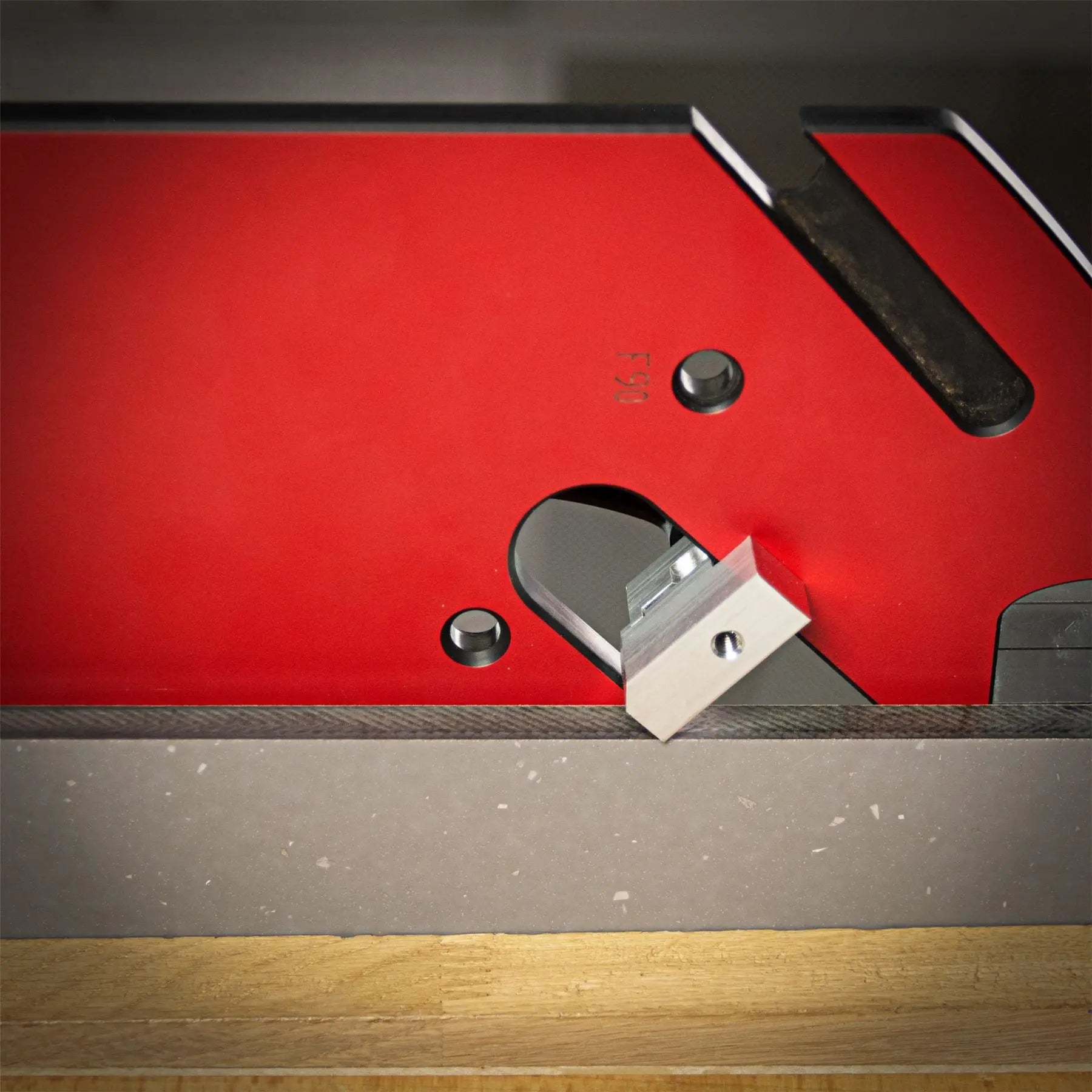

EASY SETUP Fast alignment to the worktop edge ensures correct backset position

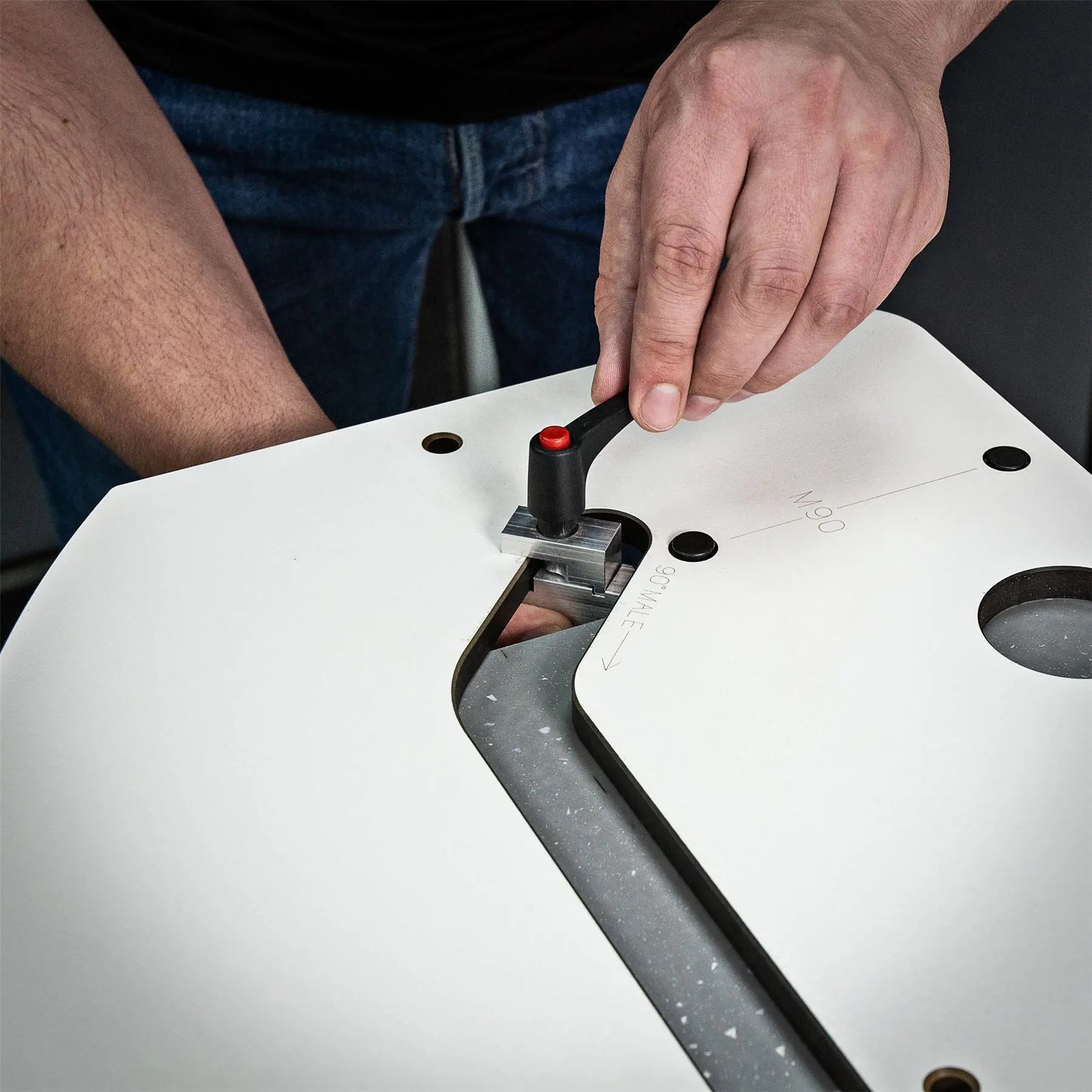

SIMPLE FOUR STEP PROCEDURE Measure, Mark, Clamp, Cut

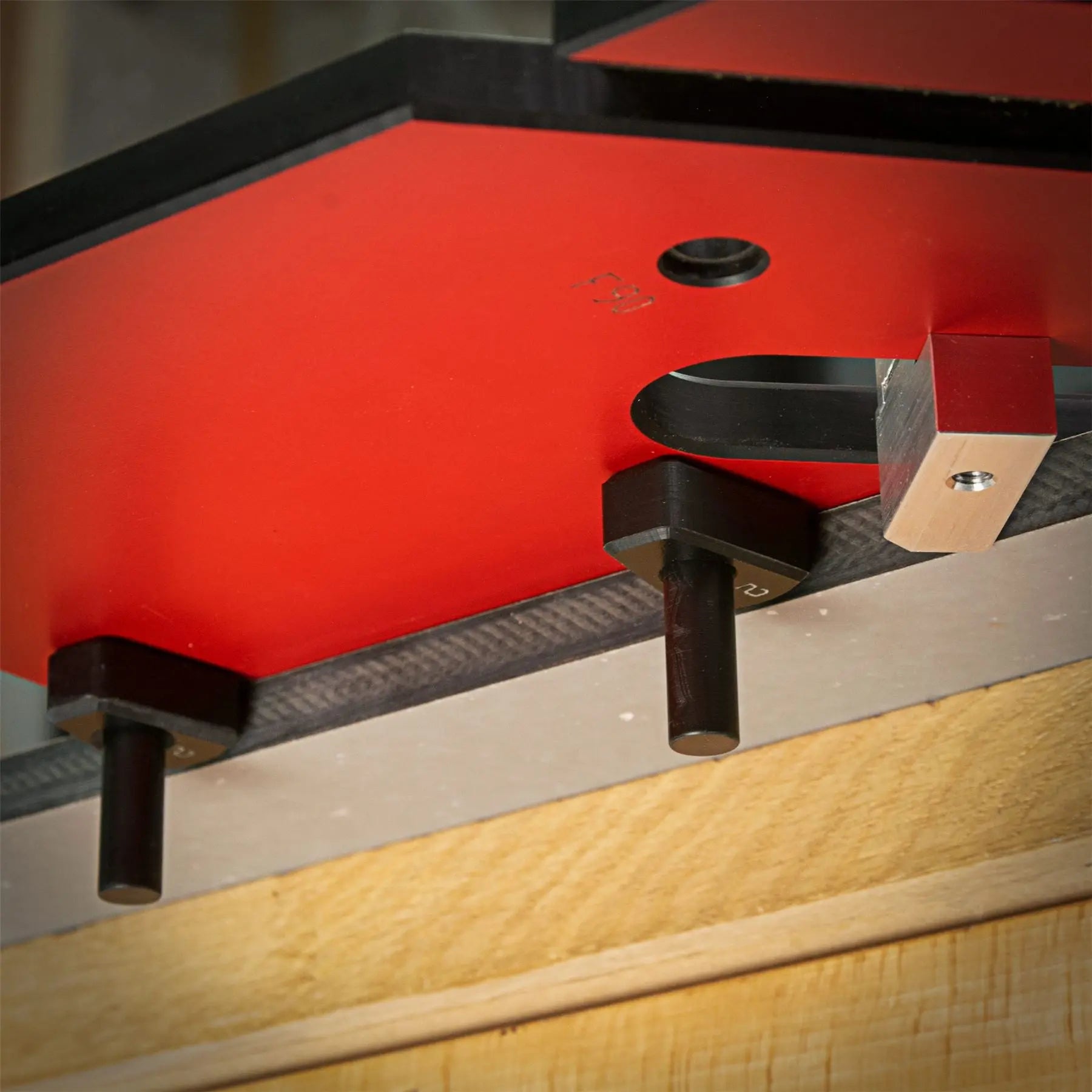

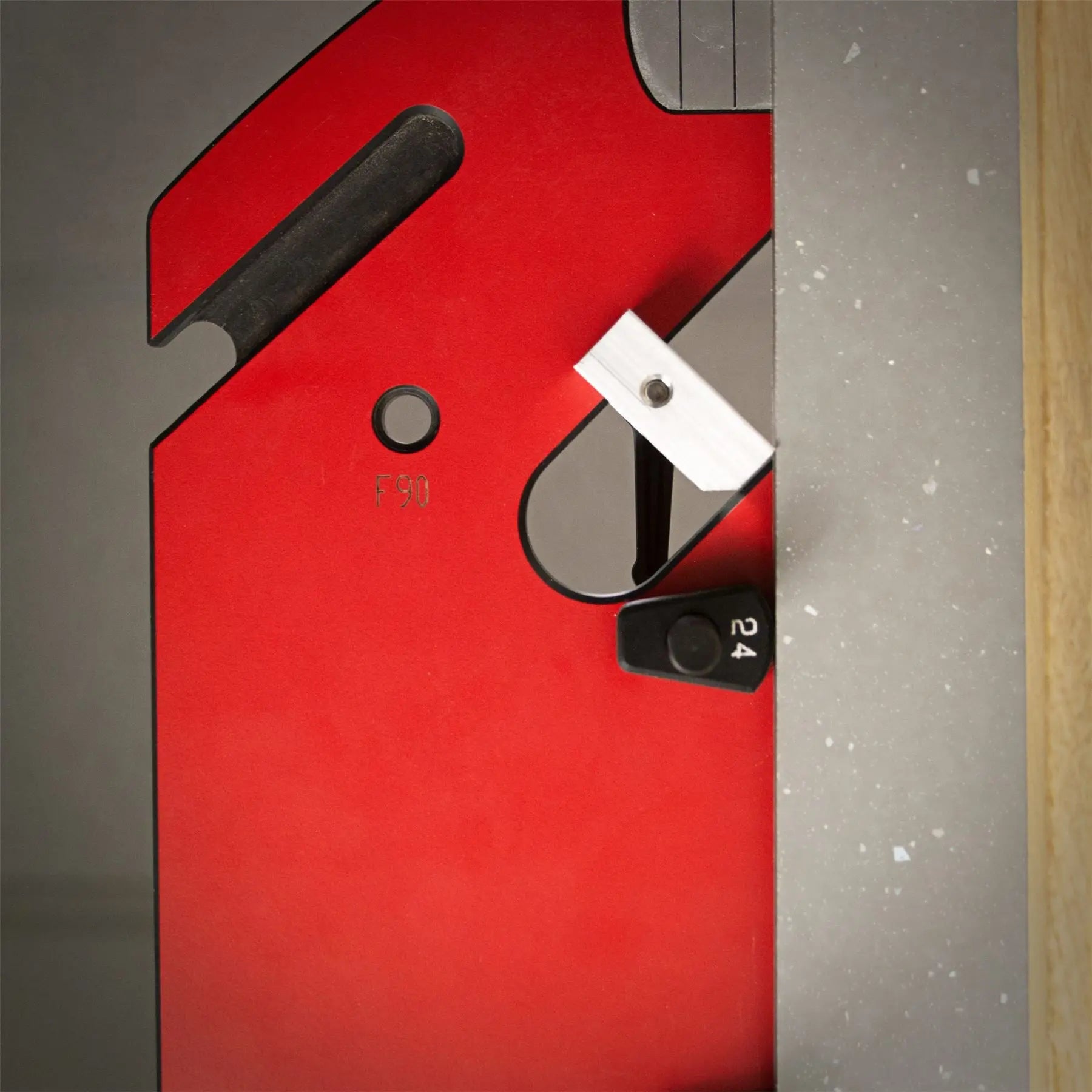

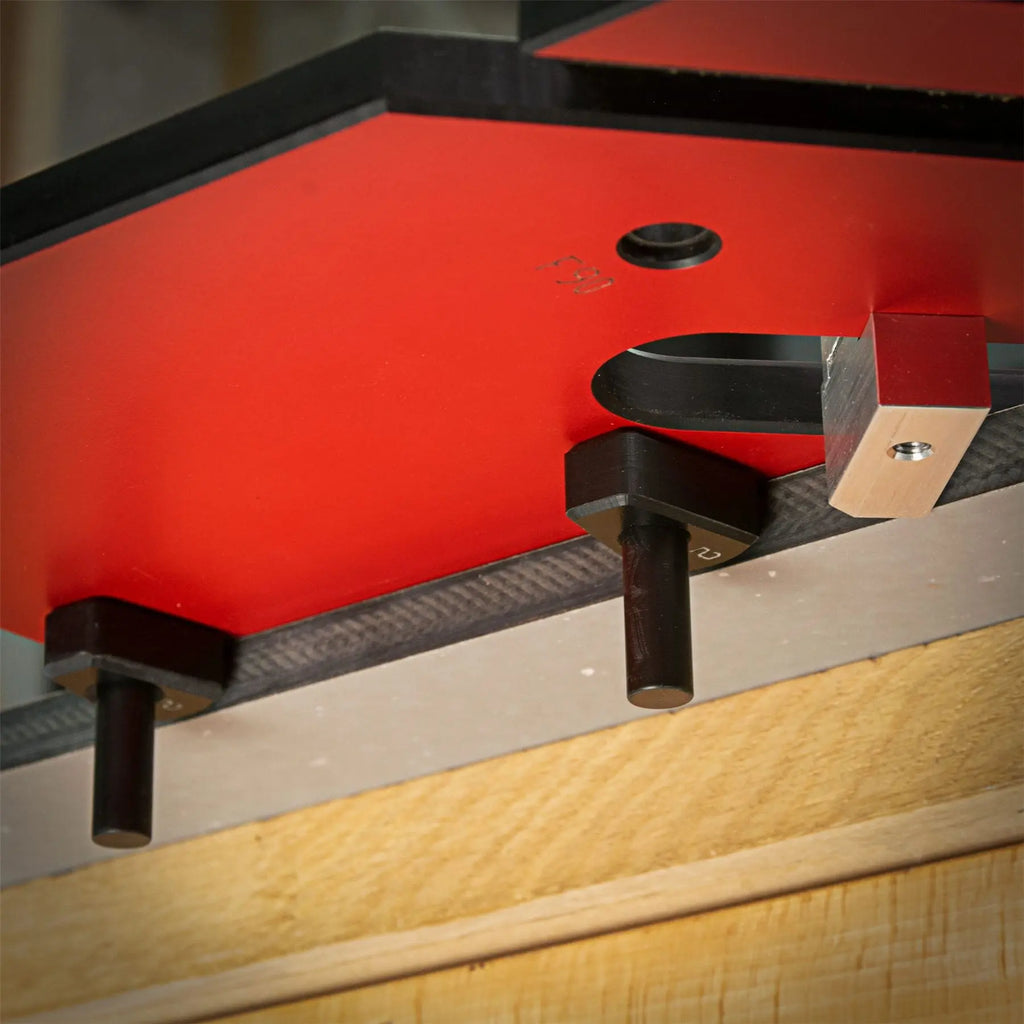

PRECISION FIT Front edge pivot point alignment ensures the backset is correctly set to match the female cut

MULTI-PROFILE Works with any worktop edge profile from square edge to full bullnose

QUALITY CONSTRUCTION Made from solid aluminium for maximum lifespan and accuracy

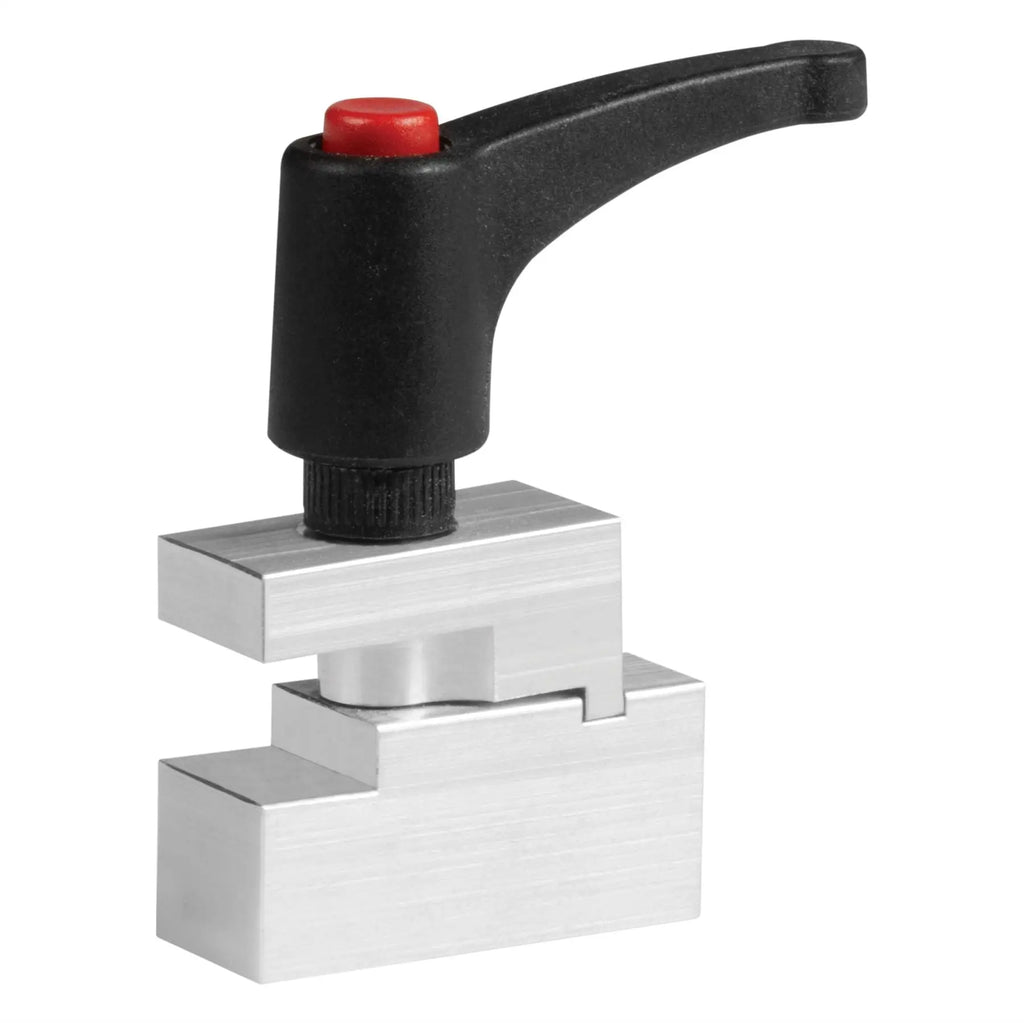

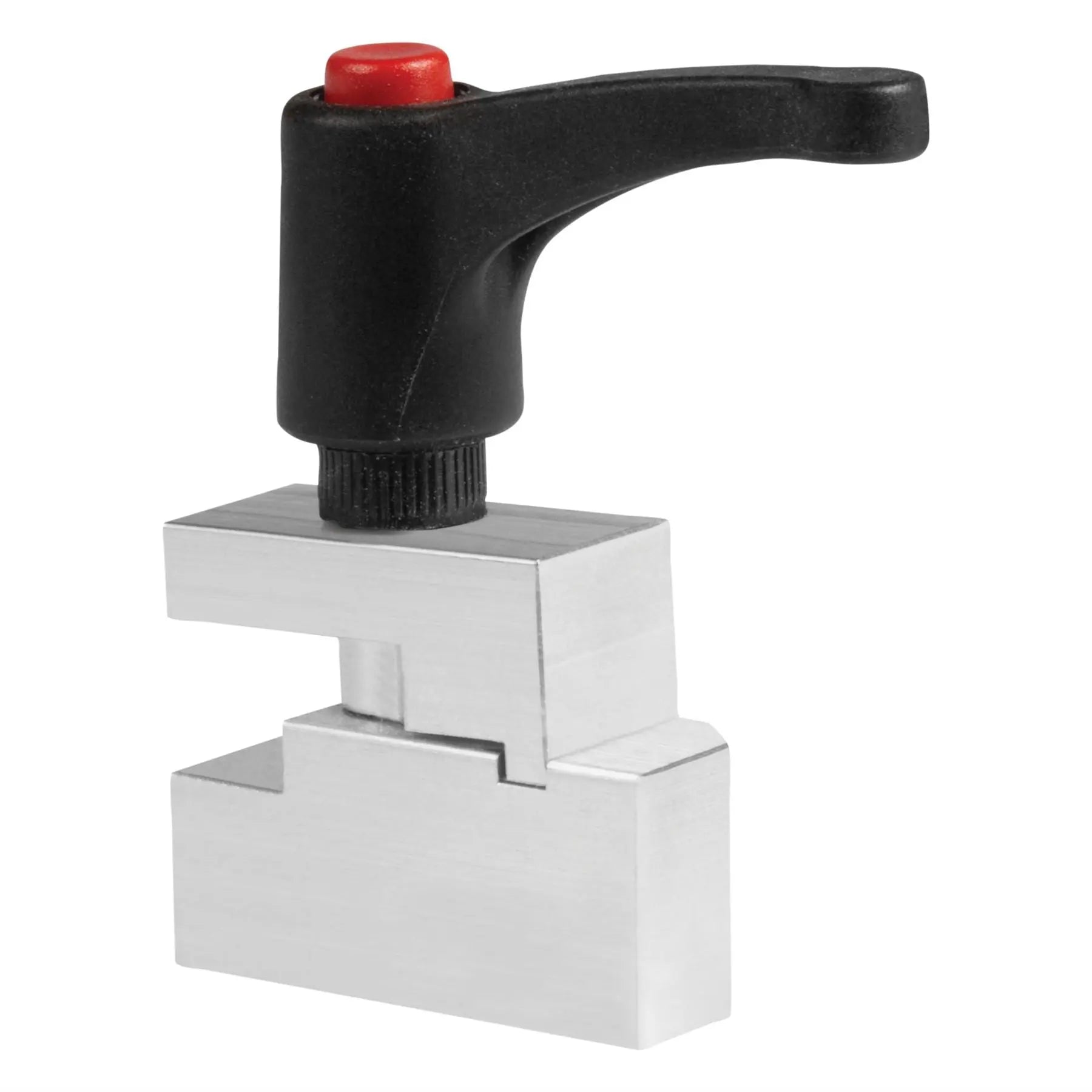

INTERLOCKING COMPONENTS Two-part construction with keyed interlock to swivel easily into place and clamp firmly onto the jig without slipping

ADJUSTABLE HANDLE High quality spring-loaded handle for fast adjustment and secure lock

Specification:

• Out of square capacity=up to 25 degrees
• Maximum jig thickness=12mm
• Height=73 mm
• Width=73 mm
• Depth=17 mm

Downloadable Files:

• Instructions 1: View Here
