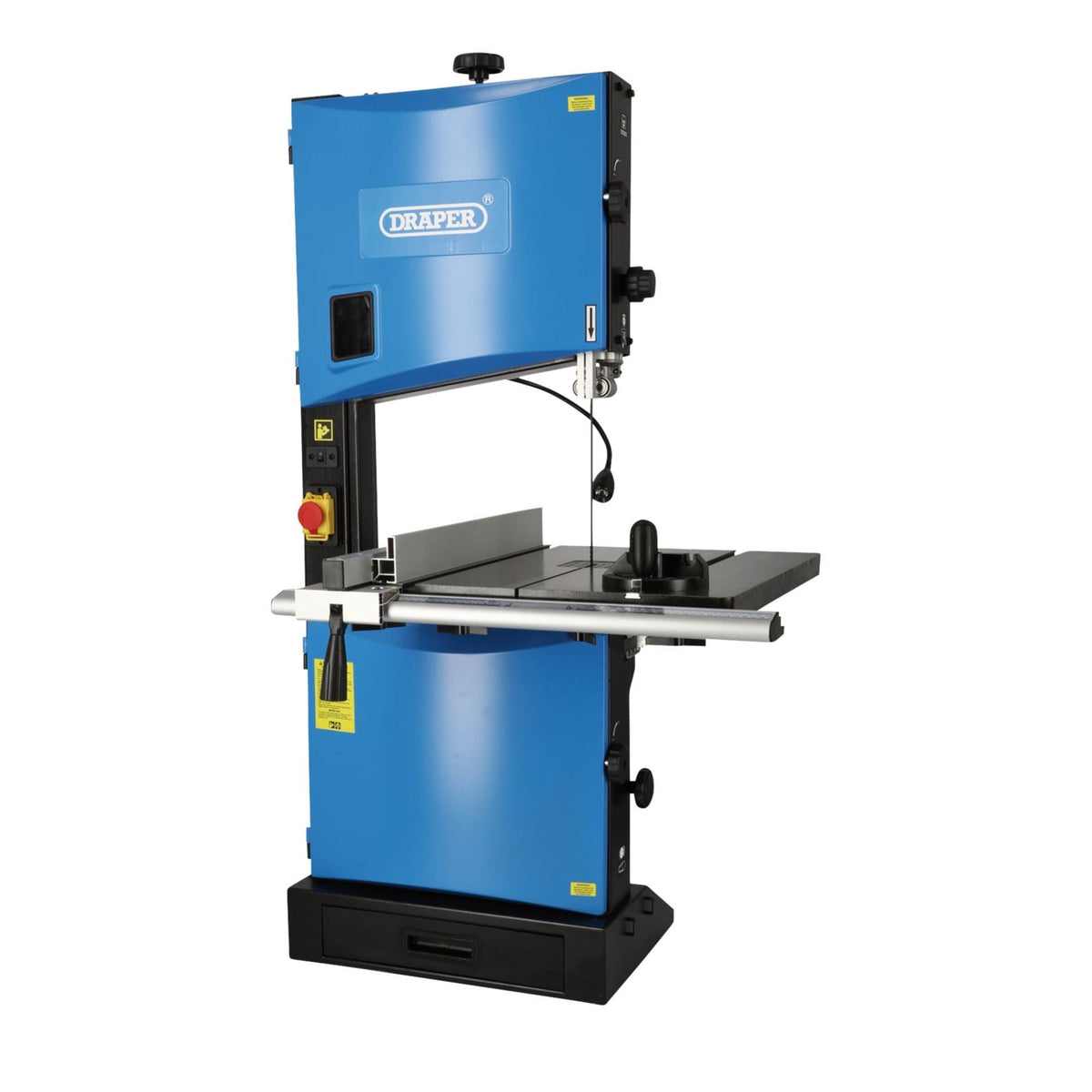

Draper 230V Bandsaw 340mm 1100W 84715

Draper 230V Bandsaw 340mm 1100W 84715

This two-speed bandsaw is designed to cut wood, wood derived materials and plastics. Built to a high specification and ideal for trade professionals. This is reflected in the quality of the structure and strength of the worktable support and tilt mechanism, as well as the structure and strength of the blade wheel adjusting mechanism. The adjustable blade tensioning and tracking allows for precise cutting. There is a high spec mitre guide for crosscut work. The strong table tilts with a 0-45 degree range allowing angled cutting, ripping and mitre and bevel cutting. No-volt release switch prevents uncontrolled blade to re-start after power interruption. There is a tool drawer built into the base unit providing convenient storage while working. Supplied with 4tpi blade, parallel rip fence and other accessories. This bandsaw can be floor standing or mounted on a stand available separately (Stock No. 99270).
Features:

• Two-speed operation control
• Adjustable blade tensioning and tracking for precise cutting
• Mitre guide for crosscut work. Graduated to 30 degrees for both left and right hand angles
• Table tilting with 0-45 degree range
• Fitted with LED worklight and convenient tool drawer in base unit
• For angled cutting, ripping, mitre and bevel cutting
• Fitted with a cable and approved plug
• Supplied with blade, mitre gauge, rip fence and dust extraction outlet
• Can be bench mounted or fitted to a stand (available separately)
• Excellent performance and cutting capacity

Product Contents:

• 1 x 4tpi blade
• 1 x Parallel rip fence
• 1 x Open ended spanner
• 1 x Push stick
• 4 x Hex keys
• 4 x Pan head screw, M7 x 12mm
• 4 x Washers, 8.5mm
• 4 x Plastic wing bolts

Brand: Draper
Stock No: 84715
Part No: BS340/1100D
Warranty: 24 months
Comments: No-volt switch

Specification:

• Voltage: 230V
• Weight: 74kg
• No load speed: 1400rpm
• Maximum throat capacity: 340mm
• Cutting depth: 225mm
• Maximum capacity: 205mm
• Cutting speed: 2 speed, 6.16m/sec (370m/min) and 13.33m/sec (800m/min)
• Table size: 545 x 515mm (Tilt to 45 degrees)
• Bandsaw dimensions: 850 x 650 x 1297mm
• Frequency: 50Hz
• Input: 1100W

Downloads:

• Product Data Sheet: View Here
• Instruction Manual: View Here
• Parts Listing: View Here
• Declaration of Conformity UK CA: View Here
• Declaration of Conformity CE: View Here
