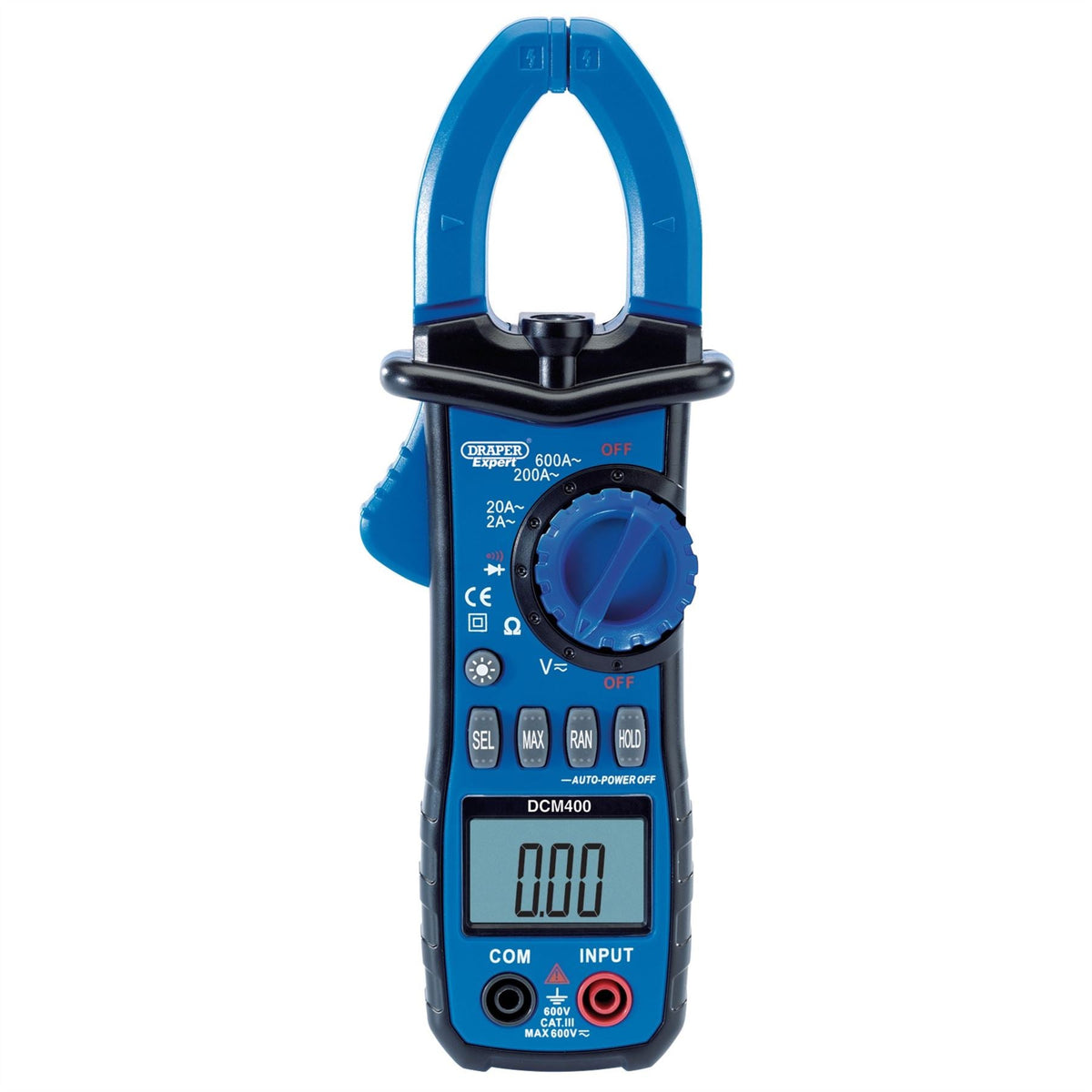

Draper Expert Manual-Ranging Digital Clamp Meter 41864

Draper Expert Manual-Ranging Digital Clamp Meter 41864

Auto and manual ranging clamp meter capable of voltage, current, resistance, diode and continuity testing. Maximum jaw - opening diameter of 36mm, backlit LCD screen, auto power off and a useful inspection light. Supplied with test leads and a case.
Product Contents:

• 1 x Draper Expert Manual-Ranging Digital Clamp Meter

Brand: Draper Expert
Stock No: 41864
Part No: DCM400
Warranty: 12 months

Specification:

• Diode on/off Test: Yes
• DC Voltage: 200mV/2V/20V/200V/600V
• AC Current: 2A/20A/200A/600A
• Dimensions: 228mm x 156mm x 62mm
• AC Voltage: 200mV/2V/20V/200V/600V
• Automatic Power Off: Yes
• Battery: 3 x AAA (not supplied)
• AC Amps: 2A/20A/200A/600A
• Duty Ratio: Yes
• TACH: N/A
• Frequency: N/A
• DC Current: N/A
• Dwell: N/A
• Weight: 480g (approx.)
• Capacitance: N/A
• Symbol Unit Data Hold: Yes
• Resistance (Ohms): 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ
• Temperature Range: N/A

Downloads:

• Product Data Sheet: View Here
• Instruction Manual: View Here
• Declaration of Conformity UK CA: View Here
• Declaration of Conformity CE: View Here
