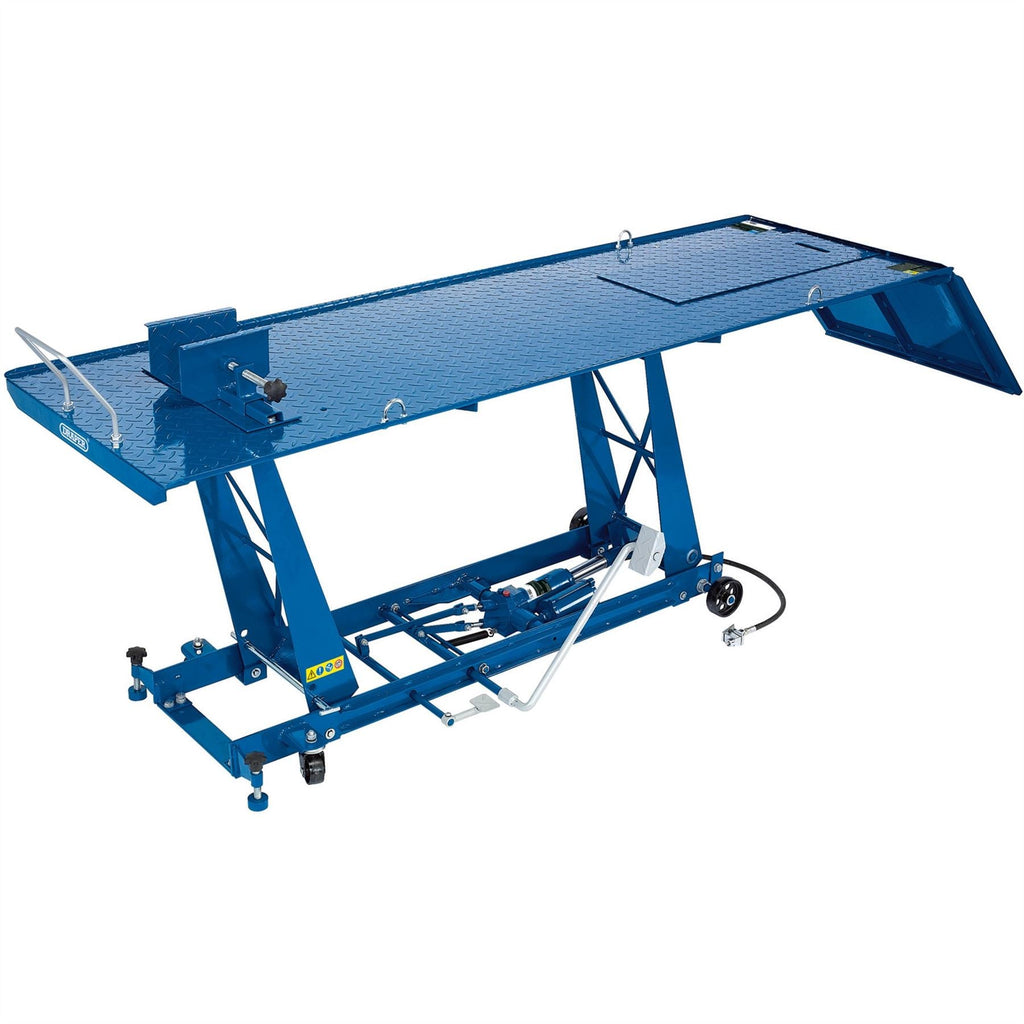

Draper Pneumatic/Hydraulic Motorcycle Lift 450kg 37188

Draper Pneumatic/Hydraulic Motorcycle Lift 450kg 37188

All steel construction operates on either heavy duty foot operated hydraulic pump or pneumatic pump system with controller and ram assembly. Safety table lock device to prevent accidental lowering. Adjustable front wheel clamp and wheel stop bar. Removable rear panel to facilitate rear wheel changes. Base assembly fitted with transport wheels and lock downs to prevent lift from moving whilst in use. Table surface is stippled for safety and grip whilst loading motorcycles. Supplied in wooden crate.
Features:

• Manufactured to EN1494-2000 Specifications
• All steel construction operates on either heavy duty foot operated hydraulic pump or pneumatic pump system with controller and ram assembly
• Safety table lock device to prevent accidental lowering
• Adjustable front wheel clamp and wheel stop bar
• Removable rear panel to facilitate rear wheel changes
• Base assembly fitted with transport wheels and lock downs to prevent lift from moving whilst in use
• Table surface is stippled for safety and grip whilst loading motorcycles
• Working table size: 2200 x 680mm (L x W)
• Two working heights: 540/730mm
• Maximum height: 815mm

Product Contents:

• 1 x Pneumatic/Hydraulic Motorcycle Lift, 450kg

Brand: Draper
Stock No: 37188
Part No: MCL3
Warranty: 12 months

Specification:

• Operating Air Pressure: 90psi (6.2bar)
• Rear Wheel Removal Panel (L x W): 690 x 245mm
• Working Table (L x W): 2200 x 680mm
• Max Height: 815mm
• Loading Ramp (L x W): 600 x 550mm
• Lifting Range: 180-815mm
• Closed Height: 180mm
• Capacity: 450kg (1000lbs)
• Air Inlet: 1/4"BSP
• Weight: 141kg
• Working Height 1: 540mm
• Working Height 2: 730mm

Downloads:

• Product Data Sheet: View Here
• Instruction Manual: View Here
• Parts Listing: View Here
• Declaration of Conformity UK CA: View Here
• Declaration of Conformity CE: View Here
