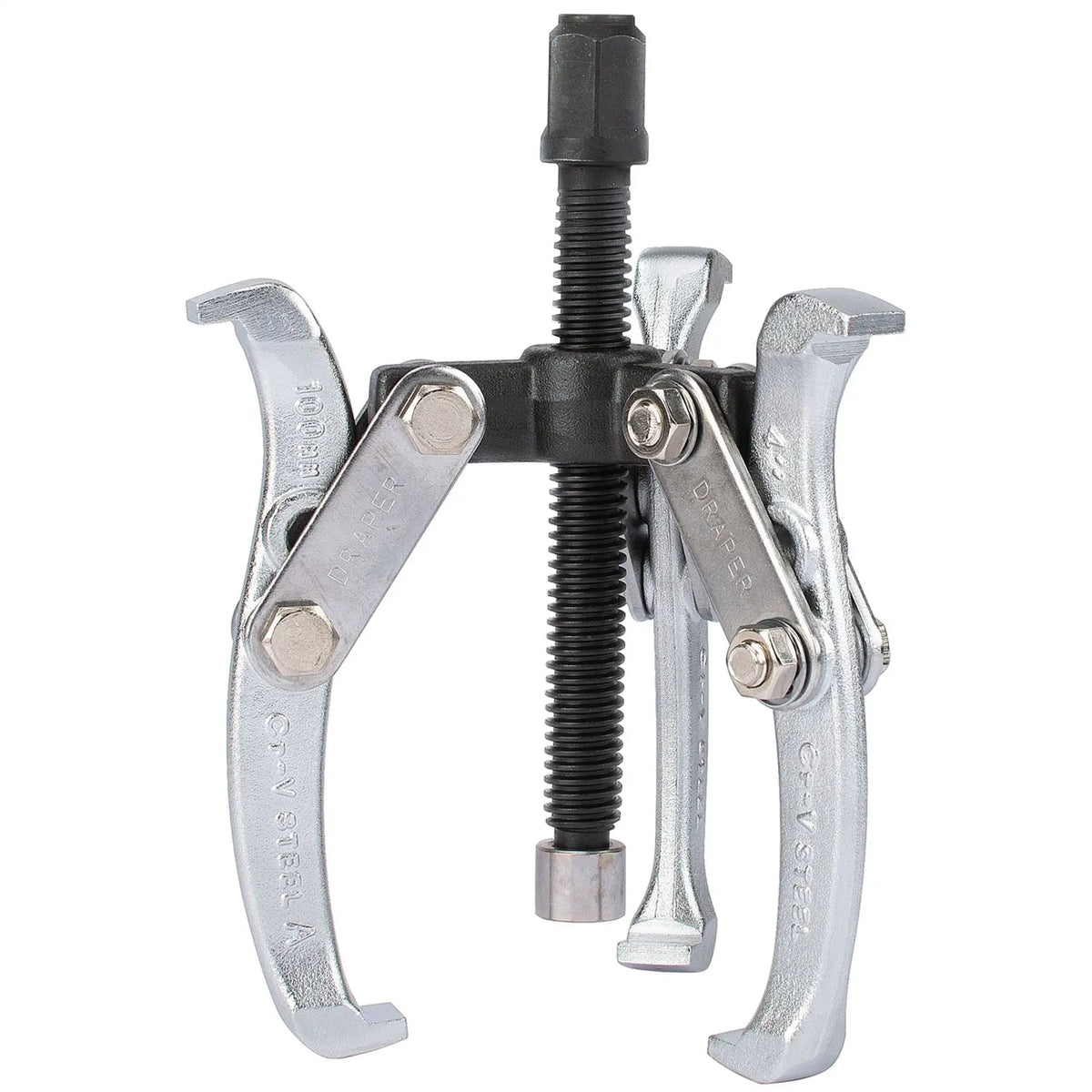

Draper Triple Leg Reversible Puller 102mm Reach x 110mm Spread 13909

Draper Triple Leg Reversible Puller 102mm Reach x 110mm Spread 13909

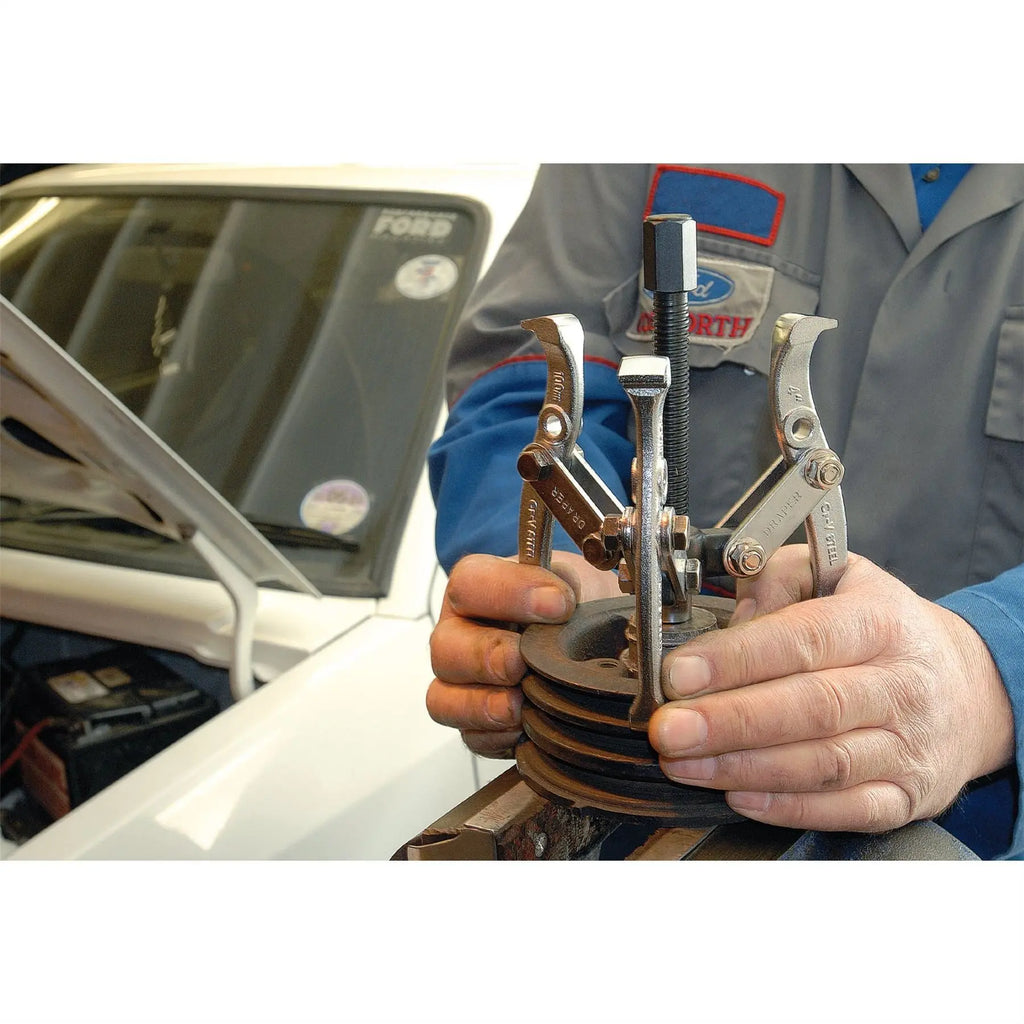

Puller with three reversible legs for external and internal pulling of gears, bearings, etc. Legs are forged carbon steel and have long and short reach facility. Yoke and thrust bolt are manufactured from carbon steel. Screw has a rolled thread with chemically blacked finish.
Features:

• Three reversible legs for external and internal pulling of gears, bearings, etc
• Legs are forged carbon steel and have long and short reach facility

Product Contents:

• 1 x Triple Leg Reversible Puller, 102mm Reach x 110mm Spread

Brand: Draper
Stock No: 13909
Part No: N133
Warranty: Lifetime

Specification:

• Max reach: 102mm
• Max spread: 110mm
• Central screw size: 14.0 x 156mm
• Screw hardness: 35–37 HRC
• Hexagonal head: 17mm
• Weight: 0.95kg

Downloads:

• Product Data Sheet: View Here
• Instruction Manual: View Here
