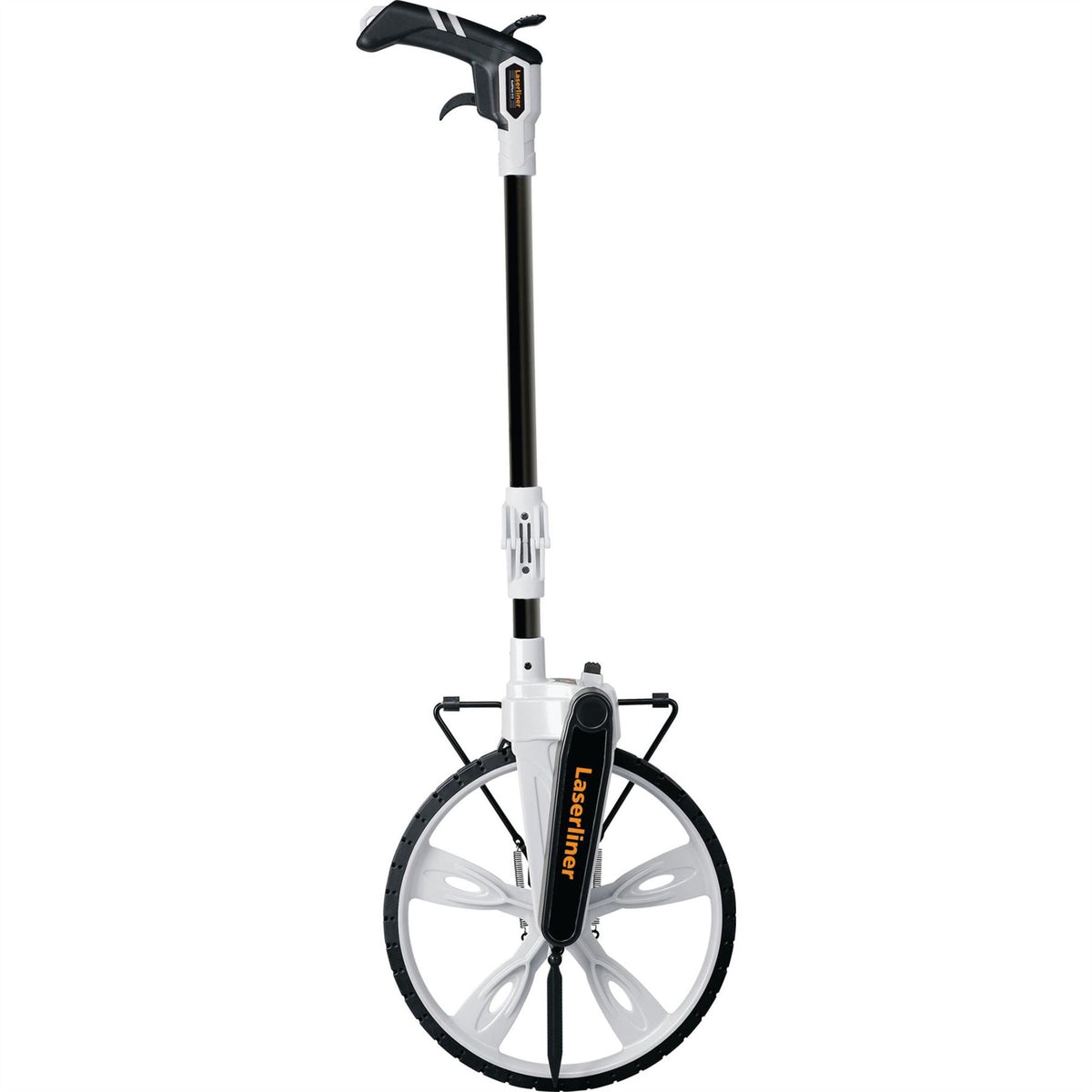

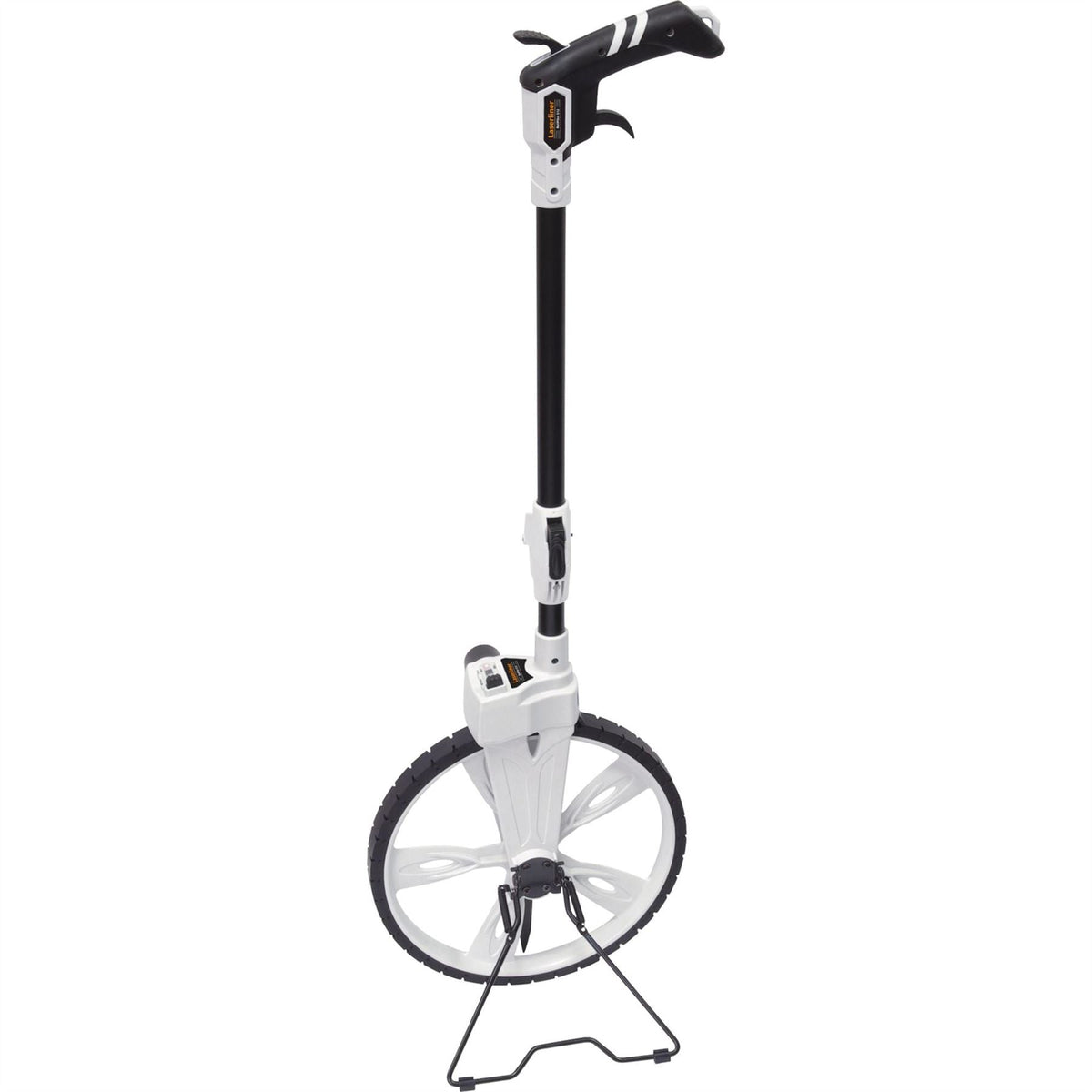

Laserliner 075.005E RollPilot S12 Measuring Wheel 32154

Laserliner 075.005E RollPilot S12 Measuring Wheel 32154

The roller distance measuring device is designed for use in straight lines and curves. The measuring wheel is accurate to the nearest centimetre up to 9,999.9 metres. Measured values are shown on the easy-to-read display with additional fine scale. A movable indicator provides information on the exact start and final position. Rolling the wheel forwards adds to the measured values while rolling it backwards subtracts. Convenient use due to accessible brake and zero setting directly on handle. Easy to transport due to folding design.

Features:

• Measuring wheel for use in straight lines and curves
• Accurate measurements up to 9.999,9m
• Measured value shown on easy-to-read display with additional fine scale
• Precise start and end position with moving pointer
• Easy-to-access brake and zero setting directly on handle
• Folding design for easy transport
• Non-wearing cardanic scale drive
• Mechanical metering wheel with 1-metre circumference

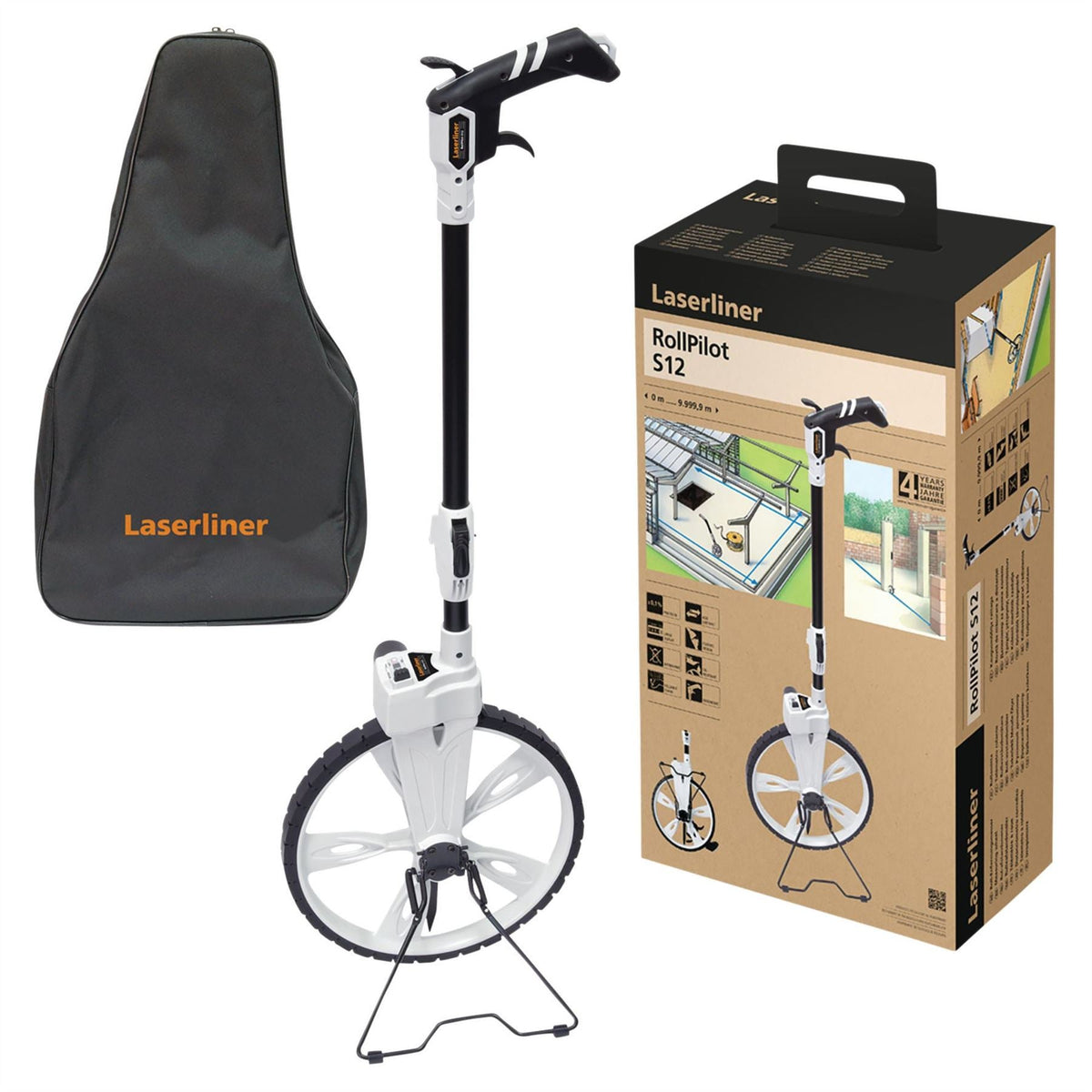

Product Contents:

• 1 x Laserliner 075.005E RollPilot S12 Measuring Wheel
• 1 x Softbag

Brand: Laserliner
Stock No: 32154
Part No: 075.005E
Warranty: 4 years

Specification:

• Units: m
• Measuring Wheel Circumference: 1000 mm
• Measuring Wheel Radius: 159 mm
• Range: 0 - 9.999,9 m
• Accuracy: ± 0.1%
• Point/wall measurement: Yes
• Operating Conditions: -20°C … 80°C
• Lock measuring wheel: Yes
• Measuring point display: Yes
• Set to park: Yes
• Distance: Yes
• Precision (Typical)*: ± 1 mm/m
• Set counter to zero: Yes
• Dimensions (W x H x D): 318 mm x 1000 mm x 140 mm
• Weight: 1800g
