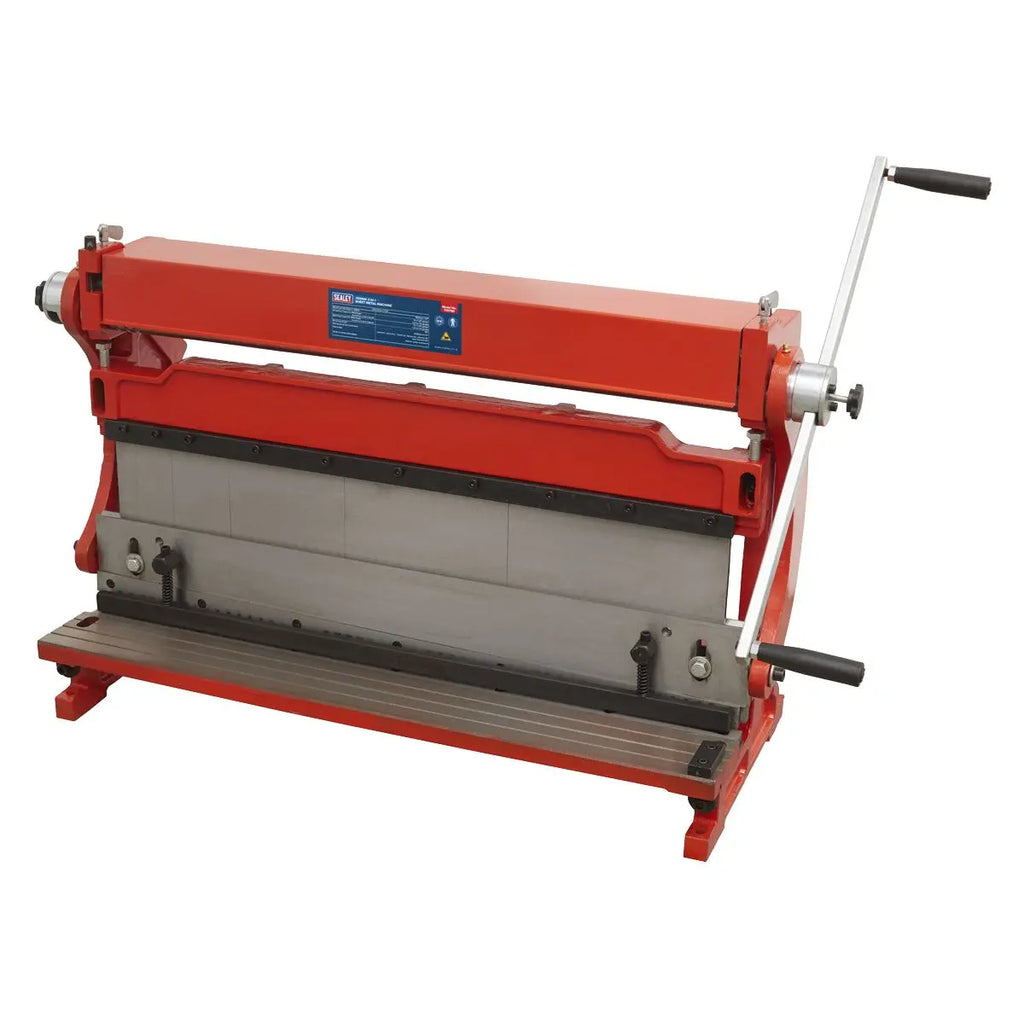

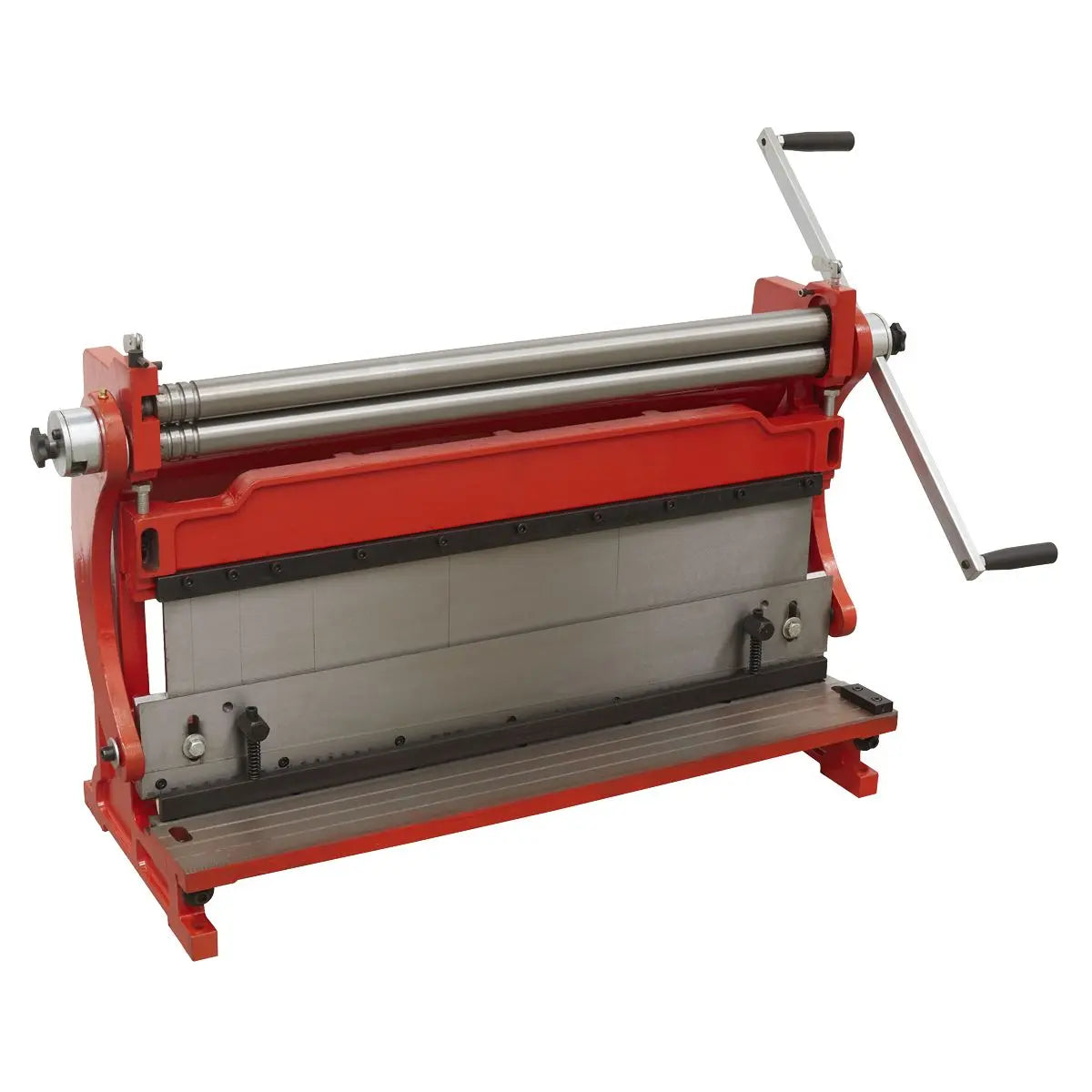

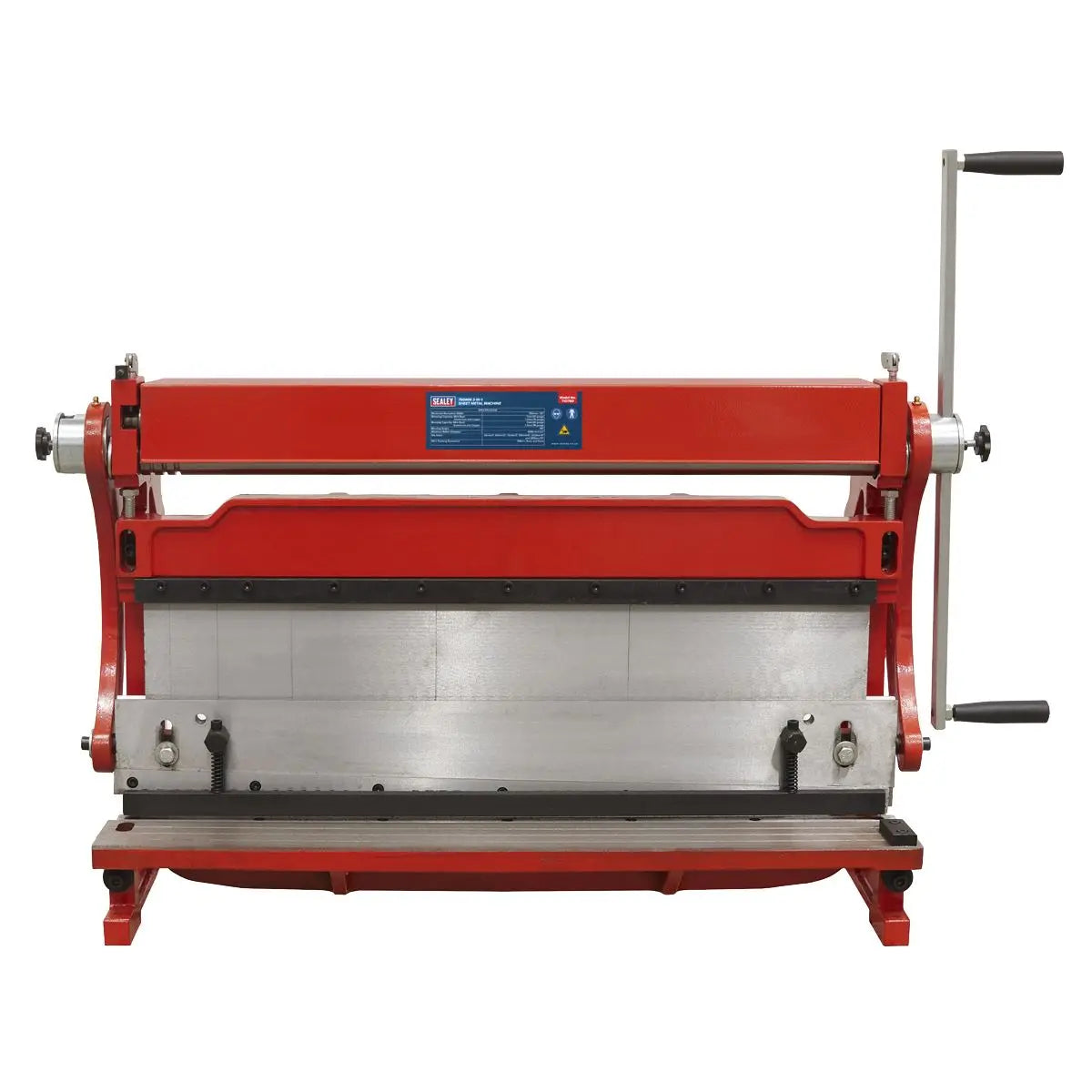

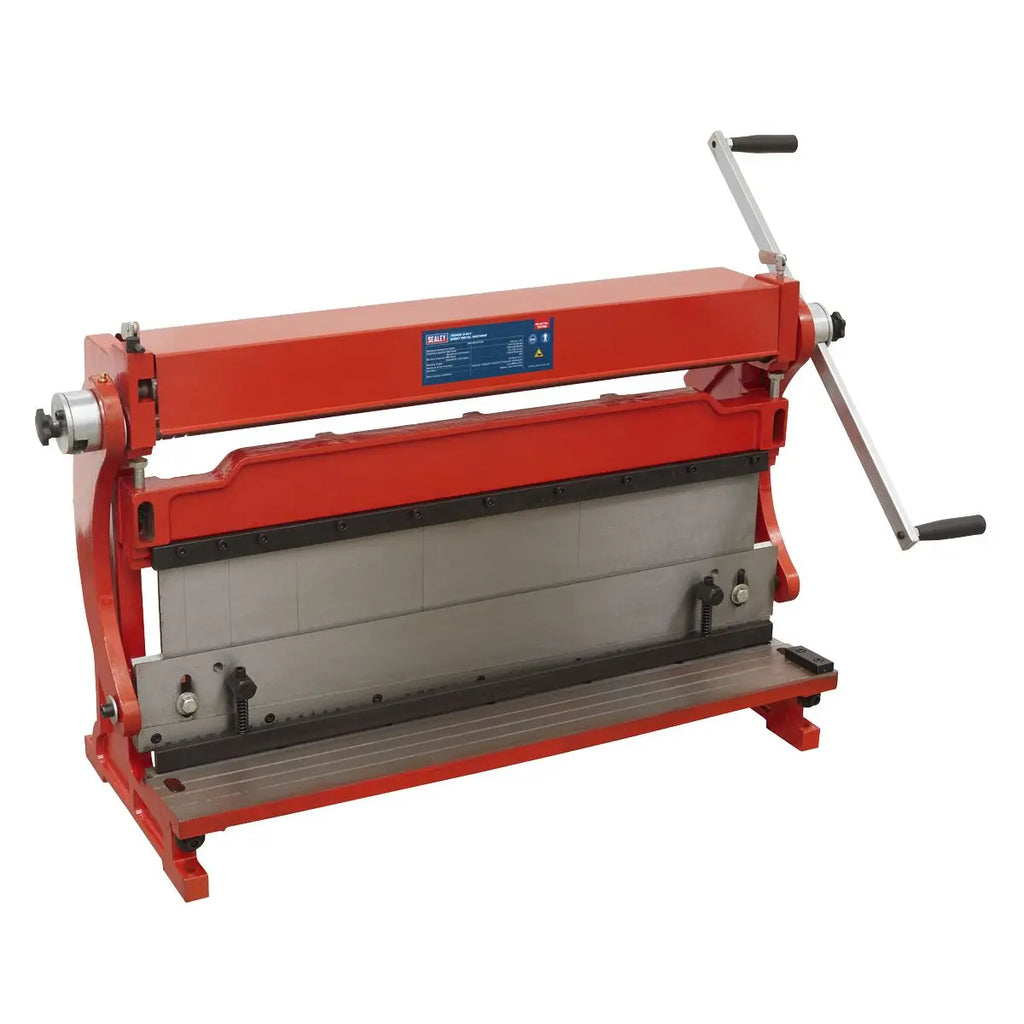

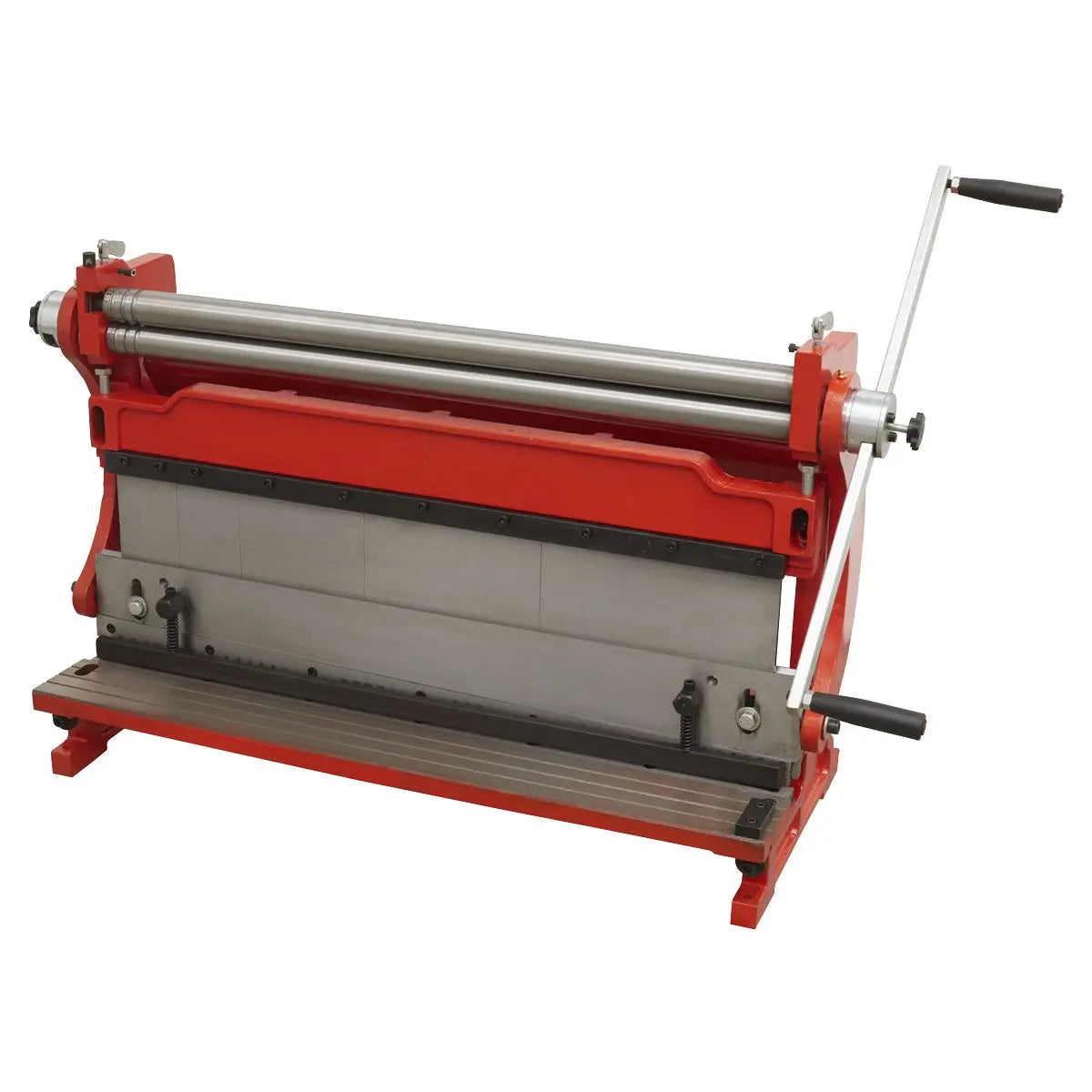

Sealey 3-in-1 Sheet Metal Machine 760mm

Sealey 3-in-1 Sheet Metal Machine 760mm

30" 3-in-1 light sheet metal working machine.

Can shear, bend and roll a variety of metals including mild steel, aluminium and copper.

The rollers have grooves with diameters of Ø4mm, 5mm and 6mm for bending rods.

Adjust the distance and angle of the rollers to create the desired curvature for curves, cylinders or cones.

Shear sheets of metal up to 760mm wide.

Make pans with a maximum lip of 1” and bend (brake) sheets up to an angle of 90°.

This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Specification:

• Model No TIO760
• Brand: Sealey
• Die Sizes: 28mm/1", 50mm/2", 75mm/3", 155mm/6", 203mm/8", 255mm/10"
• Minimum Roller Diameter: Ø38mm/1-1/2"
• Nett Weight: 127.8kg
• Tube Rolling Diameter: Ø4mm, 5mm, 6mm
• Workpiece Maximum Thickness: Mild Steel: 1mm/20 gauge, Aluminium and copper: 1.2mm/18 gauge
• Workpiece Maximum Width: 760mm/30"

Product Guarantee: 1 Year
Catalogue Page: Page 1209

Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
