Description

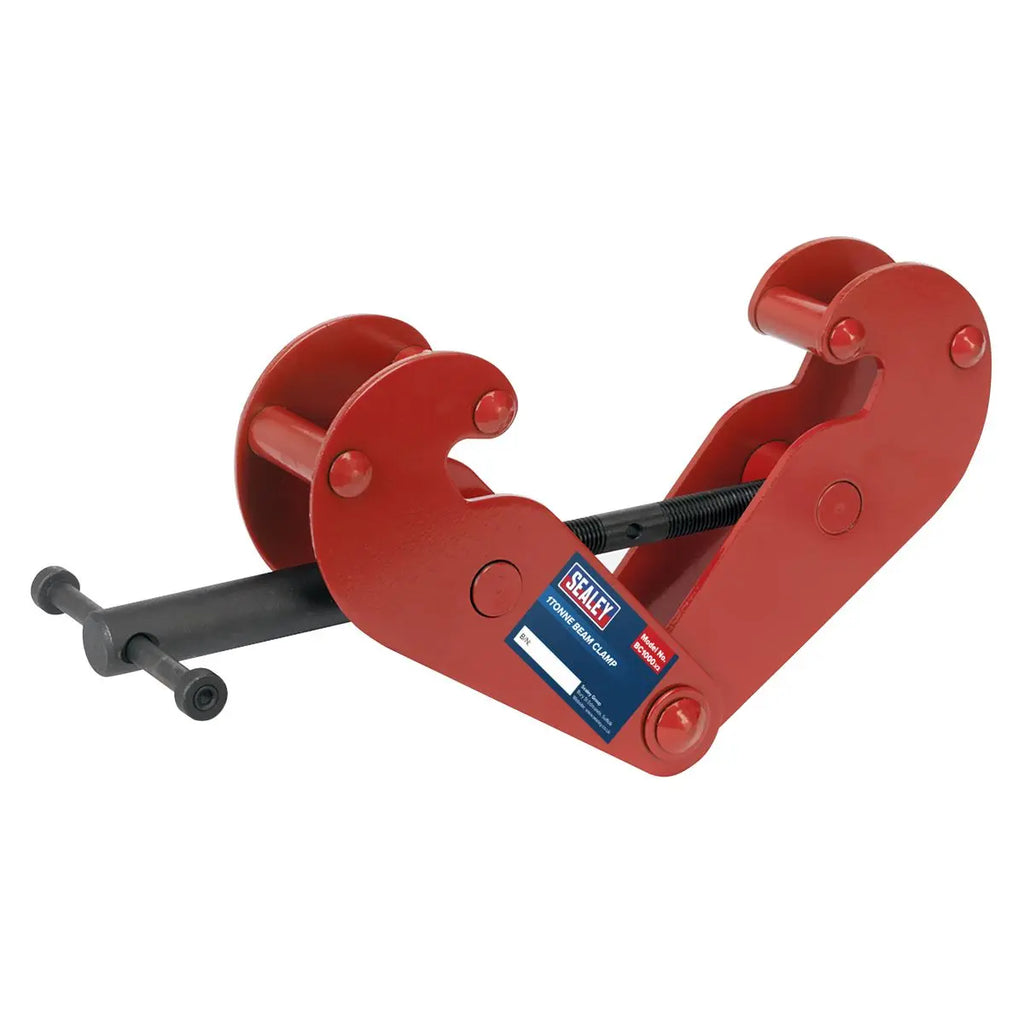

Sealey Beam Clamp 1 Tonne
Suitable for semi-permanent attachment to steel beams and acts as a lifting point for chain blocks, hoists and lifting tackle.
The clamp may also be used for lifting and transfer of steel beams and as a pulling clamp.
Low profile afforded by integral pivot/lifting point.
Specification:
- Model No BC1000
- Adjustable Beam Width: 75-220mm
- Brand: Sealey
- Capacity: 1000kg
- Dimensions: (A) - 260mm, (B) - 180-360mm, (C) - 64mm, (D) - 5mm, (E) - 215mm, (F) - 102-155mm, (G) - 25mm, (H) - Ø22mm
- Nett Weight: 4.2kg
- Note: Refer to catalogue for diagram.
Catalogue Page: Page 324
Downloadable Files:
- Instructions: View Here
