Description

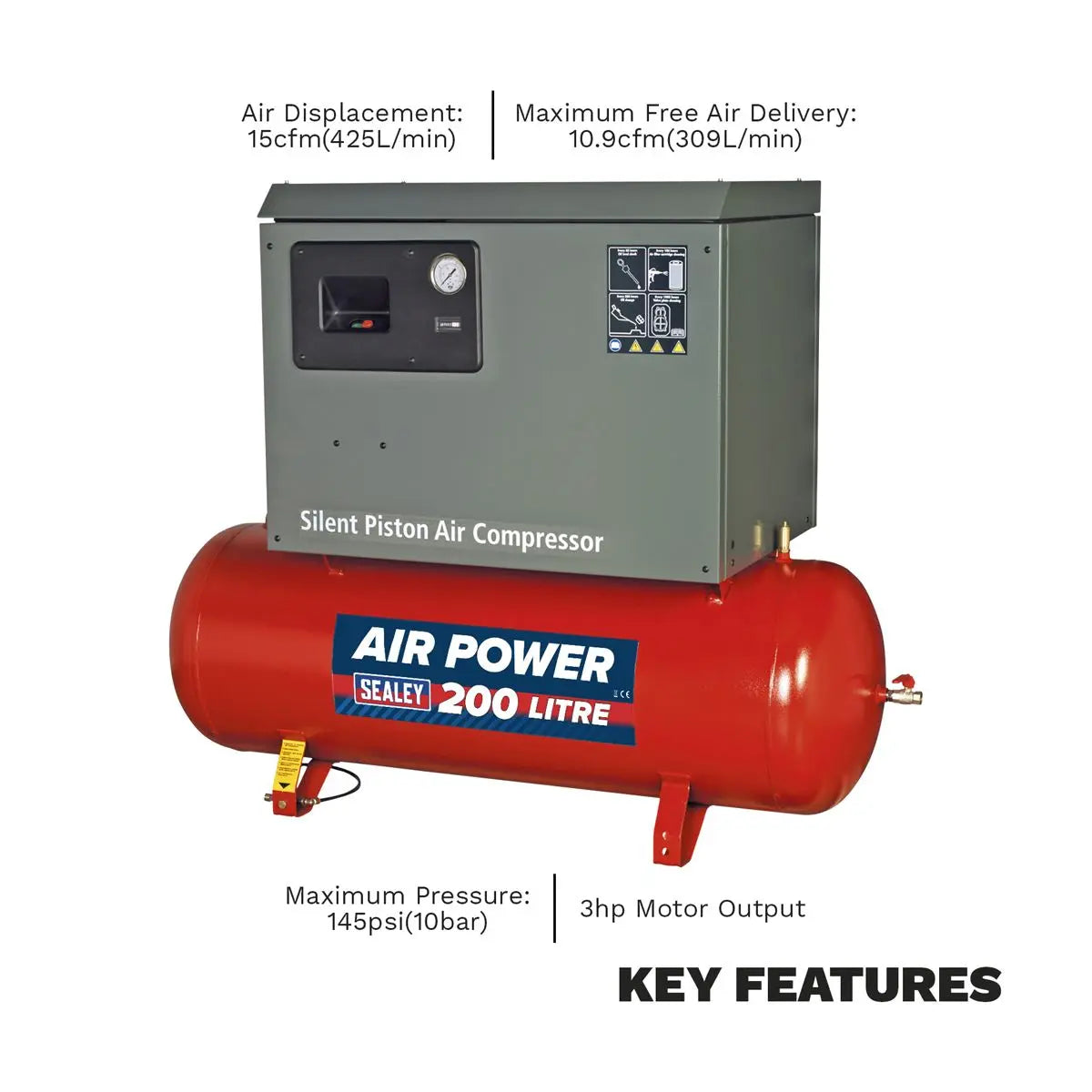

Sealey 200L Low Noise Belt Drive Air Compressor with Cast Cylinders 3hp
Air Displacement: 15cfm(425L/min).
Maximum Free Air Delivery: 10.9cfm(309L/min).
Maximum Pressure: 145psi(10bar).
Heavy-duty low noise compressor suitable for garage, bodyshop and industrial applications.

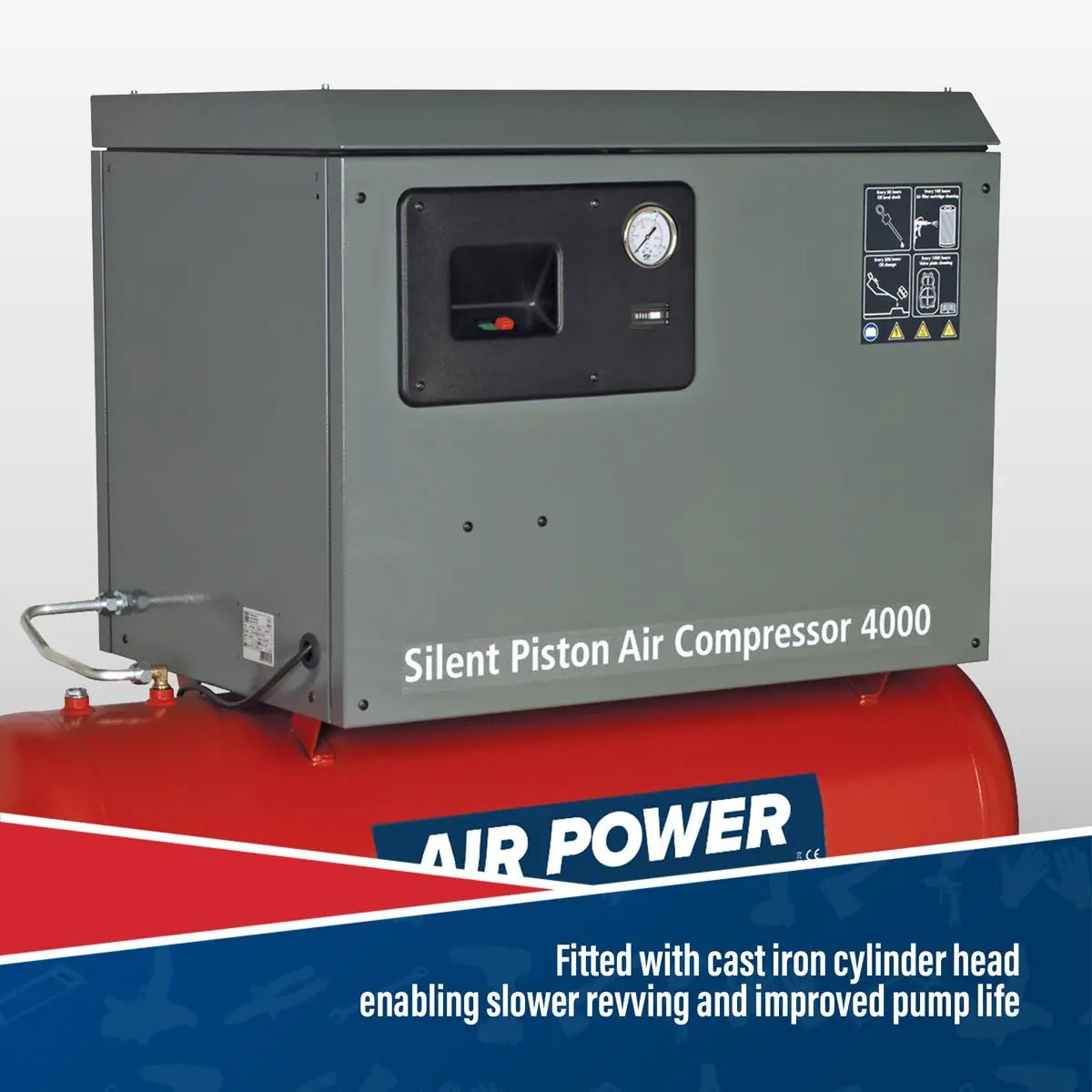

Fitted with cast iron cylinder head enabling slower revving and improved pump life.

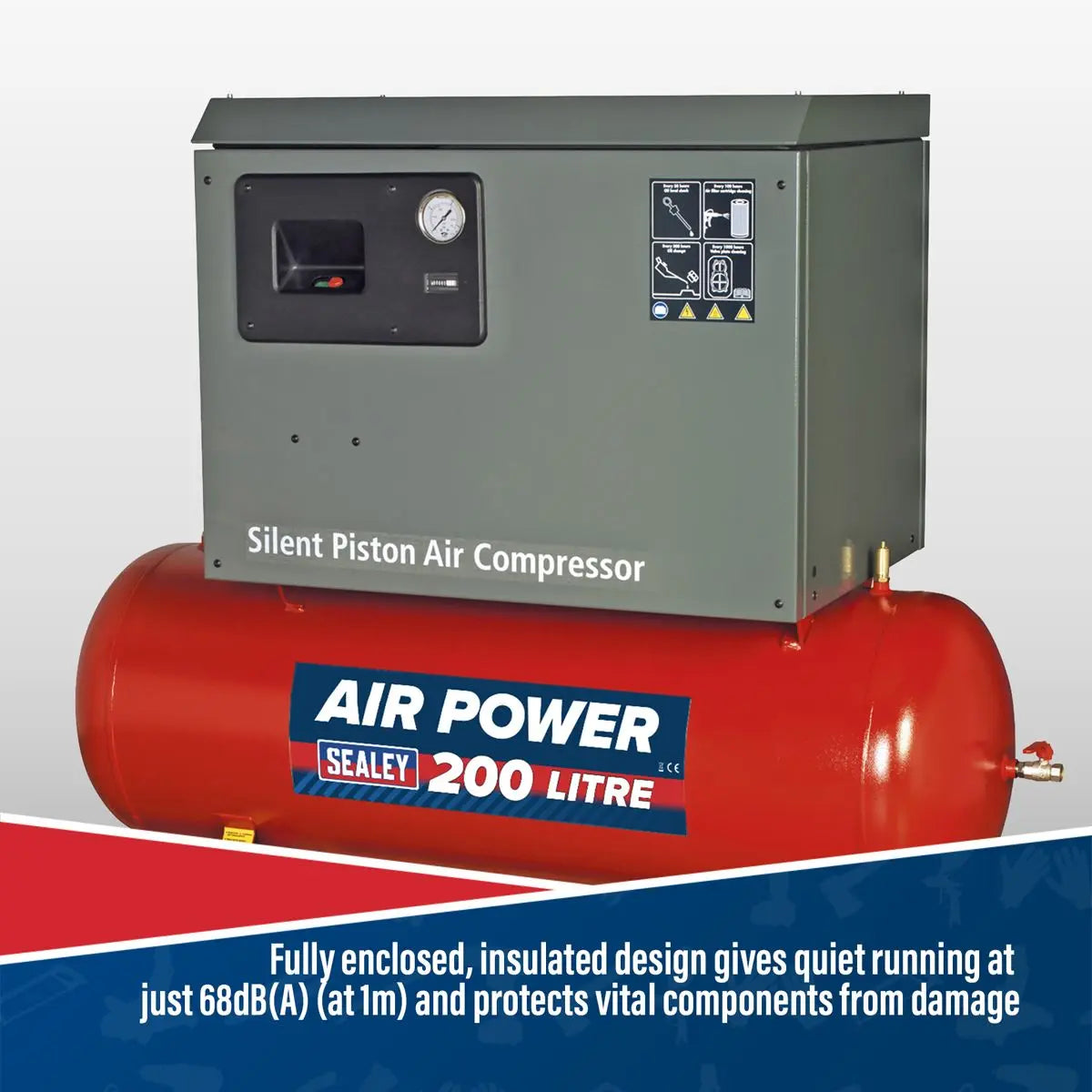

Fully enclosed, insulated design gives quiet running at just 68dB(A) (at 1m) and protects vital components from damage.
Features fully automatic pressure cut-out switch and tank pressure gauge.
Heavy-duty single phase electric motor with soft start feature.

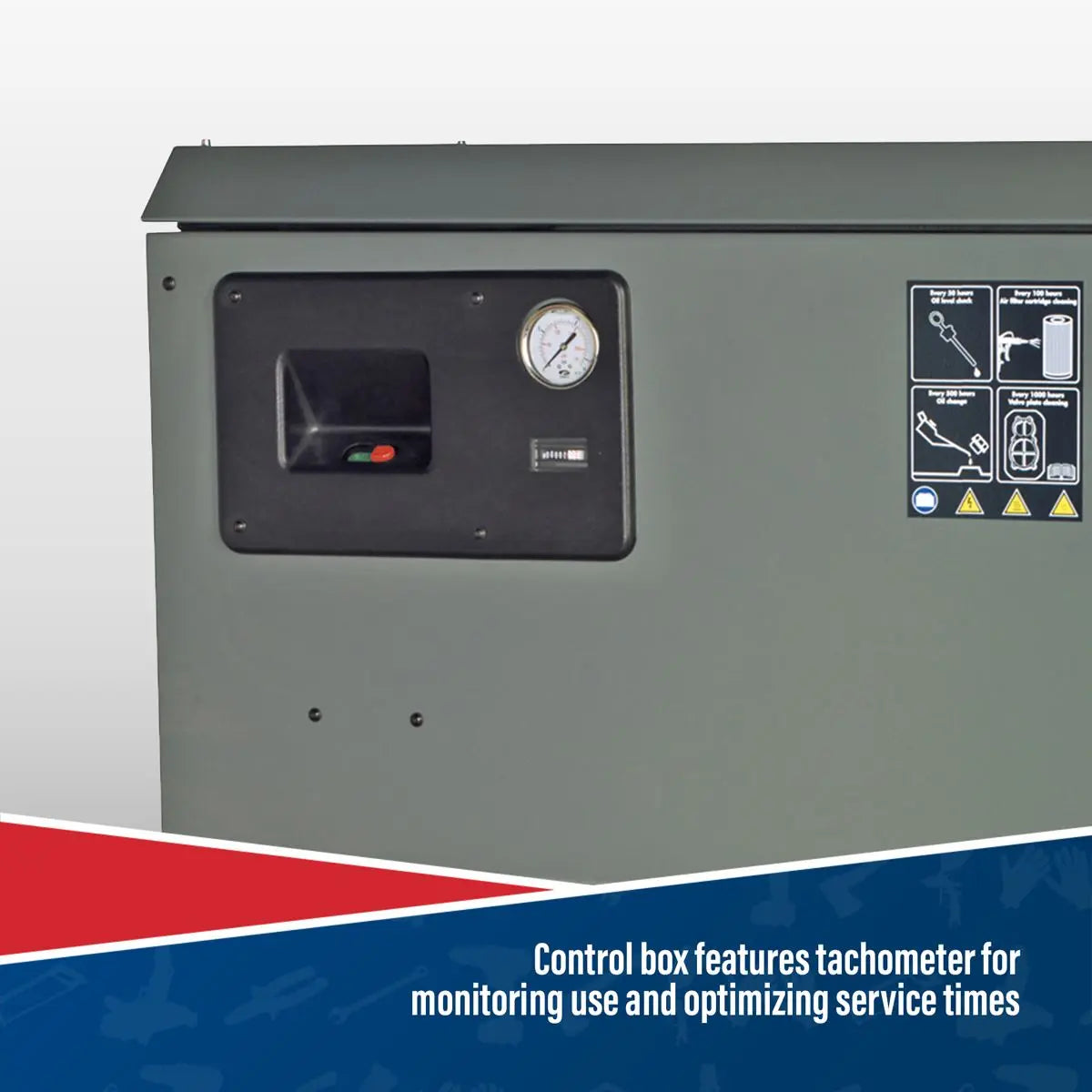

Control box features tachometer for monitoring use and optimizing service times.
Supplied with full CE certification, test certificate, operating/maintenance manual.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Specification:
- Model No SAC2203BLN
- Air Displacement cfm(L/min): 15(425)
- Brand: Sealey
- Maximum Free Air Delivery cfm(L/min): 10.9(309)
- Maximum Pressure: 145psi(10bar)
- Minimum Rated Supply: 16A
- Motor Output: 3hp
- Nett Weight: 175kg
- Noise Level: 68dB(A)
- Oil Capacity: 0.72L
- Outlet: 1/2"BSP Female Tap
- Phase: 1ph
- Receiver Capacity: 200L
- Motor Output: 3hp
- Supply: 230V
- Phase: 1ph
- Minimum Rated Supply: 16A
- Speed: 1075rpm
- Noise Level: 68dB(A)
- Air Displacement cfm(L/min): 15(425)
- Maximum Free Air Delivery cfm (L/min): 10.9(309)
- Maximum Pressure: 145psi(10bar)
- Receiver Capacity: 200L
- Outlet: 1/2" BSP Female Tap
- Size (W x D x H): 1440 x 440 x 1210mm
- Weight: 175kg
- Size (W x D x H): 1440 x 440 x 1210mm
- Speed: 1075rpm
- Supply: 230V
Catalogue Page: Page 783
