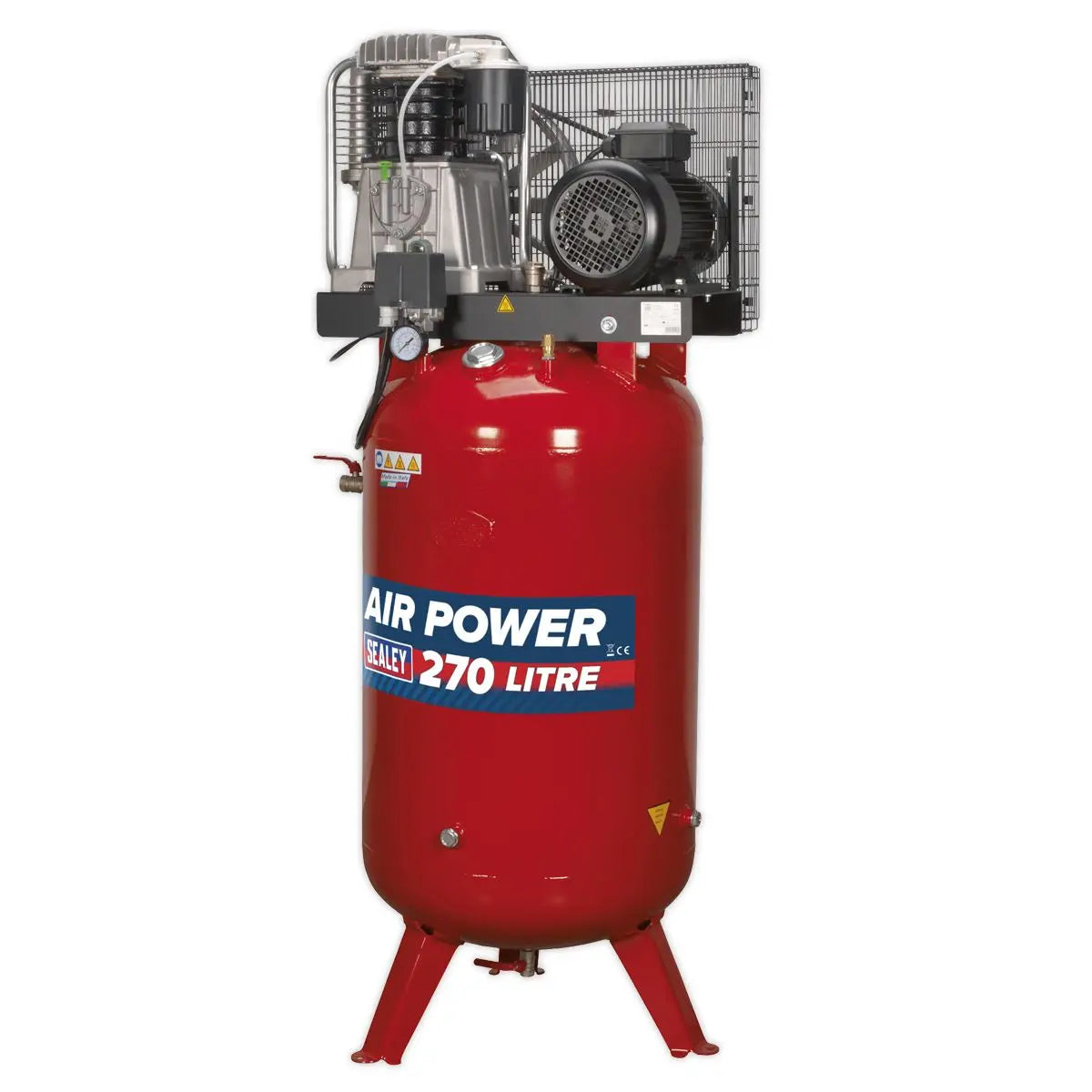

Sealey Air Compressor 270L Vertical Belt Drive 7.5hp 3ph 2-Stage with Cast Cylinders

Sealey Air Compressor 270L Vertical Belt Drive 7.5hp 3ph 2-Stage with Cast Cylinders

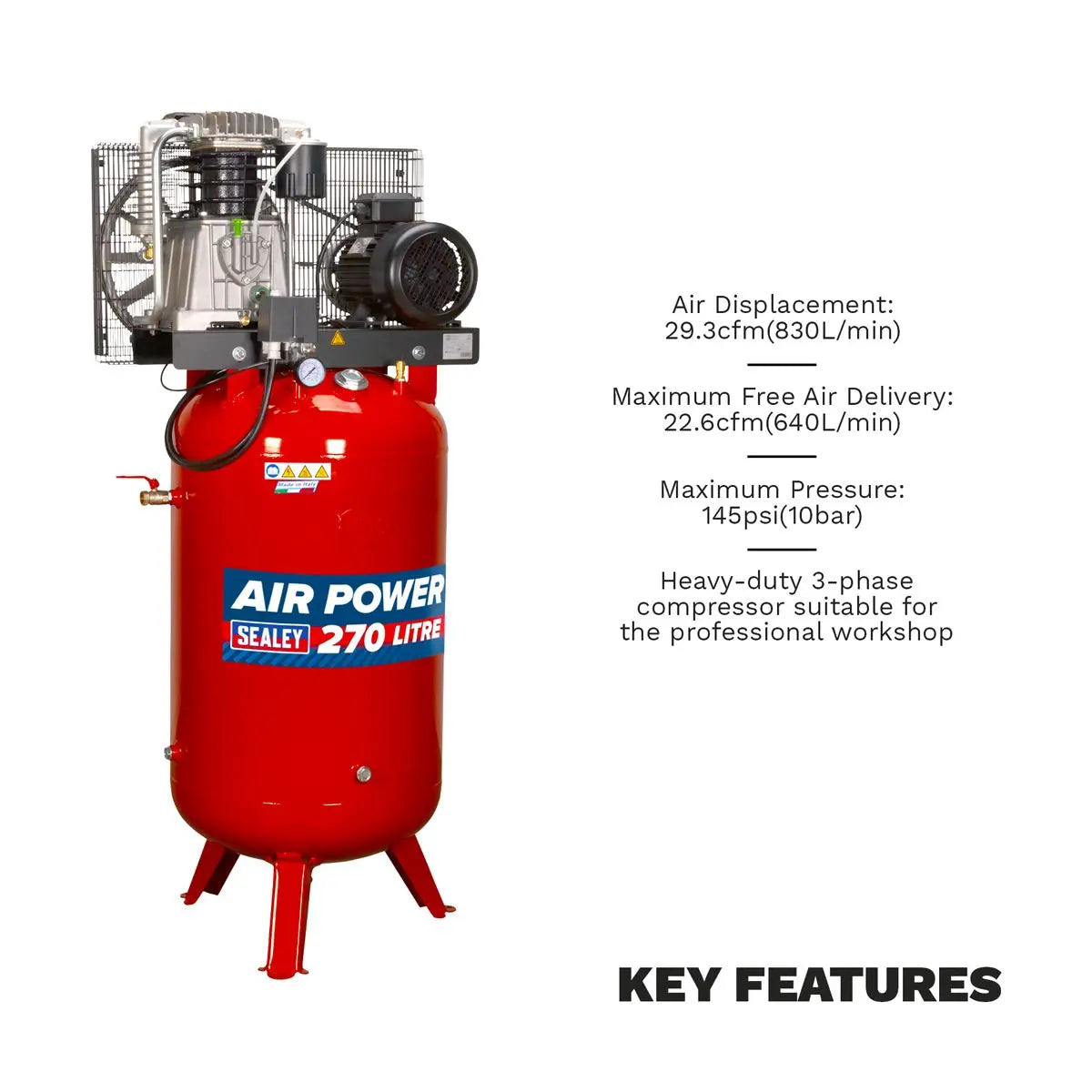

Air Displacement: 29.3cfm(830L/min).

Maximum Free Air Delivery: 22.6cfm(640L/min).

Maximum Pressure: 145psi(10bar).

Heavy-duty 3-phase compressor suitable for the professional workshop.

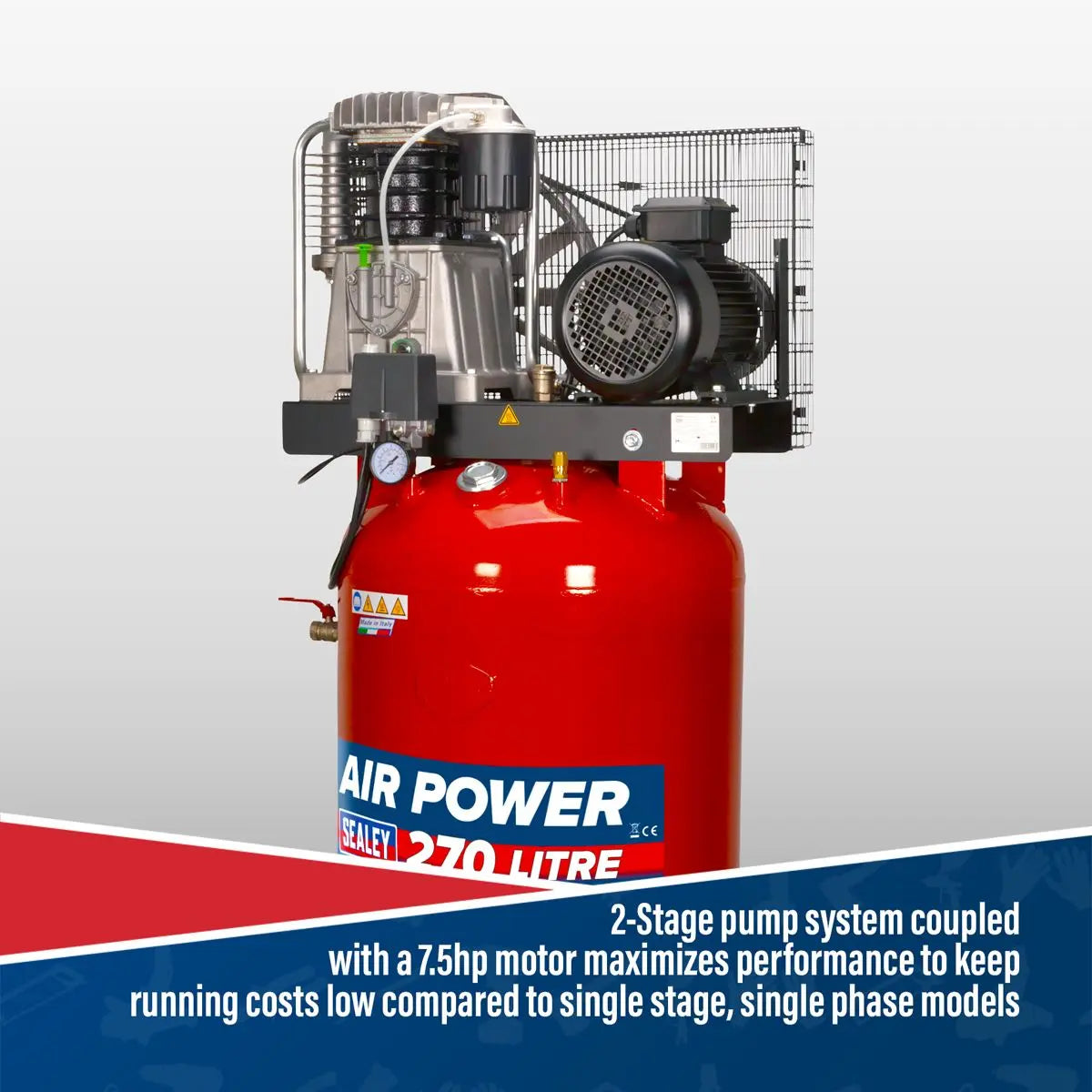

2-Stage pump system coupled with a 7.5hp motor maximizes performance to keep running costs low compared to single stage, single phase models.

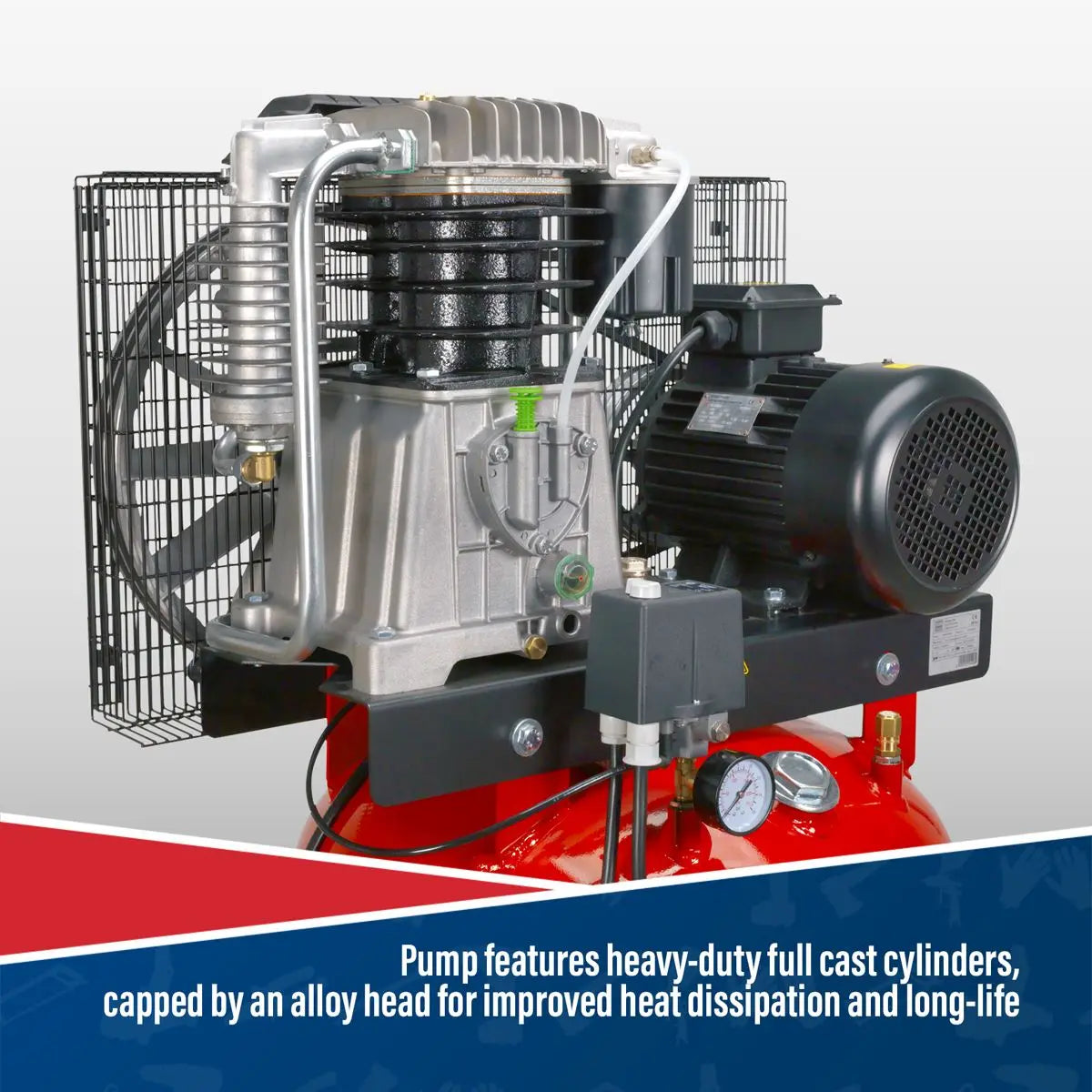

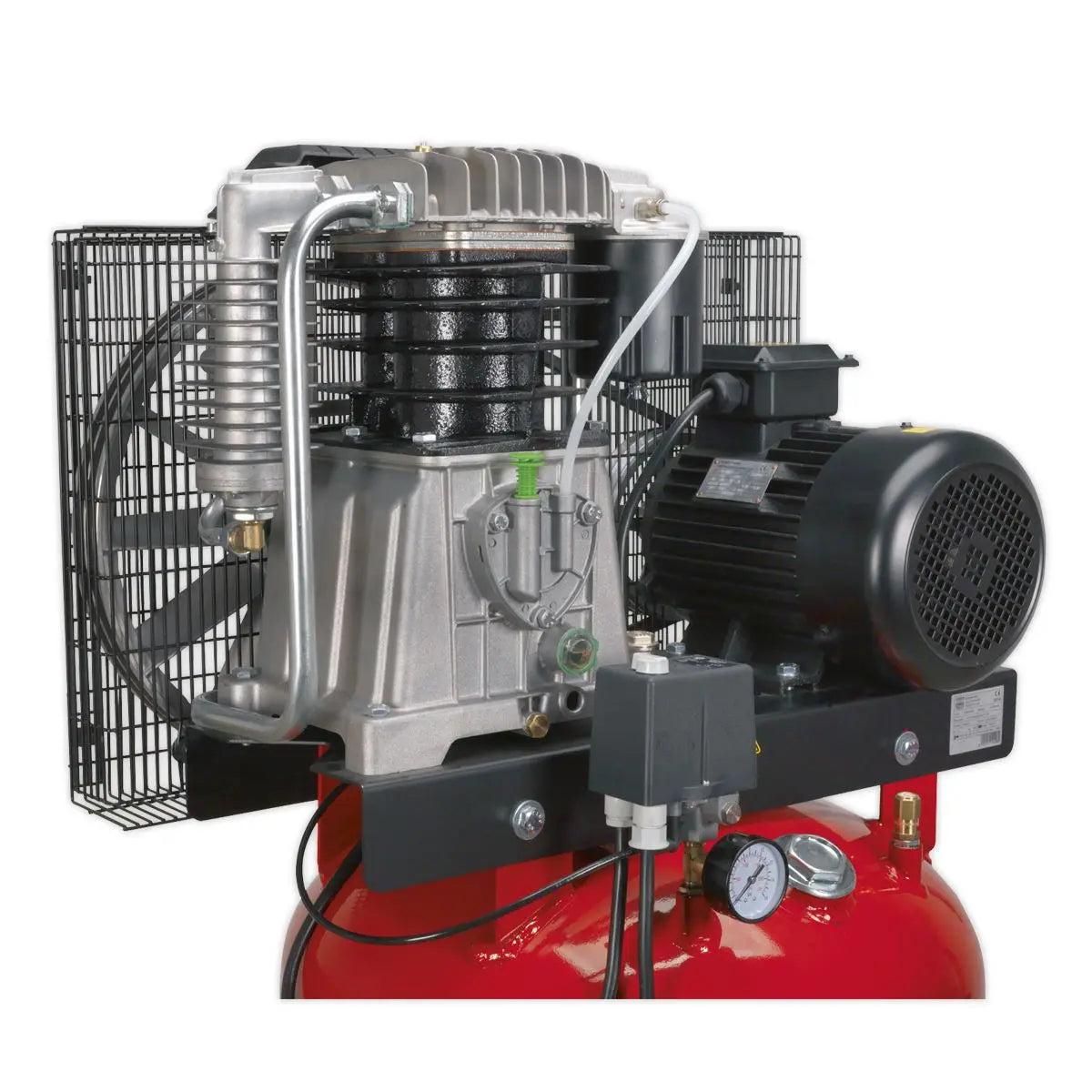

Pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long-life.

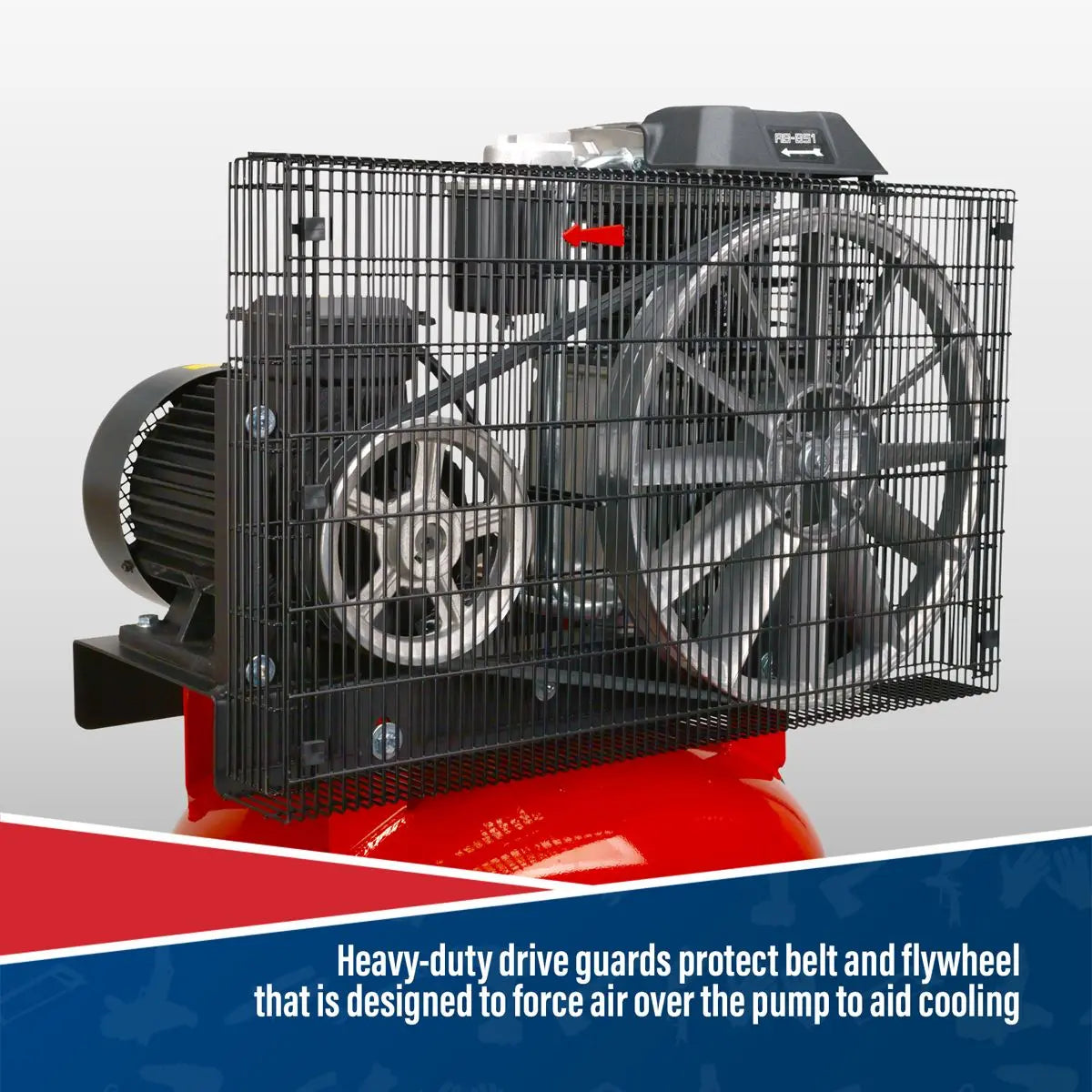

Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.

This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Specification:

• Model No SACV52775B
• Air Displacement cfm(L/min): 29.3(830)
• Brand: Sealey
• Maximum Free Air Delivery cfm(L/min): 22.6(640)
• Maximum Pressure: 145psi(10bar)
• Minimum Rated Supply: 32A
• Motor Output: 7.5hp
• Nett Weight: 200kg
• Oil Capacity: 1.57L
• Outlet: 3/4"BSP Female Tap
• Phase: 3ph
• Receiver Capacity: 270L
• Size (W x D x H): 770 x 620 x 1775mm
• Speed: 1280rpm
• Supply: 415V/32A

Product Guarantee: 1 Year
Catalogue Page: Page 781

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
