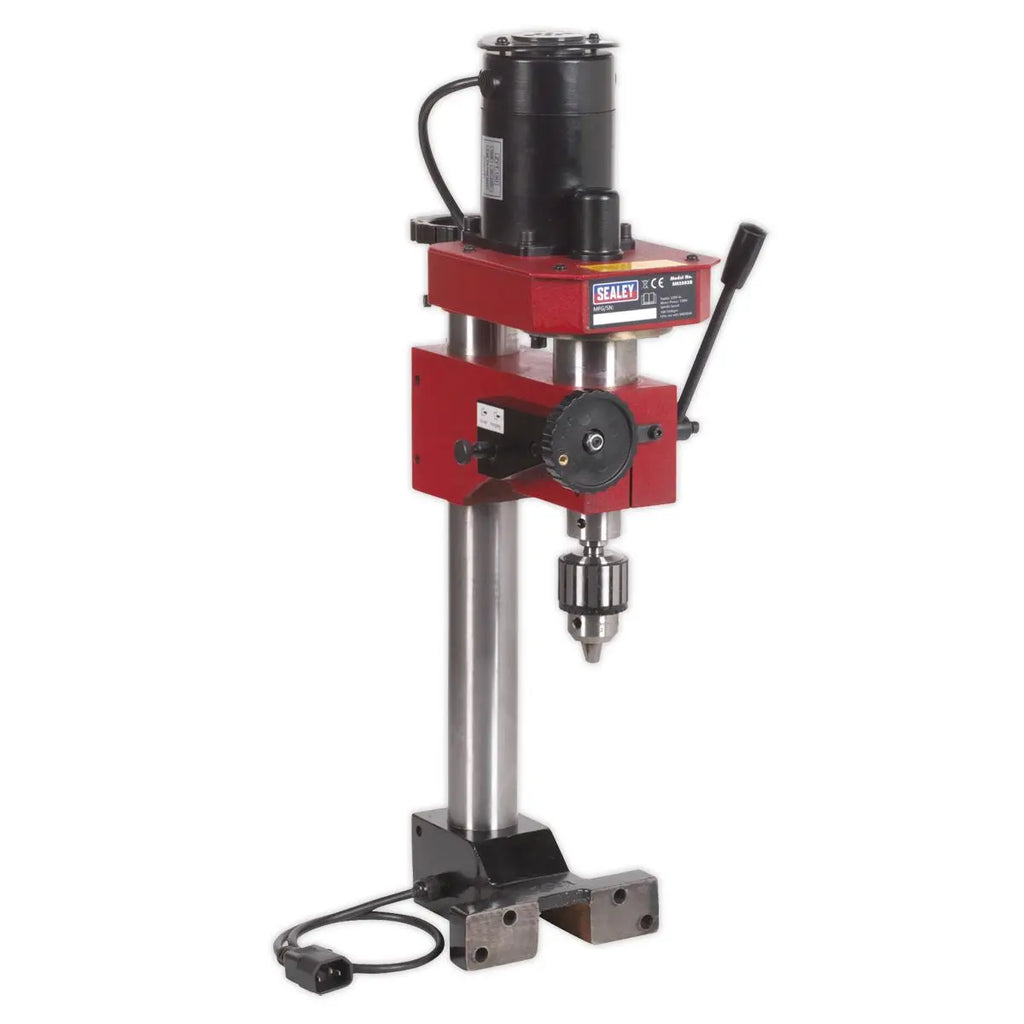

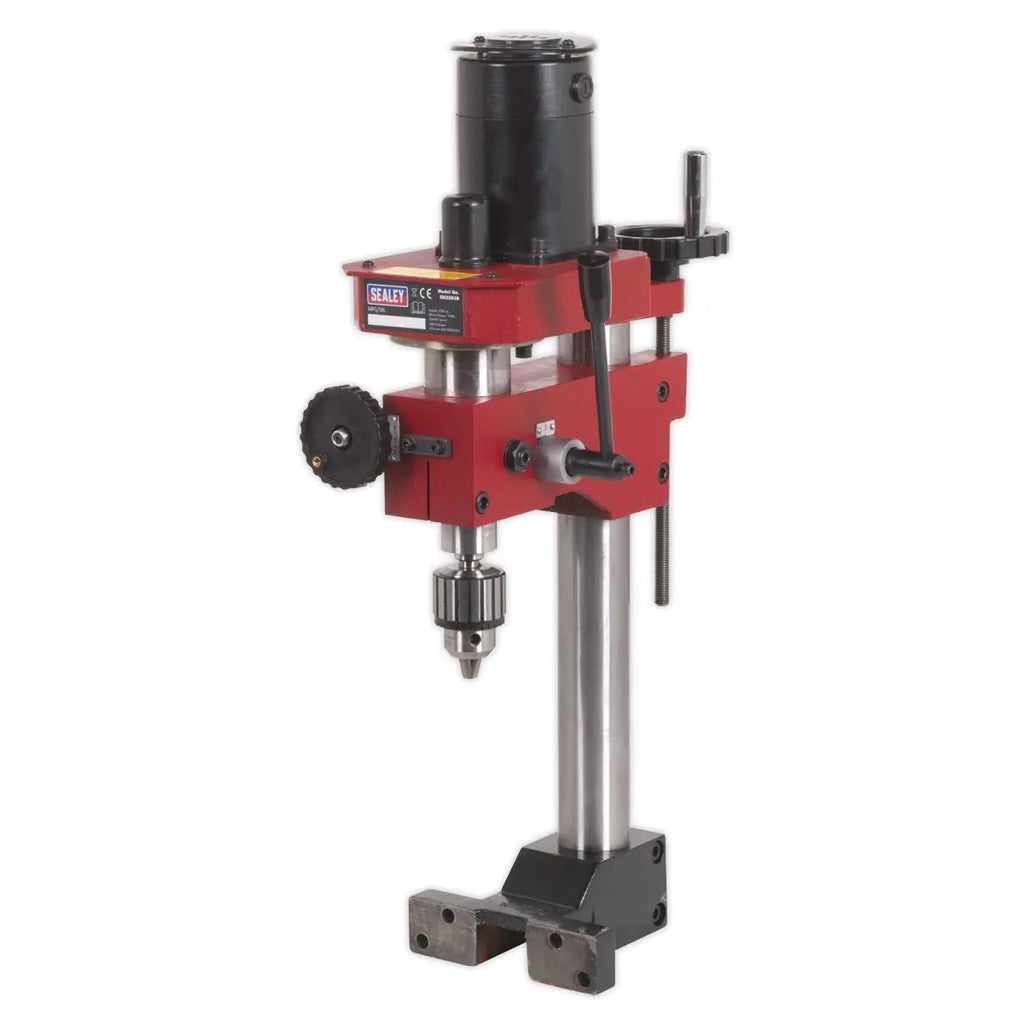

Sealey Drill Head for Mini Lathe SM2503A

Sealey Drill Head for Mini Lathe SM2503A

Transforms Model No. SM2503A Metalworking Mini Lathe into a Lathe/Mill Drill combination.

Easily retrofitted.

Offers the flexibility to handle most materials.

Features 150W motor.

Drilling/Milling Spindle Speed/Travel: 100-1500rpm/30mm.

Maximum Drilling/Milling Capacity: 10mm.

Creates space efficient versatile lathe mill/drill machine.

Specification:

• Model No SM2503B
• Brand: Sealey
• Distance from Spindle Centre to Column: 100mm
• Distance from Spindle to Table: 180mm
• Drilling/Milling Spindle Speed: 100-1300rpm
• Drilling/Milling Spindle Travel: 30mm
• Maximum Drilling/Milling Capacity: 10mm
• Motor Power: 150W - 230V
• Nett Weight: 14kg
• Spindle Taper: MT2
• T-Slot: 8mm

Product Guarantee: 1 Year
Catalogue Page: Page 1196

Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
