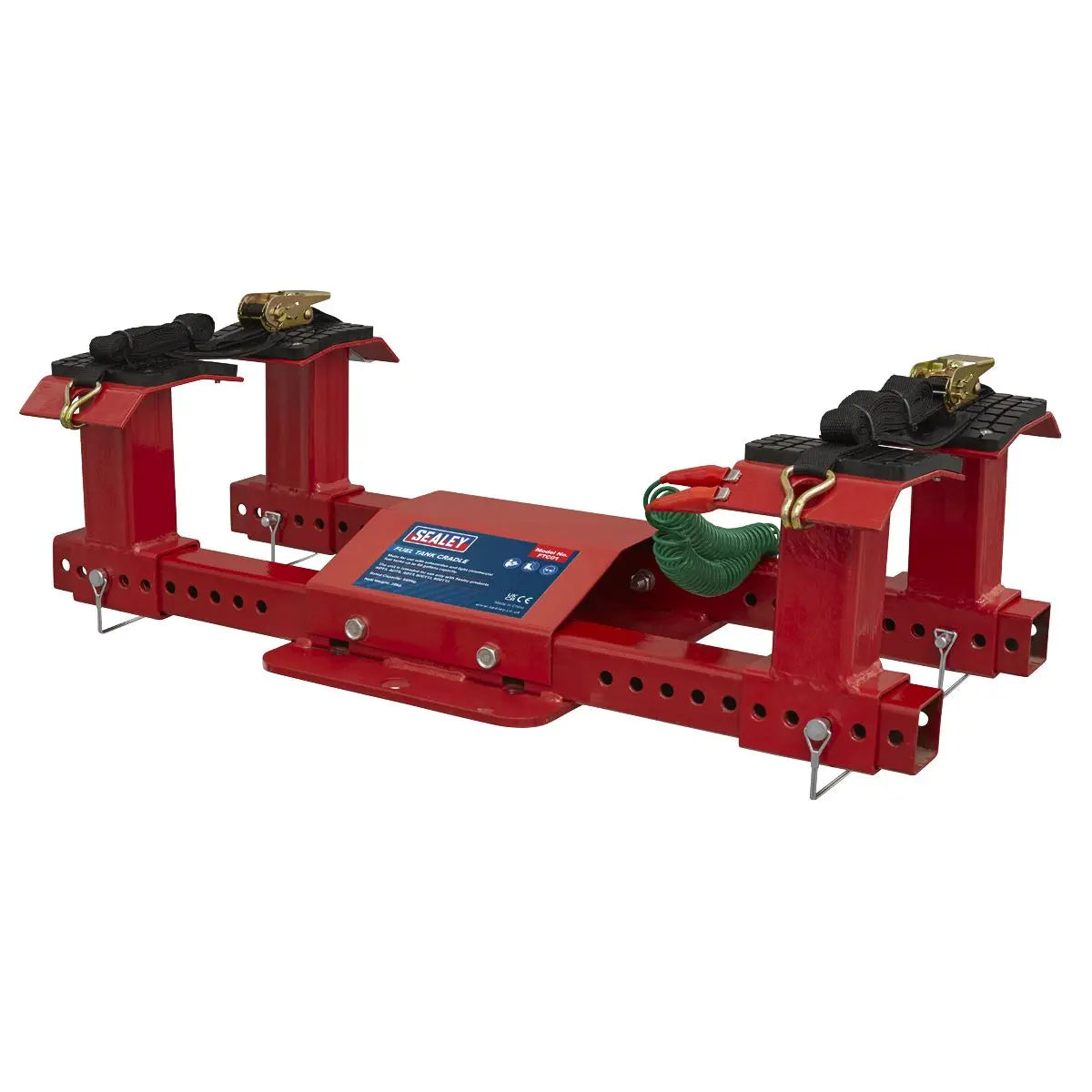

Sealey Fuel Tank Cradle & 500kg Transmission Jack Combo
TELESCOPIC RAM - A two-stage ram reduces the clearance.
HIGH SPEED LIFT - Quick lift, when unladen, reducing the foot pumps required to meet the load. But when laden slows to give control and accuracy.
FOOT PEDAL OPERATION - Keeping hands free for fixings and adjustments.
SAFE - Spring loaded dead man's safety release control reduces the risk of inadvertent lowering.
HIGHLY MANOEUVRABLE - Large, smooth running castors, make positioning quick and easy.
LARGE CAPACITY - Made for automotive and light commercial fuel tanks up to a capacity of 40 gallons (tank must be emptied before handling).
VERSATILE - Four adjustable support arms can be easily positioned to fit many shapes and sizes.
PROTECTION - Rubber pads protect the tank while being supported.
SAFE - Includes two load restraint straps.
EASY ASSEMBLY - The adaptor can be fitted and removed from the transmission jack with ease as required.
Specification:
- Model No FTC500COMBO
- Brand: Sealey
- Capacity: 500TTJ - 500kg and FTC01 - 565kg
- Fixed/Adjustable Saddle: Adjustable
- Maximum Saddle Height: 1875mm
- Minimum Saddle Height: 890mm
- Nett Weight: 97.5kg
- Optional Accessories: N/A
- Pump Strokes to Maximum Height: N/A
- Ram Extensions: 2
- Saddle Adjustment - Left-to-Right: 65mm
- Saddle Tilt - Backward: 22°
- Saddle Tilt - Forward: 28°
Catalogue Page: Page 315
