Description

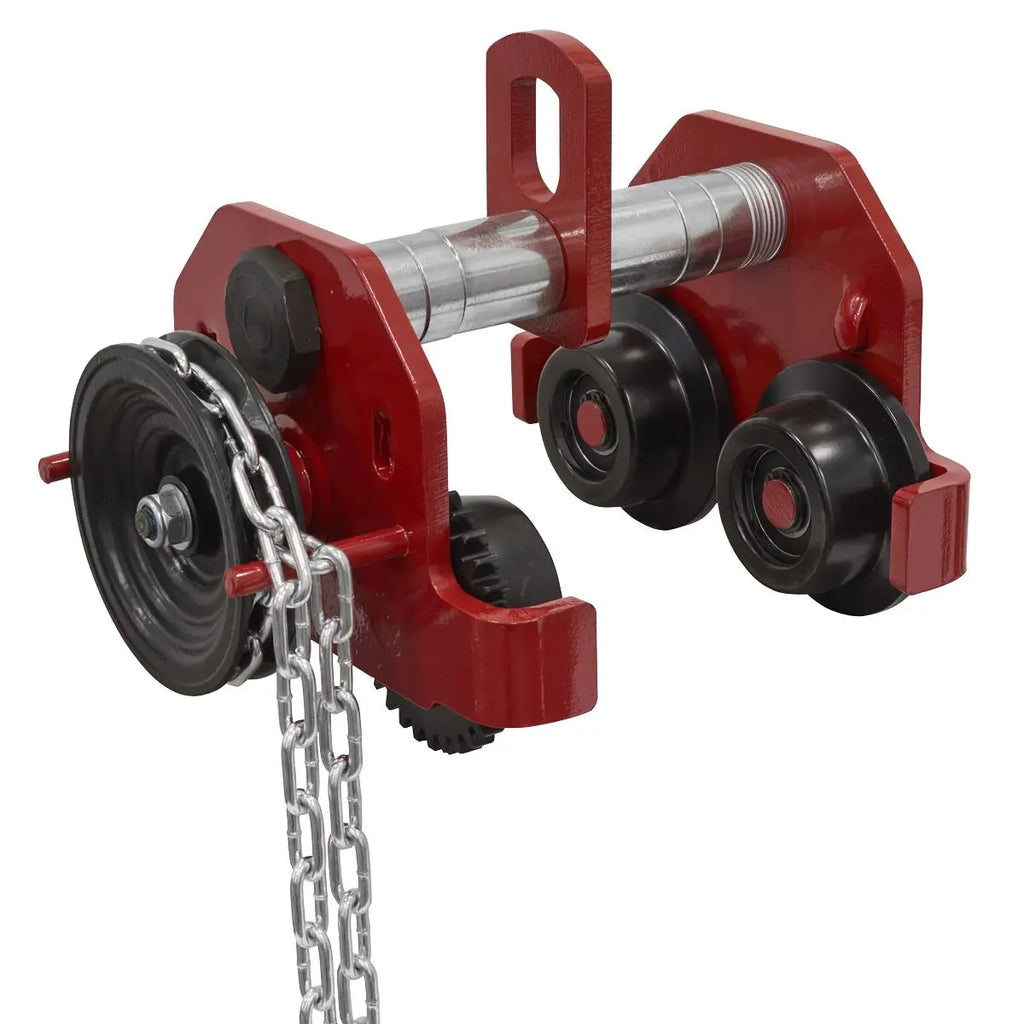

Sealey Geared Trolley 2 Tonne
PROFESSIONAL USE - Heavy-duty steel construction with powder coat paint finish for corrosion resistance.
MULTIPLE FUNCTIONS - Suitable for use with our lever hoists or chain blocks.
EASILY FITTED - Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways.
MANOEUVRABILITY - Geared block trolleys make it easier to move heavy loads along the gantry by using chain rather than manual handling.
SAFETY FIRST DESIGN - Includes anti-drop plates for added security.
Specification:
- Model No PT2000G
- Brand: Sealey
- Nett Weight: 15.8kg
- Capacity: 2000kg
- Minimum Curve Radius: 1300mm
- A: 255mm
- B: 138mm
- C: 138mm
- D: 102mm
- E: 128mm
- Minimum Distance Between Spans: 3000mm
- Maximum Distance Between Spans: 9000mm
- Minimum Standard I-Beam Dimensions (D x W x Web): 180 x 100 x 6mm
- Maximum Standard I-Beam Dimensions (D x W x Web): 350 x 150 x 9mm
- Weight: 15.8kg
