Description

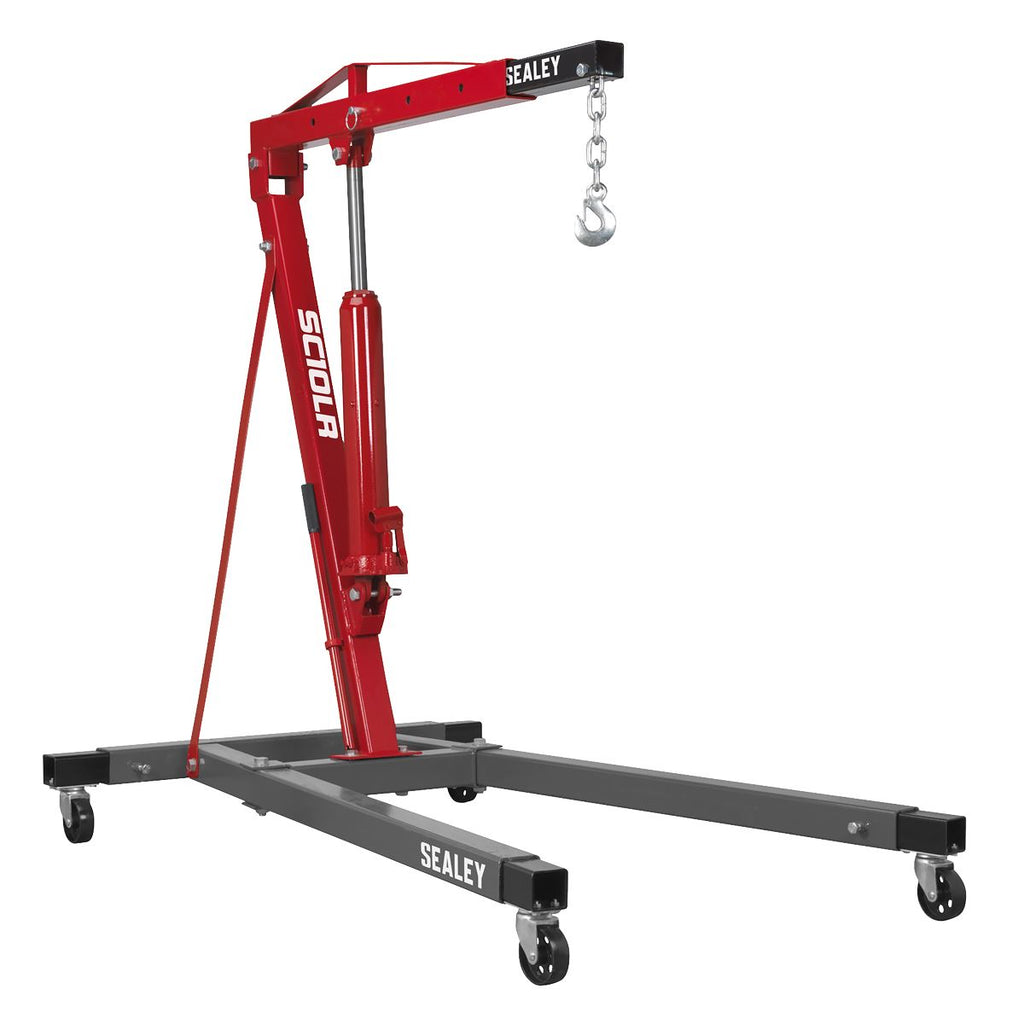

Sealey Long Reach Engine Crane with Extendable Legs 1 Tonne

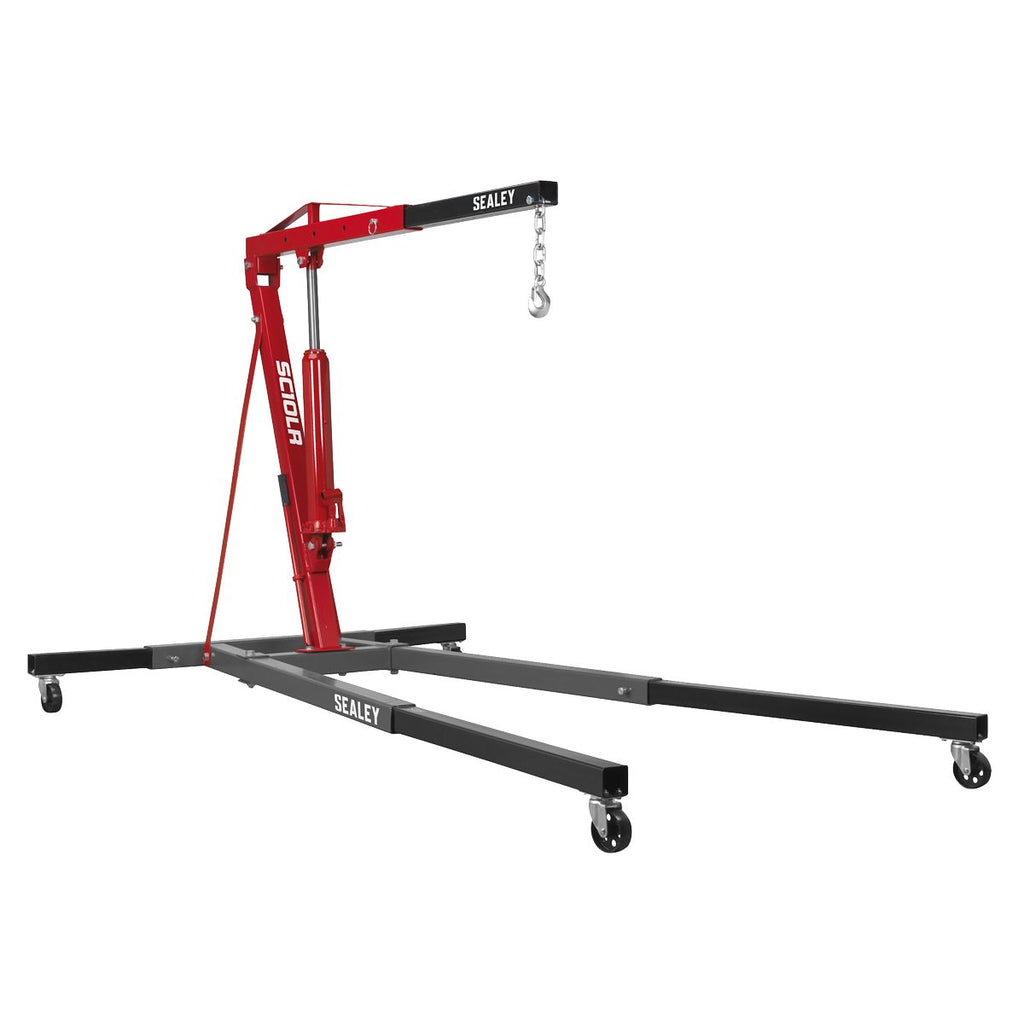

LONG REACH - Heavy-duty front and rear castors are on extendable legs to give improved stability, particularly when operating at maximum jib extension of 1447mm.
SUSTAIN VIEW - Side pump for easy access and to maintain sight of the load being lifted. Removeable handle.
FOLDABLE - Folding design for easy transportation and storing.
EASY ASSEMBLY - Delivered in knock-down form for reduced freight cost.
NOTE FOR DELIVERY - This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Specification:
- Model No SC10LR
- Brand: Sealey
- Height Jib Down: 1446mm
- Height of Frame: 180mm
- Length Legs Extended: 1600mm
- Length of Jib Position 1: 937mm
- Length of Jib Position 2: 1107mm
- Length of Jib Position 3: 1277mm
- Length of Jib Position 4: 1447mm
- Length of Jib Position 5: n/a
- Length: 1450mm
- Lifting Capacity in Position 1: 1000kg
- Lifting Capacity in Position 2: 750kg
- Lifting Capacity in Position 3: 500kg
- Lifting Capacity in Position 4: 250kg
- Lifting Capacity in Position 5: n/a
- Max. Lift Ht at Jib Position 1: 1750mm
- Max. Lift Ht at Jib Position 2: 1850mm
- Max. Lift Ht at Jib Position 3: 1950mm
- Max. Lift Ht at Jib Position 4: 2050mm
- Max. Lift Ht at Jib Position 5: n/a
- Nett Weight: 81.5kg
- Rear Width: 860/1160mm
- Standard Leg Length: 1450mm
- Extended Leg Length: 1590mm
- Extendable Distance: 140mm
- Width Front Frame: 690-720mm
- Width Inside Front Frame: 381/605mm
