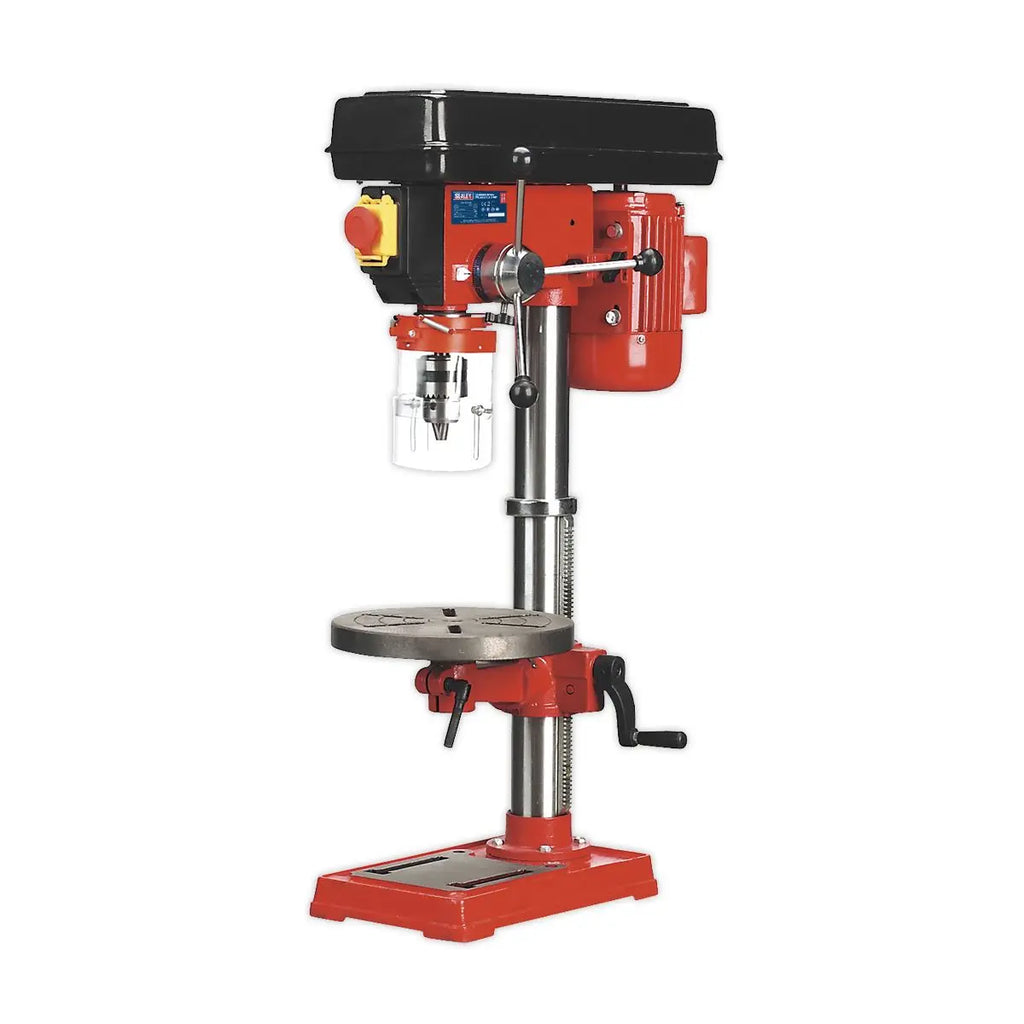

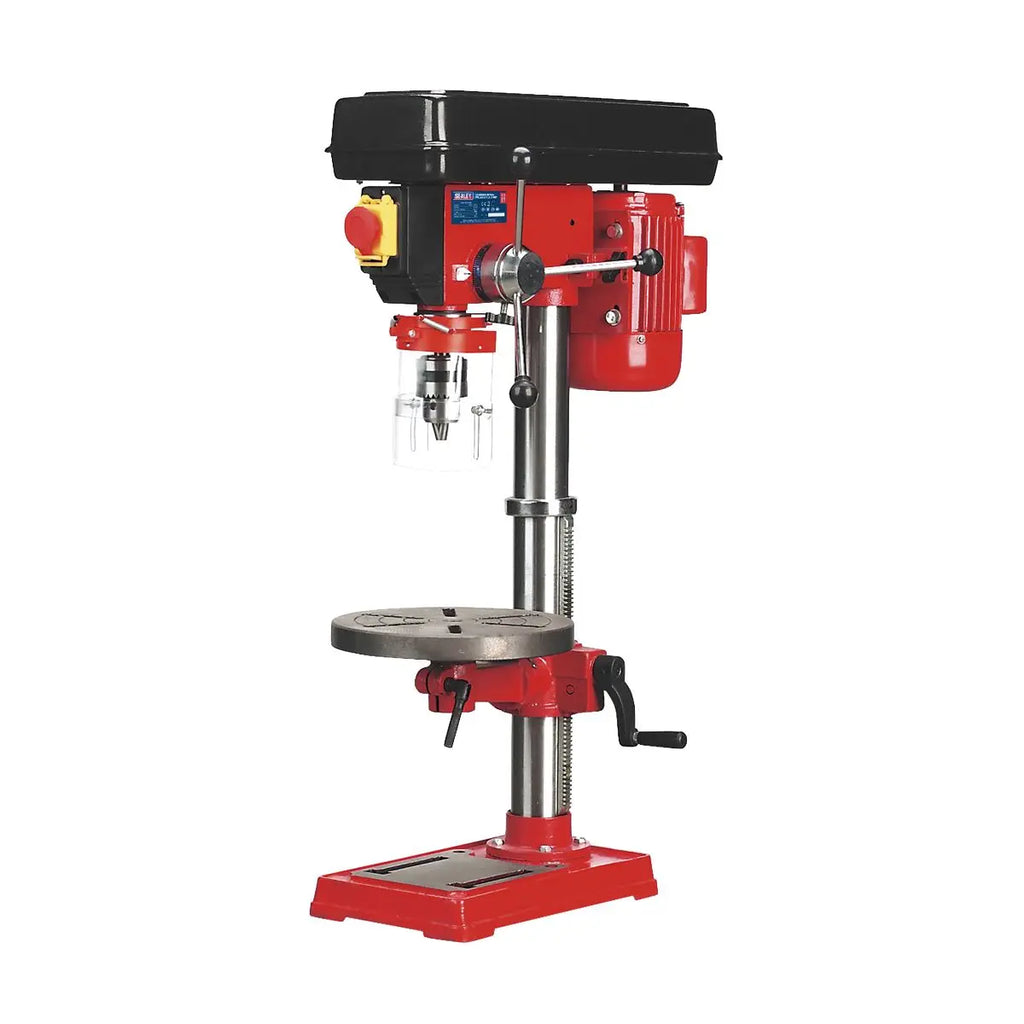

Sealey Pillar Drill Bench 12-Speed 840mm Height 370W/230V

Save 35%
SKU: GDM92B

Price:
Sale price$363.00 Regular price$560.00
Stock:
In stock
26 Sep. Estimated arrival
23 Sep. Order placed
24-25 Sep. Order dispatches
26 Sep. Delivered!

Description




Sealey Pillar Drill Bench 12-Speed 840mm Height 370W/230V

One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications.

Safety devices fitted include a no-load voltage release switch, allowing insurance company approval for use in educational establishments.

Model No. GDM50B and up have Morse taper spindle housings for accepting taper shank drill bits.

All models offer multiple speed drives and access to drive belts is denied during operation by mechanical protection.

All drills are fitted with rack and pinion feed shafts with preset depth control for repetitive work.

Mortise attachment available, order Model No. MA10.

16mm(5/8") Capacity chuck, MT2.

Height: 840mm.

Spindle Centre to Column: 127mm.

Motor Power: 220W, Input Power: 370W.

Column Diameter: 60mm.

Spindle Travel: 60mm.

Weight: 32kg.

Specification:

  • Model No GDM92B
  • Base Size: 345 x 215mm
  • Brand: Sealey
  • Collar Diameter: Ø60mm
  • Column Diameter: Ø60mm
  • Drilling Capacity (Chuck Size): 16mm
  • Maximum Distance Spindle to Base: 540mm
  • Maximum Distance Spindle to Table: 390mm
  • Motor Power (Start): 220W(370W)
  • Nett Weight: 32kg
  • Number of Speeds: 12
  • Optional Accessories: GDMX/KC - Keyless Chuck 16mm:
  • Overall Height: 840mm
  • Speed Range: 210-2580rpm
  • Spindle Centre to Column: 127mm
  • Spindle Nose Taper: MT2
  • Spindle Travel: 60mm
  • Supply: 230V
  • Swing: 254mm
  • Working Base Surface Size: 160 x 180mm
  • Working Table Surface Size: Ø248mm
Product Guarantee: 1 Year
Catalogue Page: Page 1190
