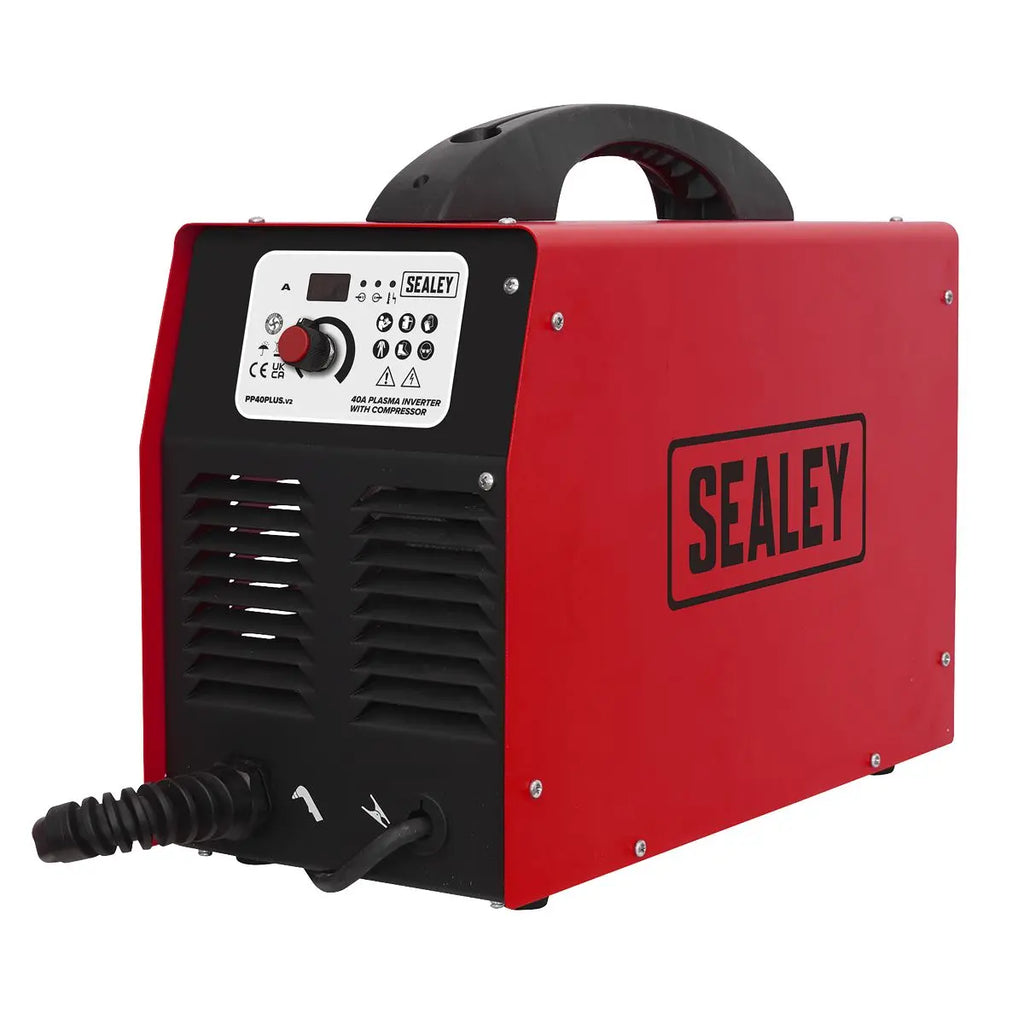

Sealey Plasma Inverter 40A with Compressor

Sealey Plasma Inverter 40A with Compressor

Features an integral compressor yet weighs only 18.5kg.

Inverter power supply fitted with plasma cutter control circuitry.

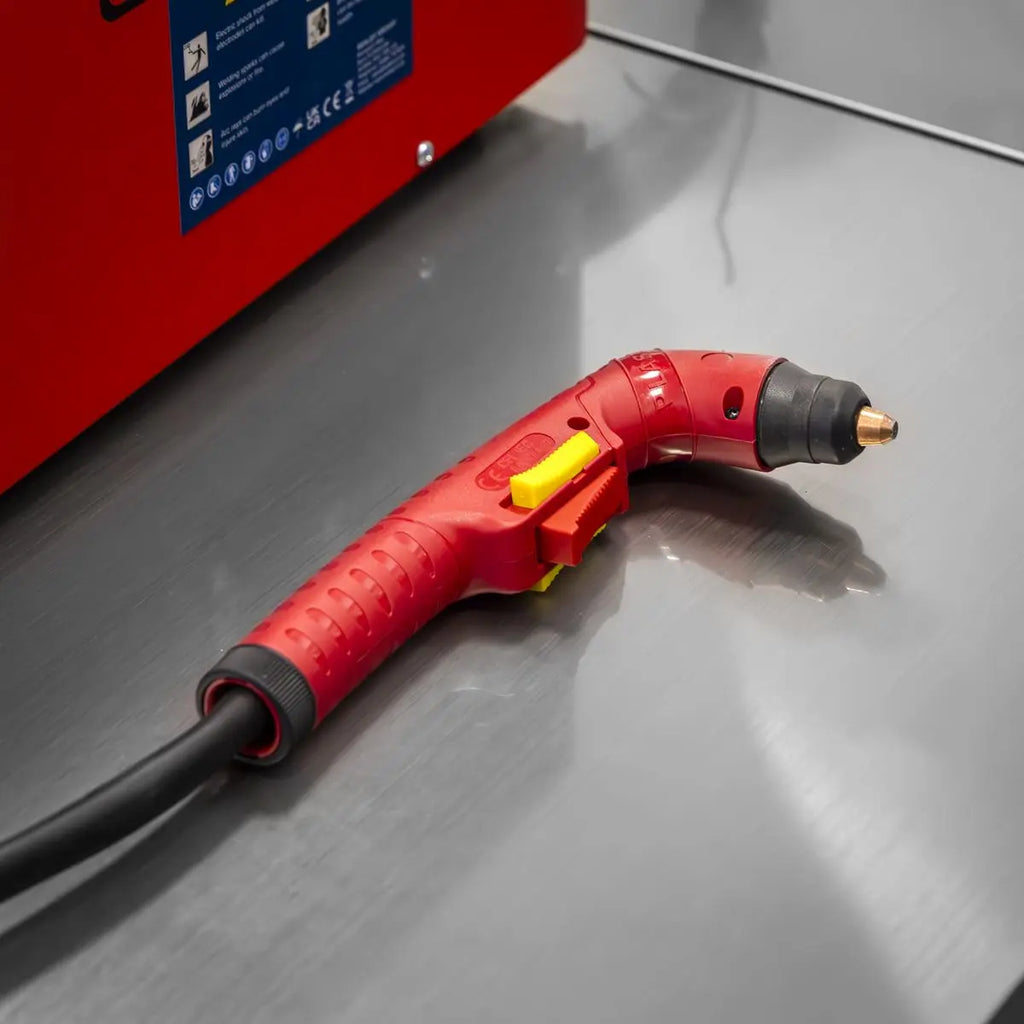

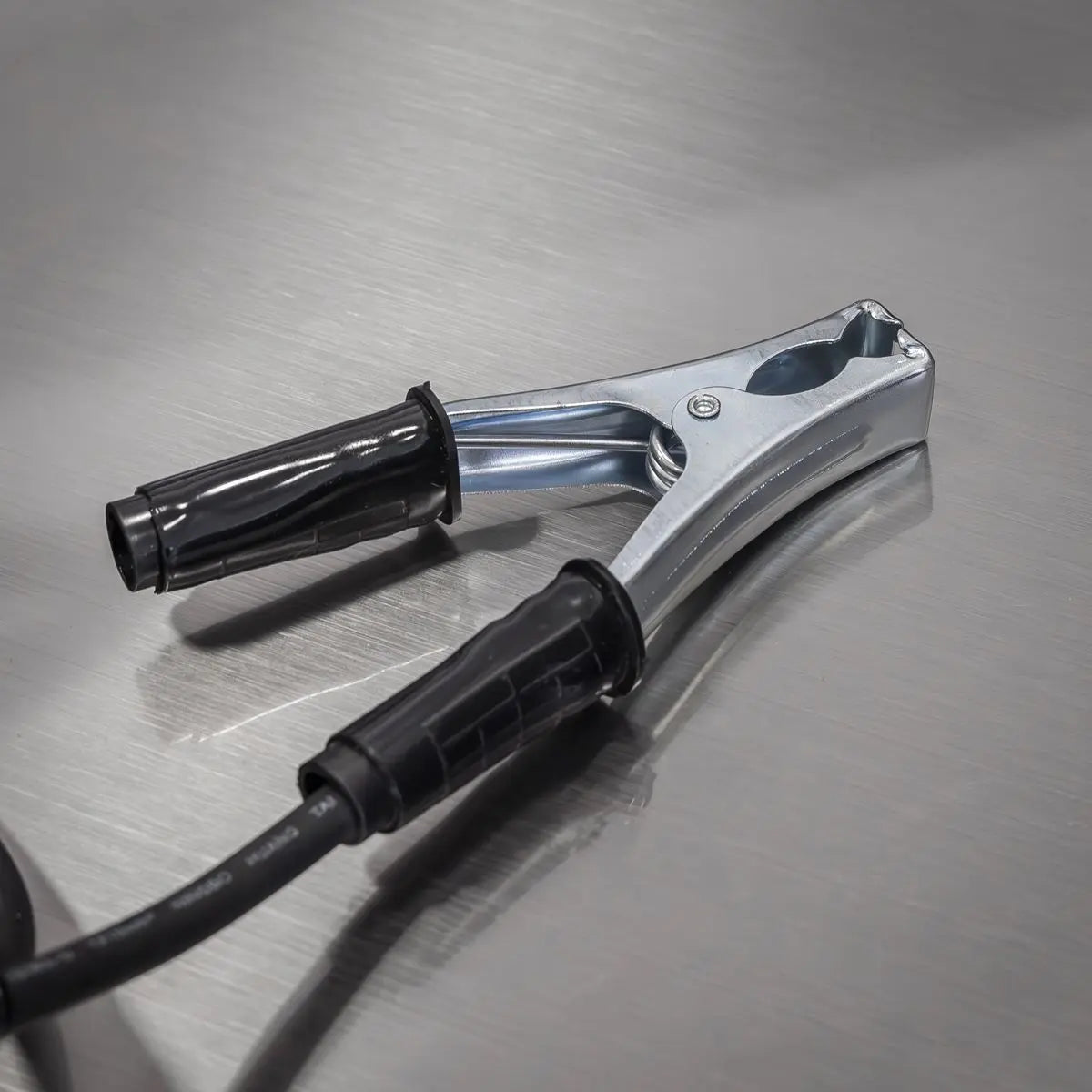

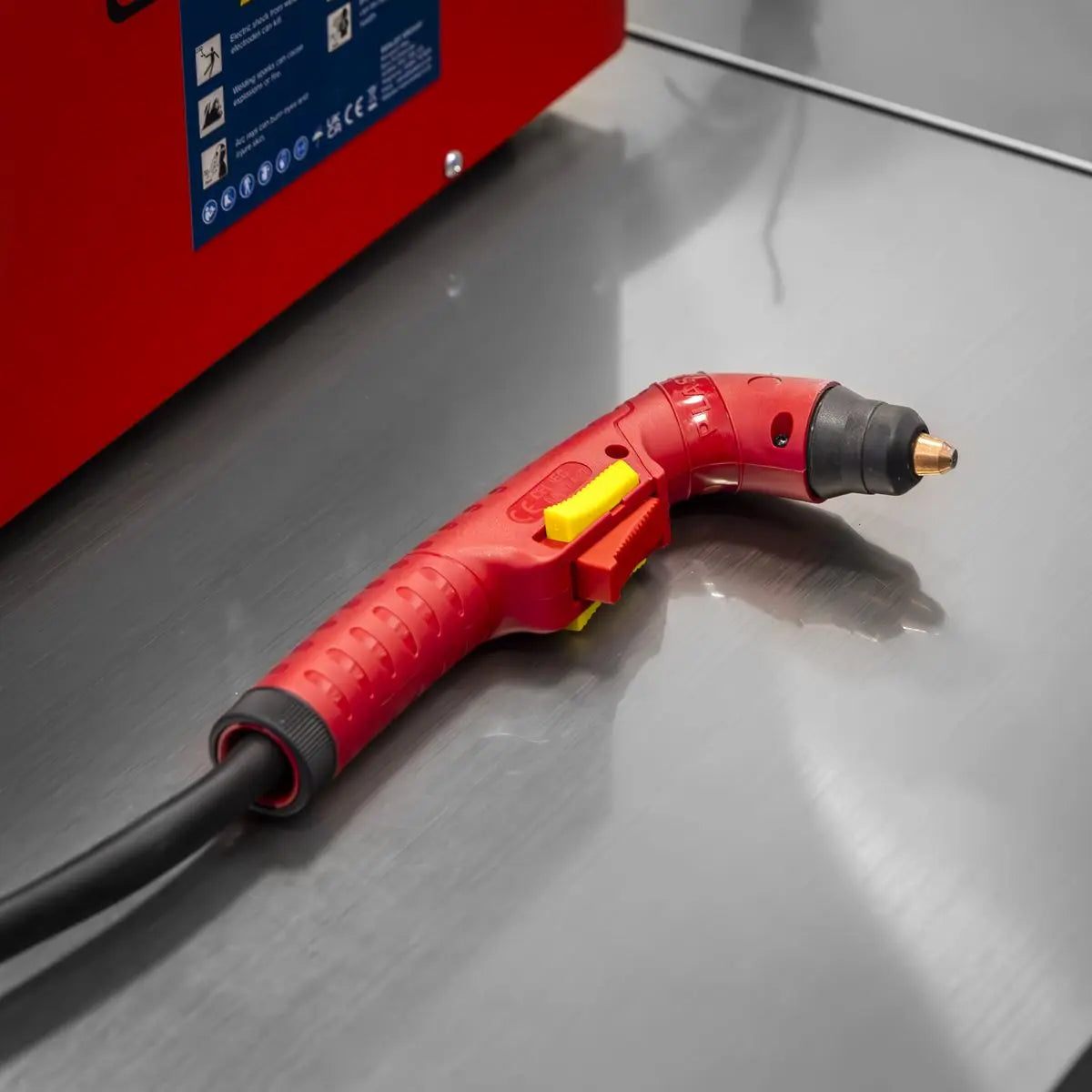

With built-in 4m plasma torch, earth cable and 4m gas hose.

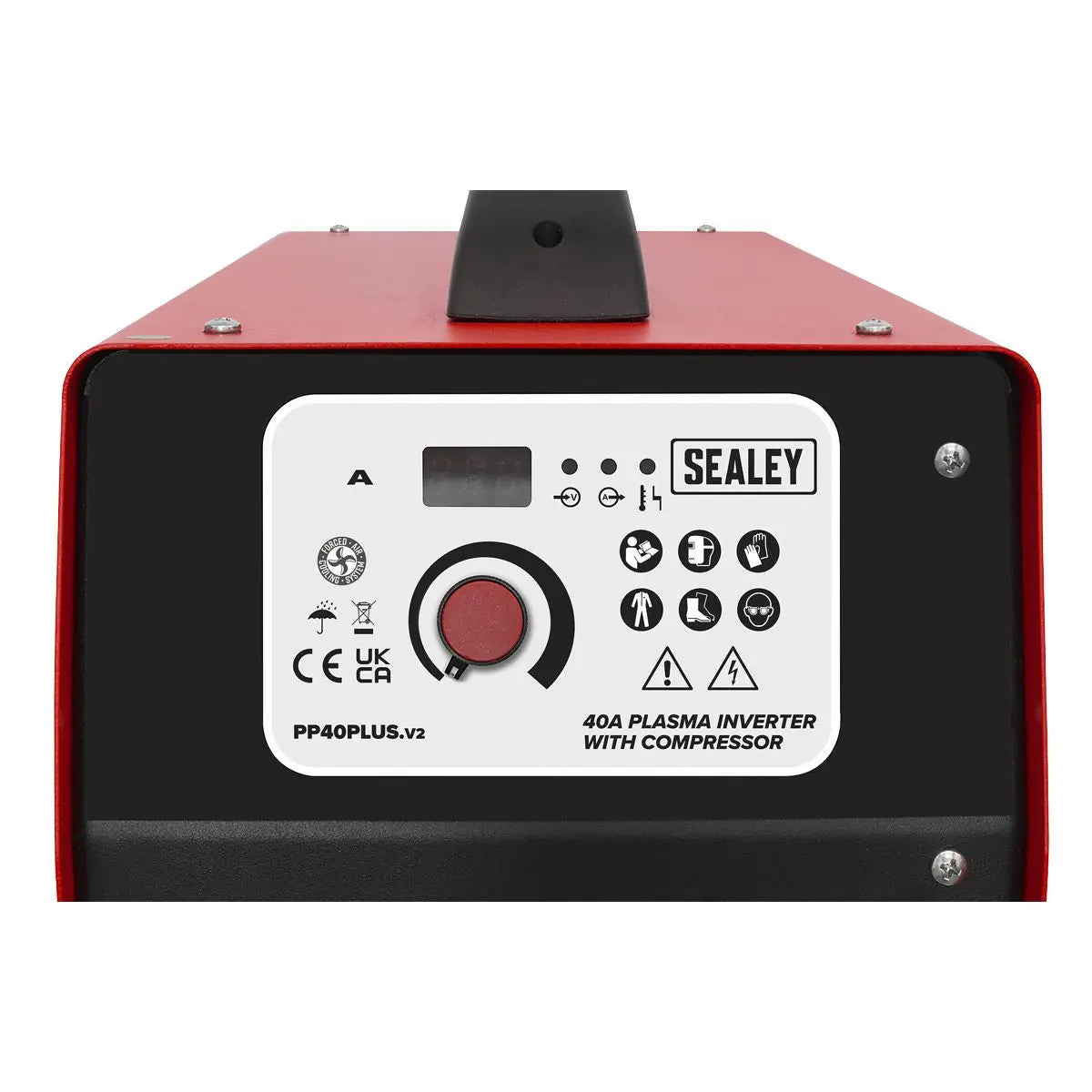

Features LED display to show the current output and dial adjustment from 15-40A.

Three indication lights show voltage input, amps output and thermal overload.

Uses air to strike arc making it suitable for use near electrical equipment.

Ideal for cutting steel, stainless, galvanized steel, aluminium, copper and brass.

230V Supply.

Specification:

• Model No PP40PLUS
• Brand: Sealey
• Nett Weight: 18.5kg
• Power Output: 15-40A
({IF["Duty Cycle: 20% @ 40A 30% @ 35A , 60% @ 25A"!=""]})
• Duty Cycle: 20% @ 40A 30% @ 35A , 60% @ 25A
({ENDIF})
• Maximum Cutting Thickness: 10mm
• Air Requirements: Integral Compressor
• Air Pressure: n/a
• Absorbed Power: 6.9kW
• Supply: 230V*
• Insulation: F
• Protection: IP21S
• Nett Weight: 18.5kg
• Accessories*: Yes
• Replacement Consumables:
• Electrode, Short (Pack of 5): PP40PLUS.E (x5)
• Electrode, Long (Pack Qty):
• Nozzle, Short (Pack of 5): PP40PLUS.N (x5)
• Diffuser (Pack of 5): PP40PLUS.D (x5)
• Safety Cap (Pack of 2): PP40PLUS.SC (x2)
• Note: *To achieve maximum power a 32A supply may be required.

Product Guarantee: 1 Year
Catalogue Page: Page 750

Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
