Description

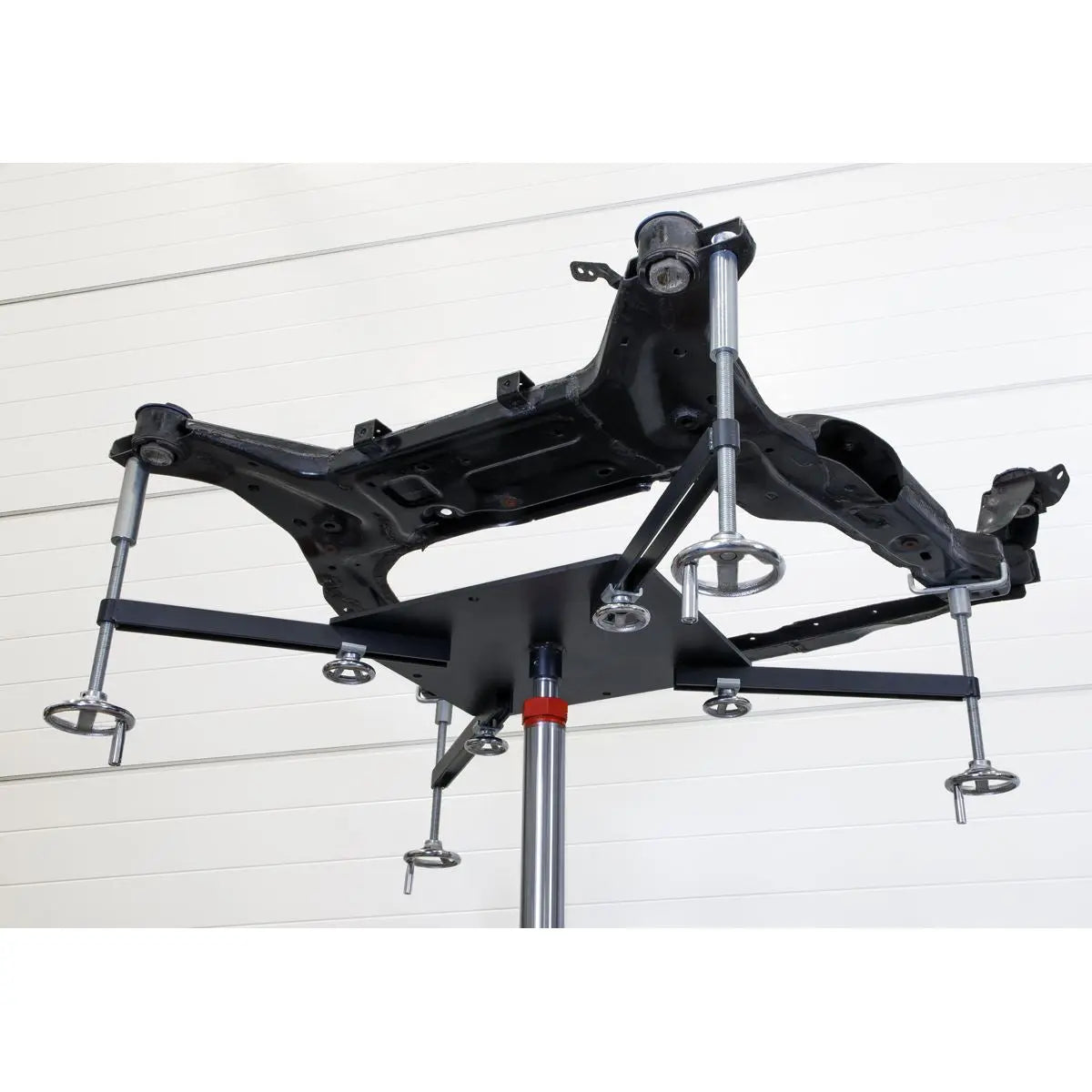

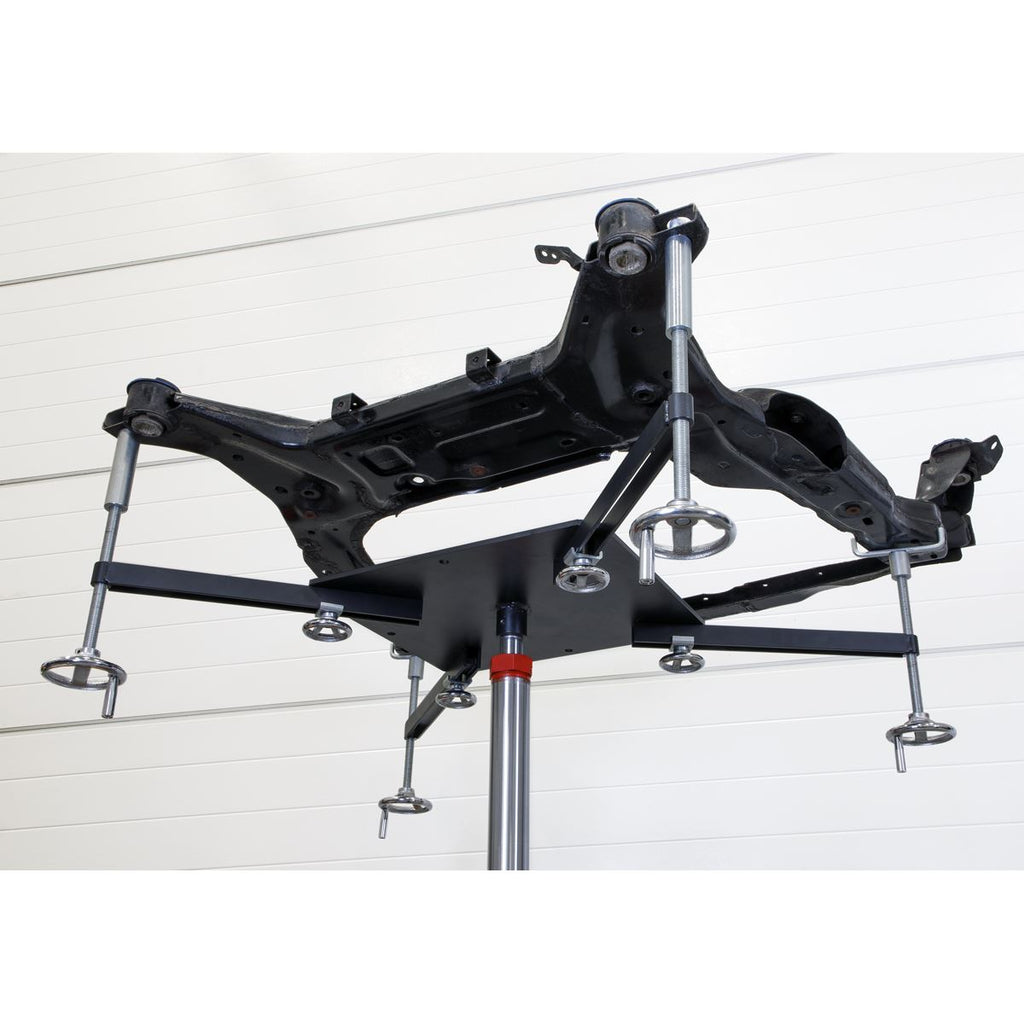

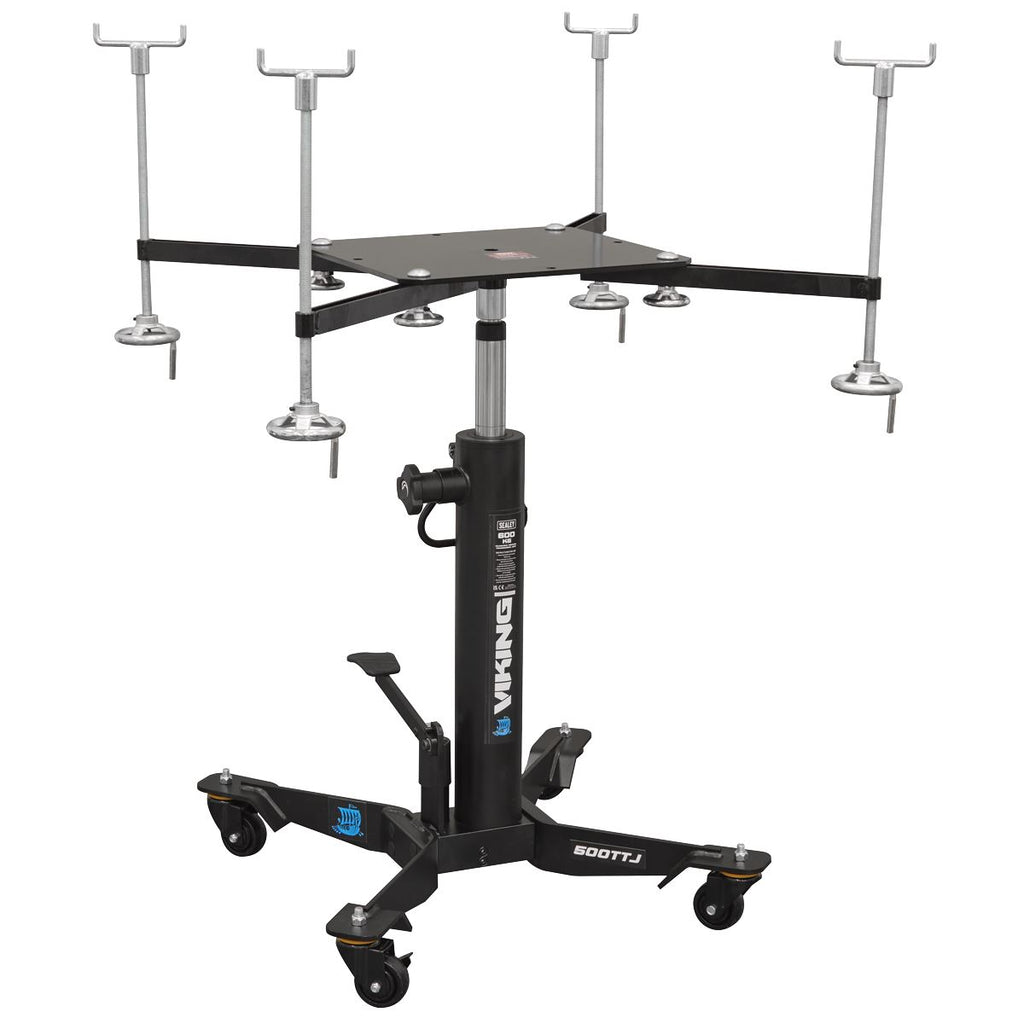

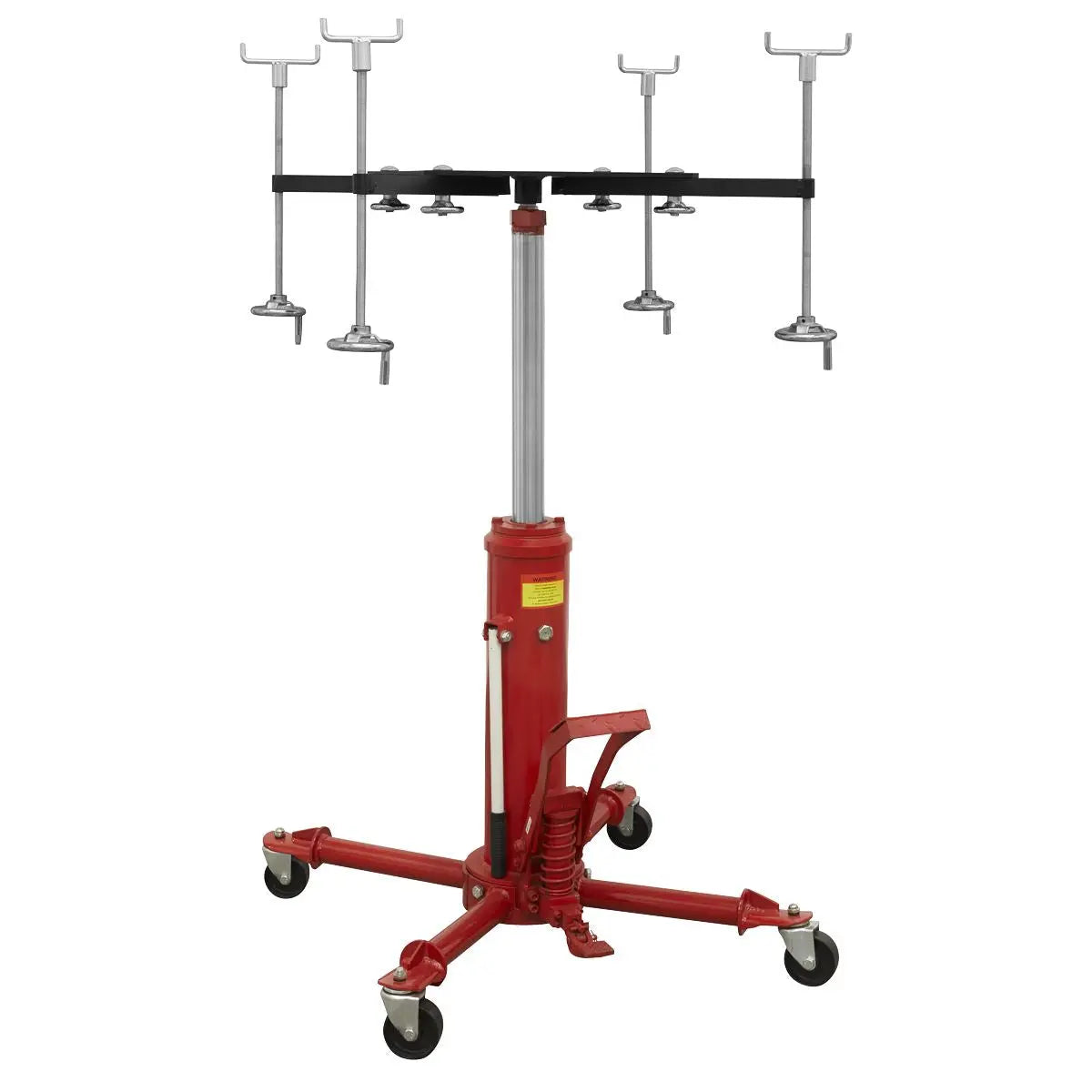

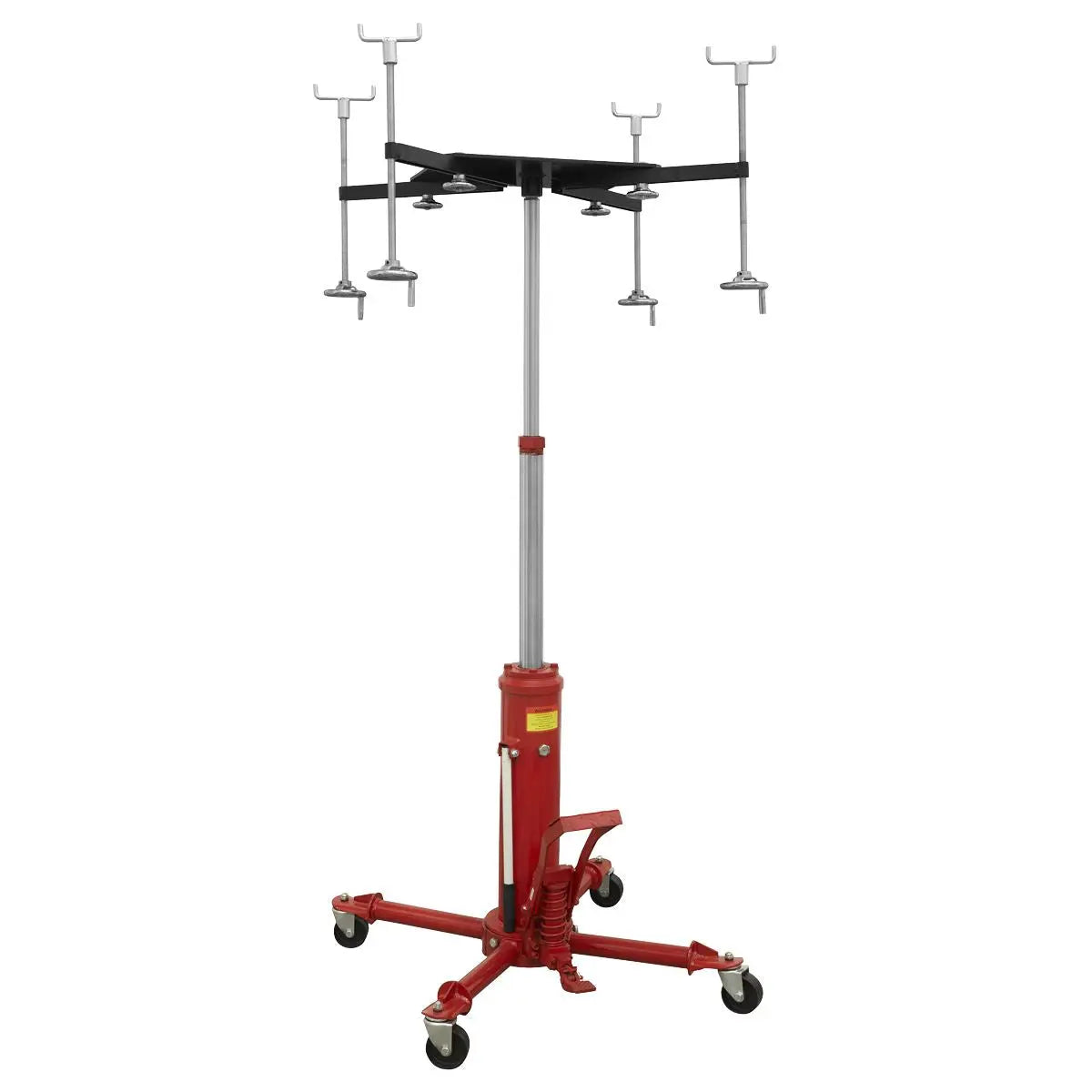

Sealey Subframe Cradle & 500kg Transmission Jack Combo
TELESCOPIC RAM - a two-stage ram reduces the clearance.
HIGH SPEED LIFT - quick lift, when unladen, reducing the foot pumps required to meet the load. But when laden slows to give control and accuracy.
FOOT PEDAL OPERATION - keeping hands free for fixings and adjustments.
SAFE - Spring loaded dead man's safety release control reduces the risk of inadvertent lowering.
HIGHLY MANOEUVRABLE - large, smooth running castors, make positioning quick and easy.

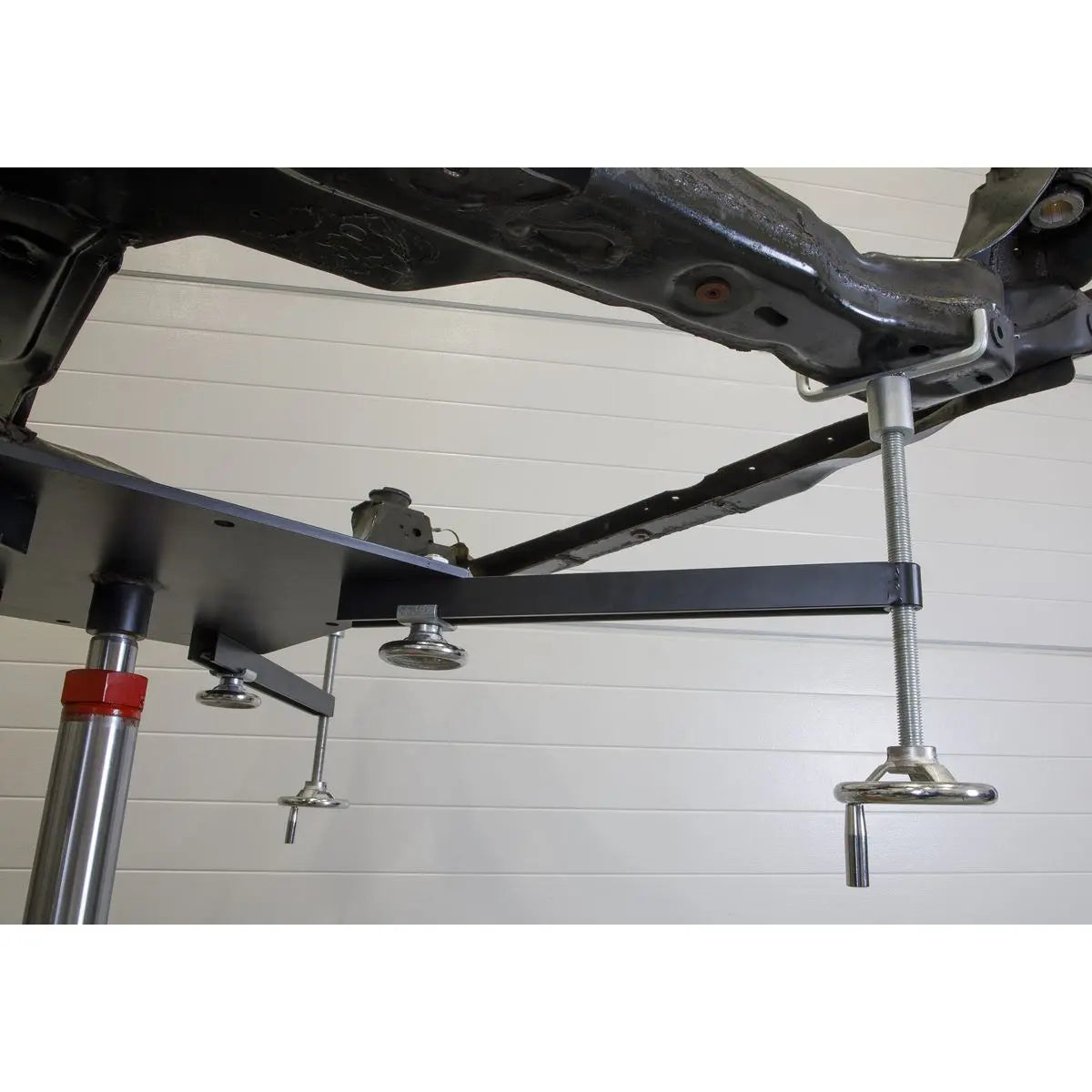

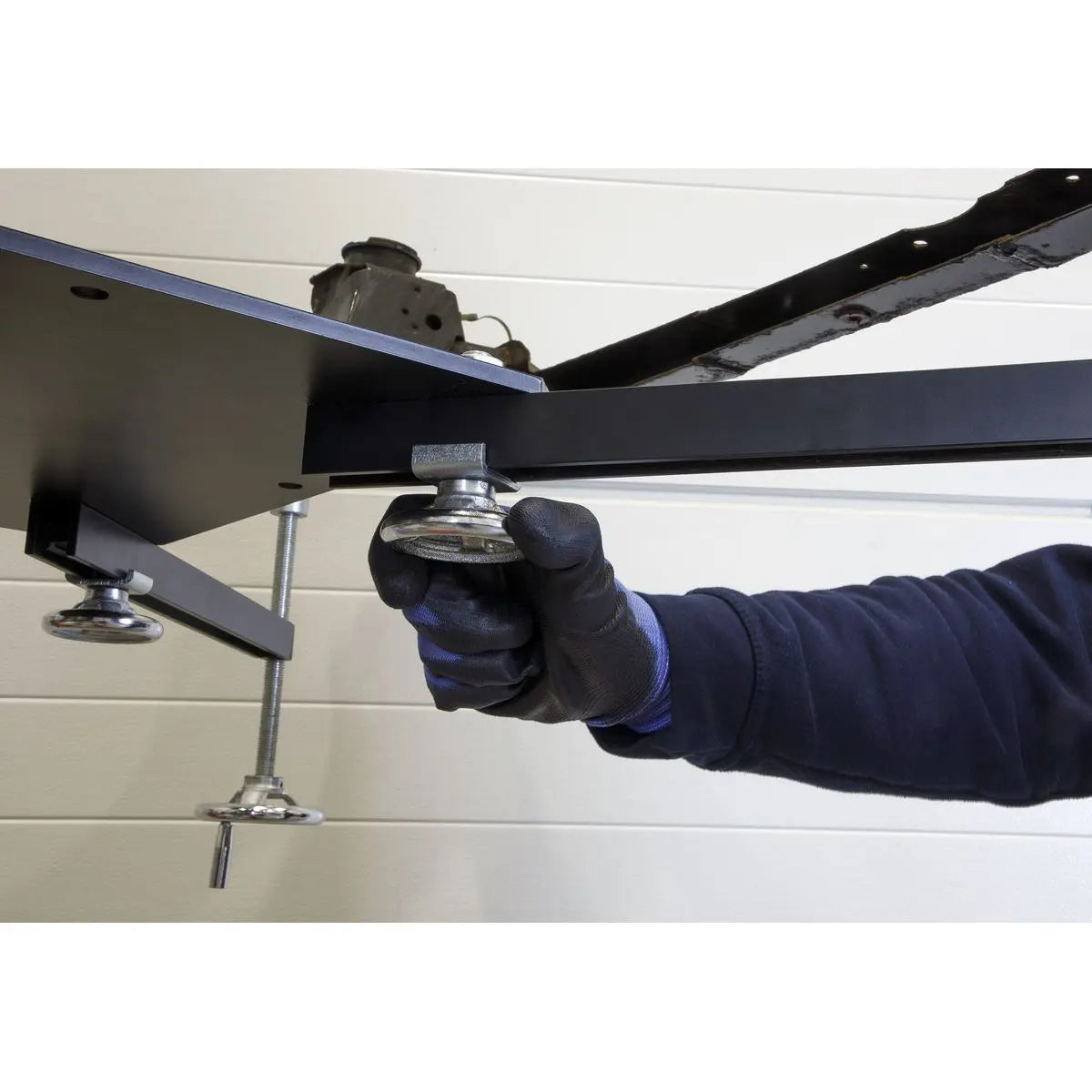

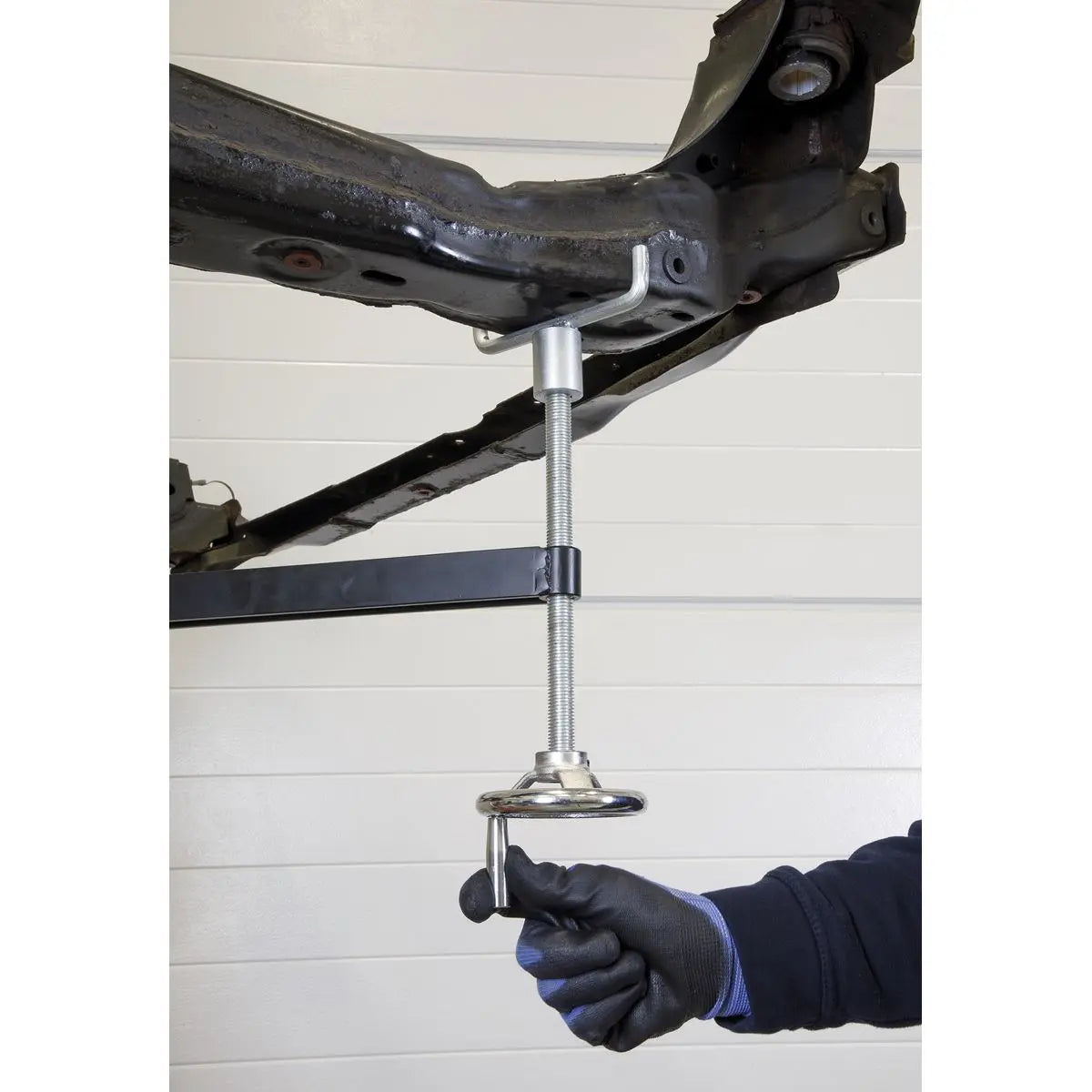

VERSATILE ADAPTOR - Fully adjustable Subframe/Engine support and supplied with various designs of fittings to suit different applications.
WILL ASSIST - in the removal and fitting of complete engine assemblies, rear axles, gearboxes, fuel tanks, exhaust systems and other awkward loads.
LABOUR SAVING DESIGN - allows many jobs to be carried out by one person.
EASY ASSEMBLY - the adaptor can be fitted and removed from the transmission jack with ease as required.
Specification:
- Model No SFC500COMBO
- Base Size: 1000 x 1000mm
- Brand: Sealey
- Capacity: 500TTJ - 500kg and SFC01 - 450kg
- Fixed/Adjustable Saddle: Adjustable
- Maximum Saddle Height: 1875mm
- Minimum Saddle Height: 890mm
- Nett Weight: 95.5kg
- Optional Accessories: N/A
- Pump Strokes to Maximum Height: N/A
- Ram Extensions: 2
- Saddle Adjustment - Left-to-Right: 65mm
- Saddle Tilt - Backward: 22°
- Saddle Tilt - Forward: 28°
Catalogue Page: Page 315
Downloadable Files:
- Material Safety Data Sheet: View Here
