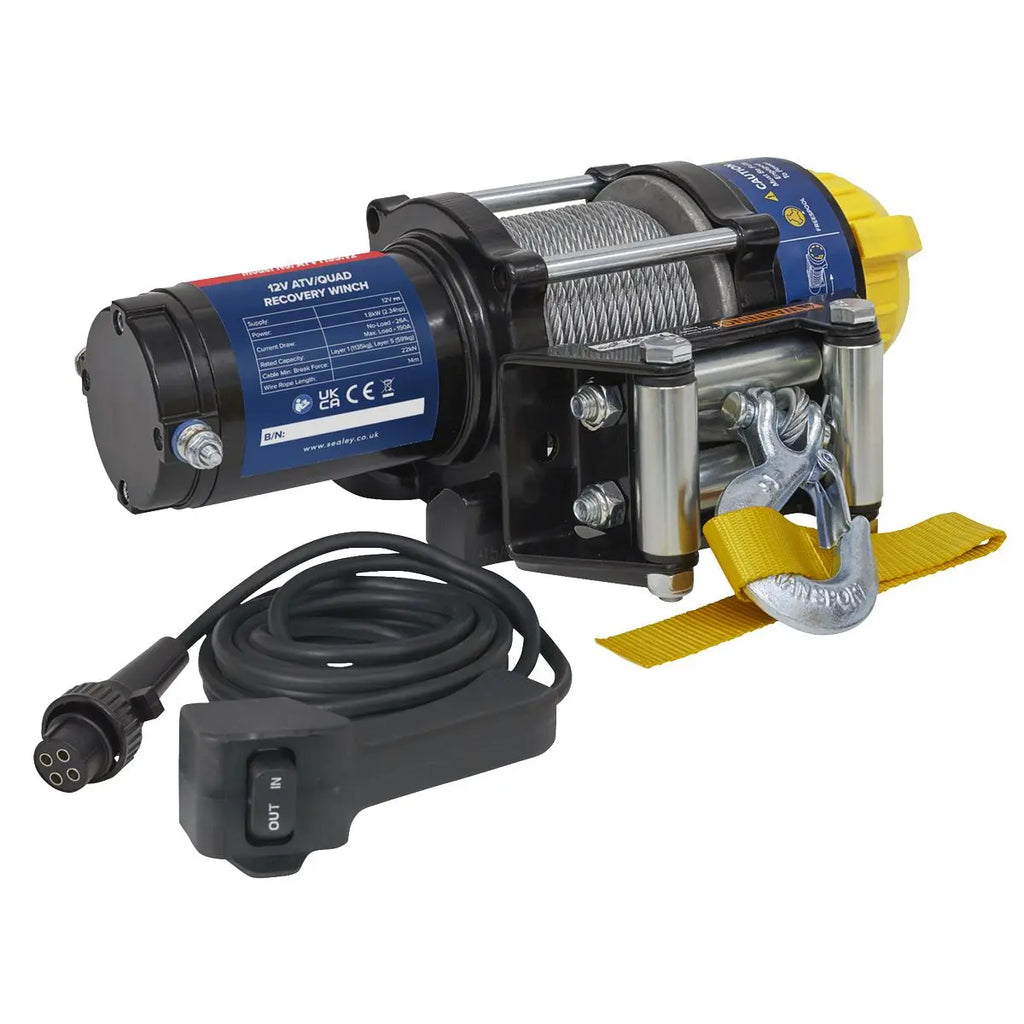

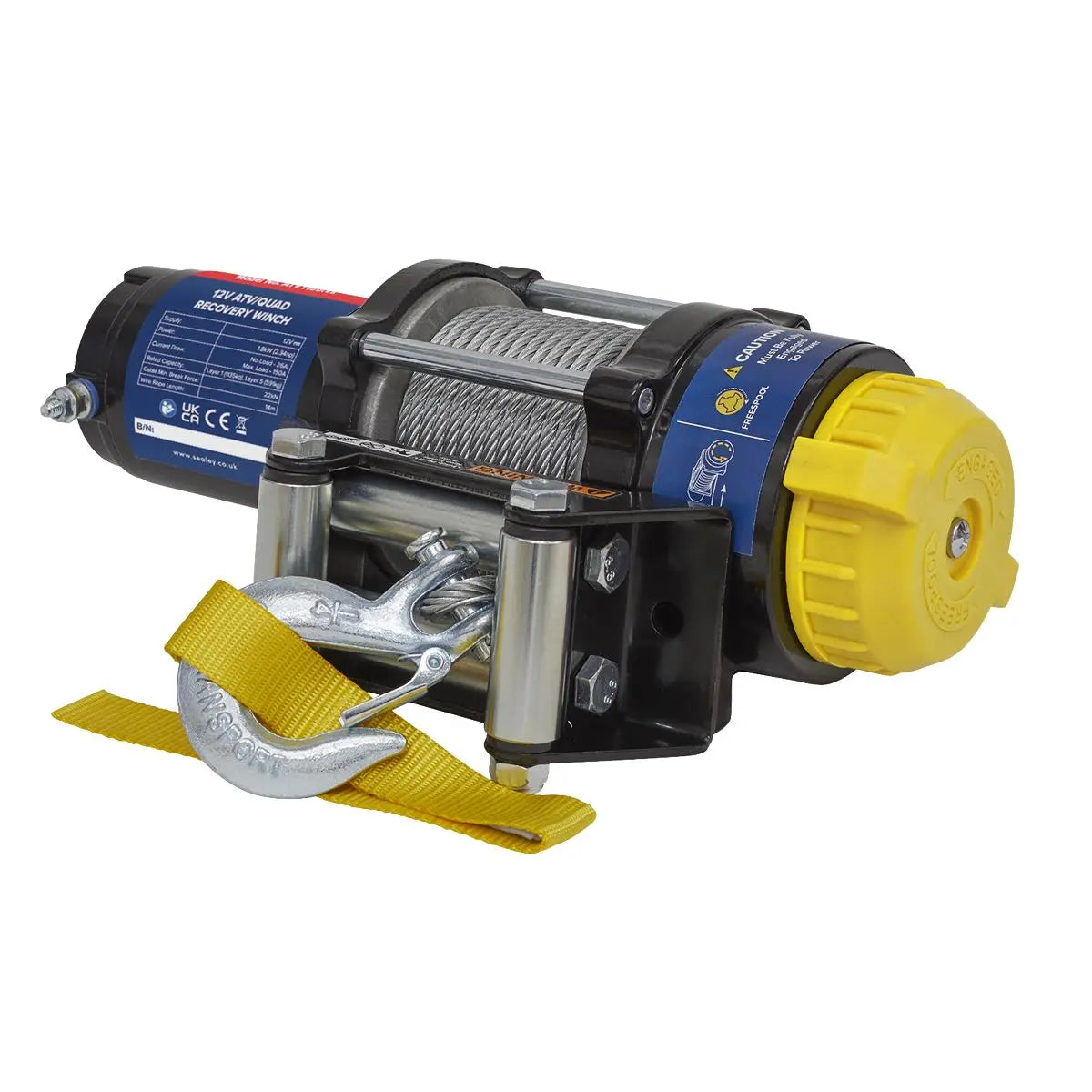

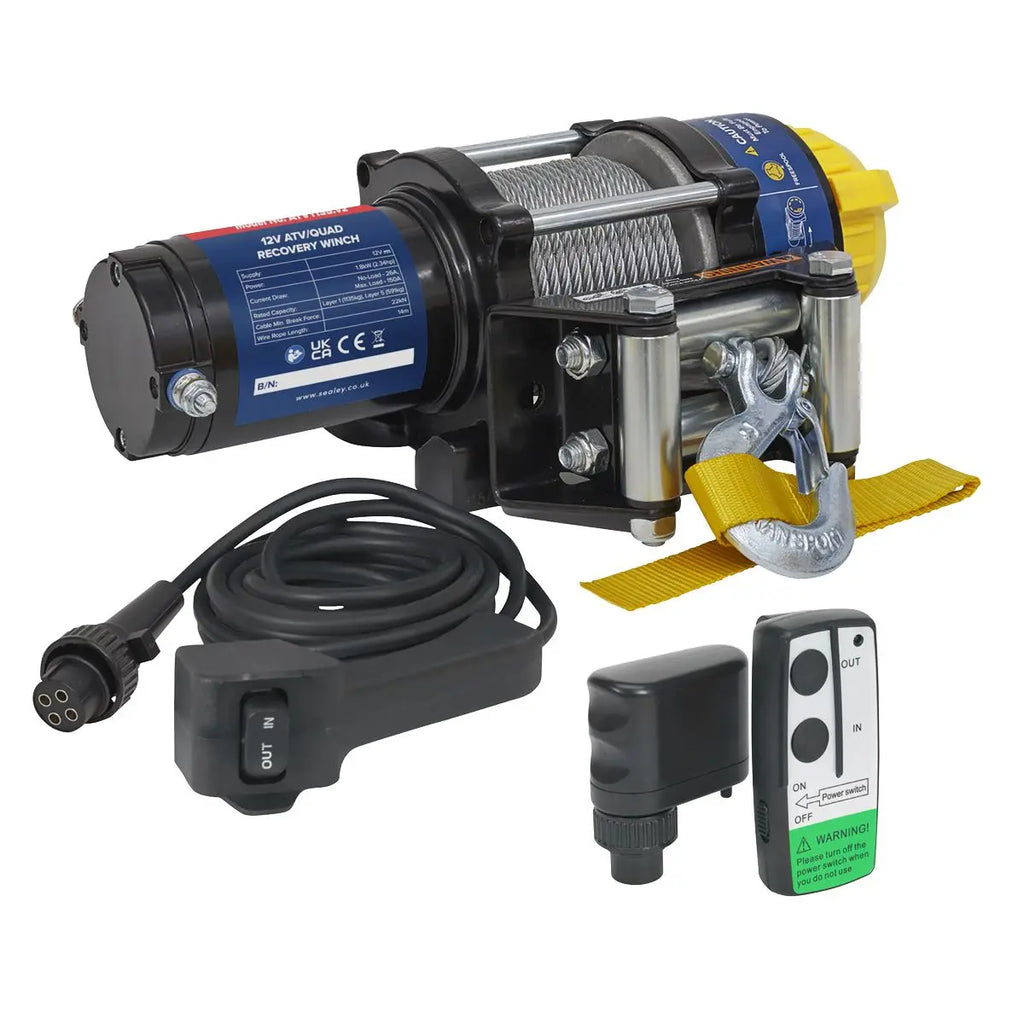

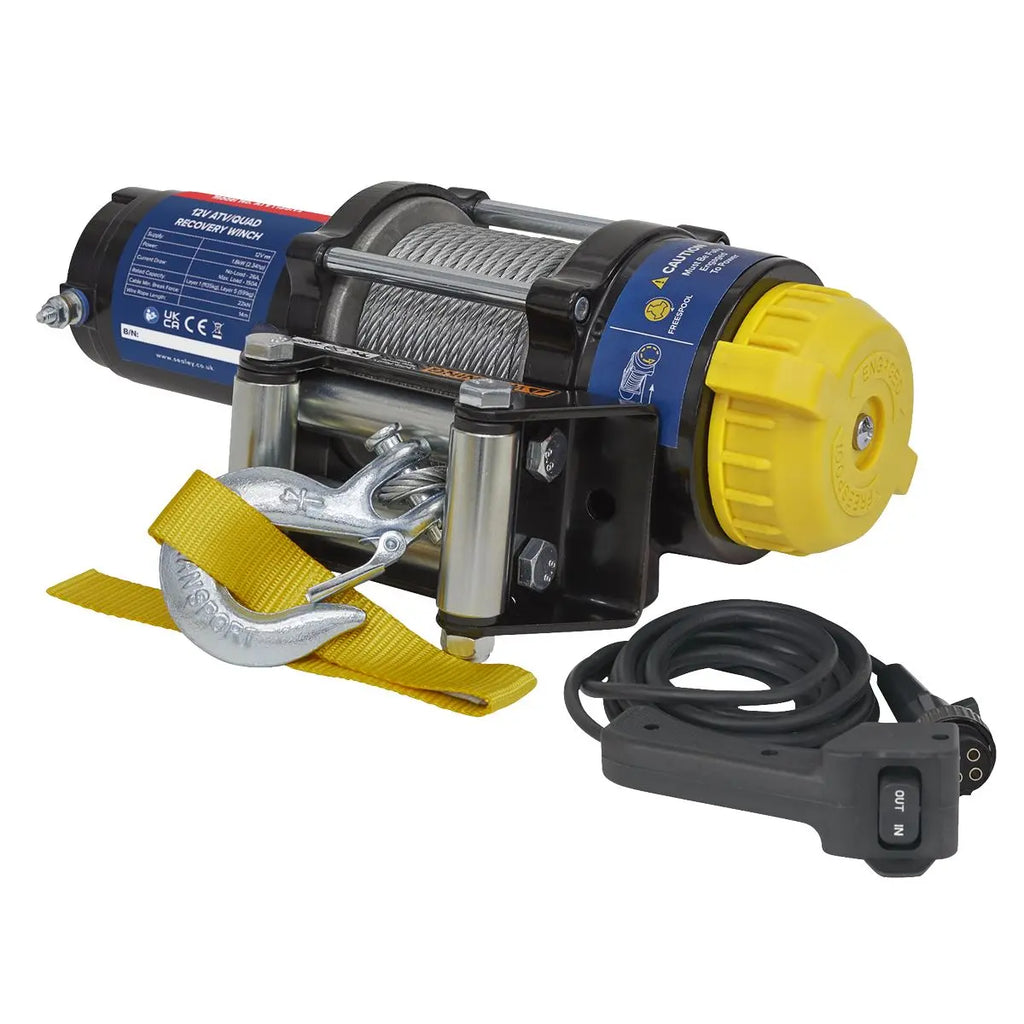

Sealey Wireless Winch ATV1135 Combo

Sealey Wireless Winch ATV1135 Combo

FAST - Suitable for ATV and quad bike mounting, this high-speed winch offers a combination of performance and durability.

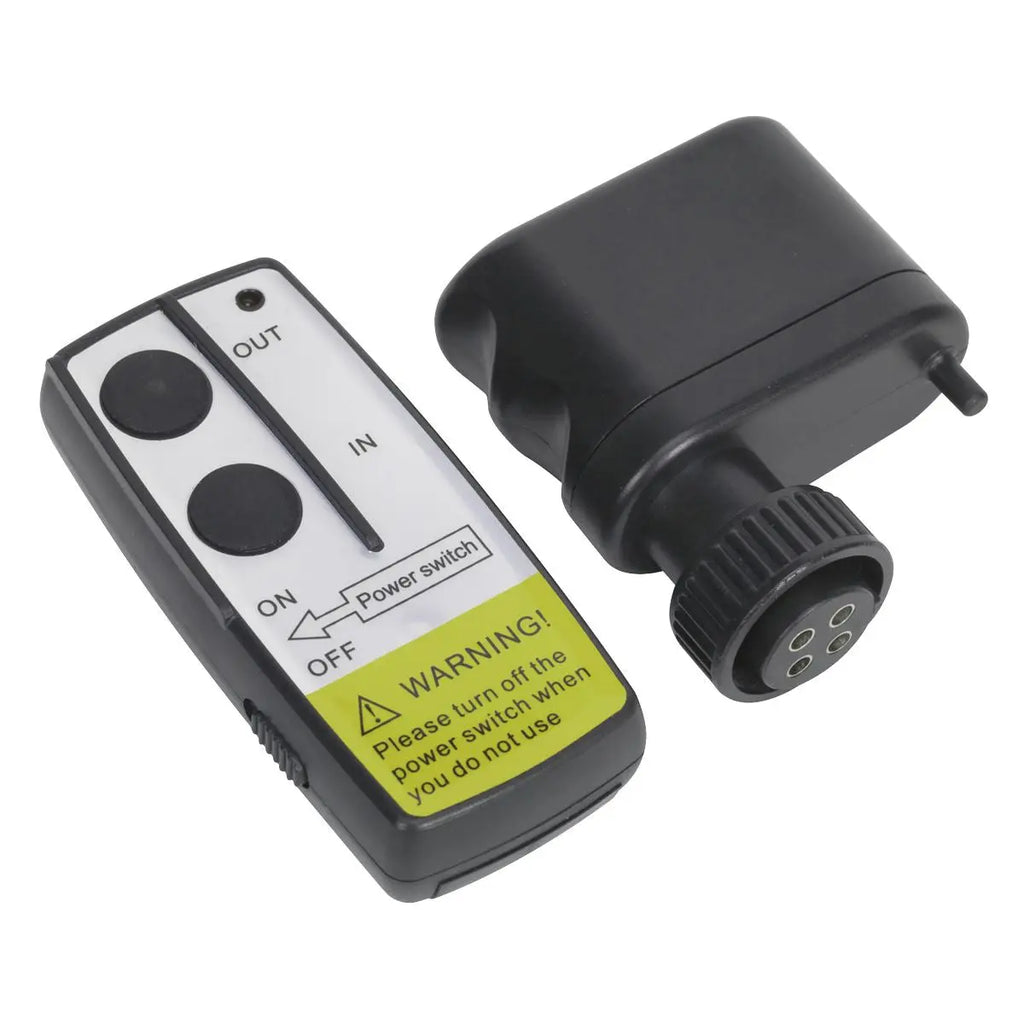

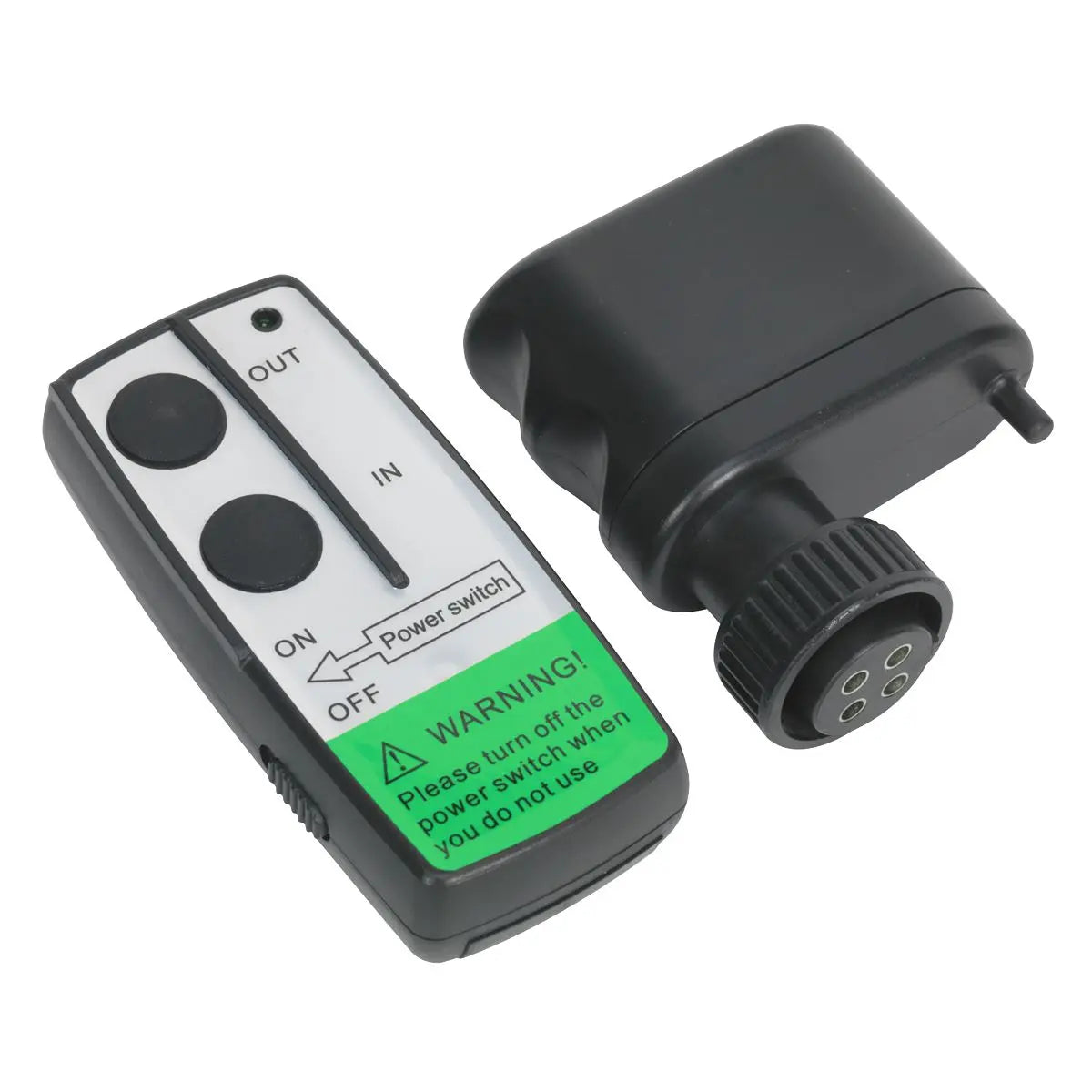

UNIVERSAL - Wireless remote control has a 4-pin plug-and-play receiver that works with all makes of winch.

SAFE - Allows the operator to stand well clear or sit in the cab (provided no restrictions).

STRONG - High quality wire rope feeds through 4-way roller fairlead.

3 Year Guarantee*.

Specification:

• Model No ATV1135KIT
• Brand: Sealey
• Cable Minimum Brake Force: 22kN
• Consumable Parts: ATV1135.WR - Wire Rope (Ø4.8mm x 15.2m) for ATV1135, ATV1135.DR - Dyneema Rope (Ø4.9mm x 15.2m) for ATV1135
• Current Draw: No-Load - 26A, Maximum Load - 150A
• Gear Ratio: 180:1
• Line Pull*: 1135kg(2500lb)
• Line Speed*: No-Load - 4.8m/min, Maximum Load - 1.6m/min
• Motor Power: 1.8kW(2.34hp)
• Nett Weight: 11.9kg
• Note: *Performance quoted at first layer of cable on drum
• Rated Capacity: Layer 1: 1135kg, Layer 5: 591kg
• Supply: 12V

Product Guarantee: 3 Years
Catalogue Page: Page 1366

Downloadable Files:

• Material Safety Data Sheet: View Here
